¶ BPI-2K3000 industrial computer
The Banana Pi BPI-2K3000 industrial computer development platform is a high-performance embedded industrial computer developed based on Loongson’s latest generation 2K3000 (3B6000M) processor to meet the diverse needs of different customers for high-performance Xinchuang (indigenous innovation) embedded computers.
The BPI-2K3000 can be applied in enterprise office work, personal microcomputers, high-performance industrial computers, as well as in fields such as education, healthcare, finance, and edge computing. It has advantages such as high-performance computing, portability, low energy consumption, and easy management.
¶ Design principles
-
1,Design a full - function COM - E (Type 6) core board based on the 2K3000 processor, covering all resources of the processor. This can avoid the workload of cutting and redesigning the core board due to changes in requirements, and enhance its versatility and reliability.
-
2,In conjunction with the core board, simultaneously design a typical industrial control motherboard that can be widely used in the industrial control field. It features multiple IO interfaces, high reliability, and strong anti - interference ability. As an overall industrial control hardware product, it can be immediately applied on - site when paired with third - party application software.
-
3,Simultaneously transplant and adapt the mature industrial software of Jiskeda Company to form a product integrating hardware and software.
¶ Application scenarios
-
Industrial Control and Automation: PLC, Industrial Gateways, Industrial Controllers, HMI/SCADA
-
Energy and Power: Substation Automation Equipment, Wind/PV/Energy Storage Controllers, Microgrid Coordination Controllers
-
Education and Training: Education and Practical Training for Majors such as Information Technology Innovation + Industrial Internet/Artificial Intelligence/Automatic Control/Computer
-
Edge Computing and IoT: Edge Servers, Intelligent Video Analysis, Local AI Inference, Robot Control
-
Communication and Network Equipment: Routers, Small Edge Servers, Virtualization Equipment, NAS Storage
-
Medical Electronics: CT, MRI
-
Aerospace and Defense: Flight Control/Satellite/Bullet-Borne Computers, Radar Signal Processing Computers
¶ getting started
¶ Hardware
¶ PCBA Hardware interface

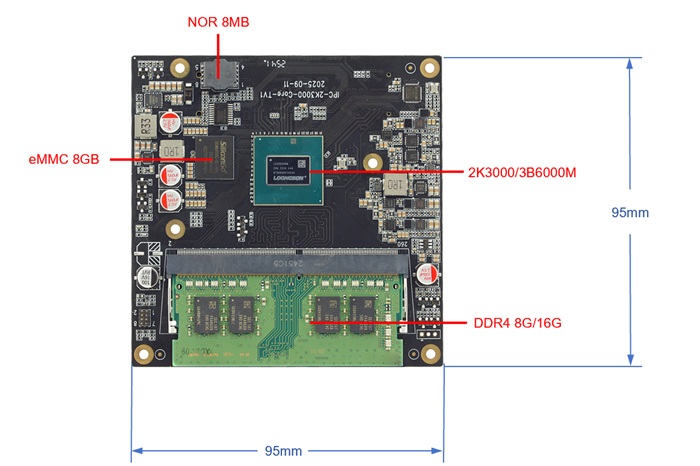

¶ Core board
¶ Core Features
-
Full-featured core board: COM-E Type standard, with 440 pins leading out all signals and strong expansion capability.
-
Multi-functional industrial-grade backplane: Multiple communication and interaction interfaces with full industrial-grade (EMC level 3 - 4) protection.
-
Powerful AI capabilities: In addition to the AI computing power by the processor, various AI computing power cards can be on-board (M.2) connected.
-
Rich supporting software: Supports a series of industrial control software, has a good development environment, and can be easily adapted to more applications.
-
100% domestic localization rate: A 100% domestic component solution can be selected.
-

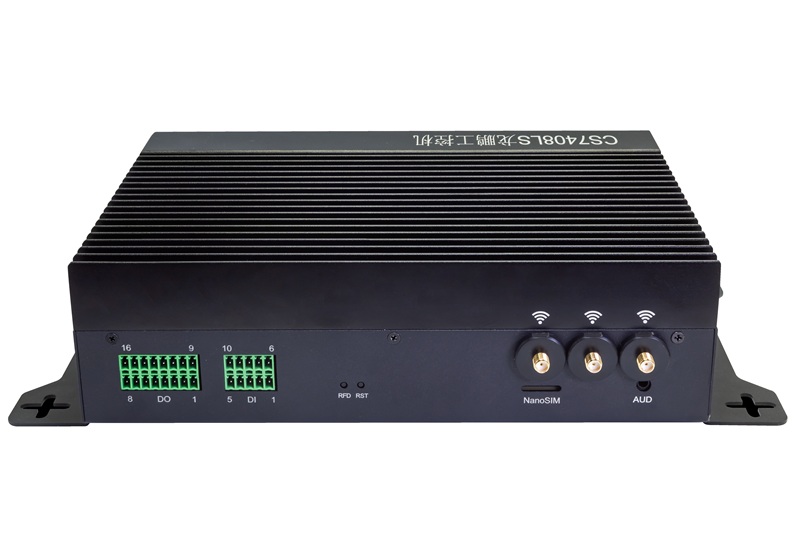

Multiple product forms: Desktop, wall-mounted, rack-mounted, and desktop industrial control chassis/all-in-one machines with high heat dissipation.
¶ Core board spec
| BPI-2K3000 Core board hardware spec | |
|---|---|
CPU |
CPU：龙芯2K3000、3B6000M |
System：default is Loongnix 20.7，Support Kirin and UOS |
|
RAM |
Type：Single-channel 64-bit DDR4-3200 SO-DIMM slot |
8GB，support 16GB/32GB |
|
Flash |
8MB SPI Flash，Startup boot configuration, default UEFI startup |
16MB SE SPI Flash：Built-in security module to achieve trusted computing, supporting SM2/3/4 algorithms (SMT is not applied by default). |
|
Hardisk |
8GB，support 128GB |
GPU |
Loongson’s self-developed second generation LG200，support OpenGL3.3、OpenCL 1.1。support AI，7.2TOPS (INT8) |
VPU |
support VVC/AV1/HEVC/VP9/AVS2.0/High10H264/H.264/VP8/VC1 decode 4K@60fps |
support MPEG-2&MPEG-1/VP7/H.263/RV8/RV9/RV10 decode 1080P@60fps |
|
Display |
1x HDMI，Max support 4K 60Hz |
1xDP，Max support 4K 60Hz |
|
1xeDP，Max support 4K 60Hz |
|
Voice |
HDA/I2S Voice interface，support 16、18、20 bit sampling accuracy, with a maximum sampling frequency of 192KHz. |
Network |
1 x 1000M GMAC |
1 x 1000M PHY,The YT8531 Gigabit Ethernet PHY chip is integrated on the board. |
|
PCIE |
PCIE0：PCIE3.0x4 Support splitting into 4 paths.PCIE3.0x1， can significantly RapidIO |
PCIE1：PCIE3.0x4 Support splitting into 4 paths.PCIE3.0x1， can significantly RapidIO |
|
SATA |
1xSATA3.0，6Gbps，Shared with 1-way USB 3.0 interface |
USB2.0 |
max support 8 x USB2.0 HOST，Among them, 4 USB 2.0 ports can form a full-featured USB 3 interface with USB 3.1. |
USB3.0 |
max support 4xUSB3.1 Gen1(5Gbps)，One USB 3 interface can be multiplexed as SATA 3.0. |
LPC |
1 x LPC1.1 interface |
SPI |
By default, 1 SPI channel is reserved. It supports a maximum of 2 channels and reserves 3 chip select signals |
I2C |
1 x I2C |
UART |
By default, 2 channels of UART are reserved, including the CPU debugging serial port. |
CAN |
By default, 4 channels of CANFD are reserved, and 3 of them are multiplexed with SD card signals. |
SDIO |
Reserve 2 channels of SDIO 3.0. SDIO0 is multiplexed with CANFD, and SDIO1 is multiplexed with SPI1. |
PWM |
3 channels are reserved by default. |
GPIO |
Several, please refer to the specific definition. |
Size |
95mm x 95mm，The pinout sequence refers to the PICMG COM Express, which is compatible with the COMe Type 6 standard. |
Encapsulate |
BTB connector，220pin + 220pin |
DC |
DC12V、DC5V input |
Typical power |
35W（TDP） |
Operating temperature |
-40~85℃ |

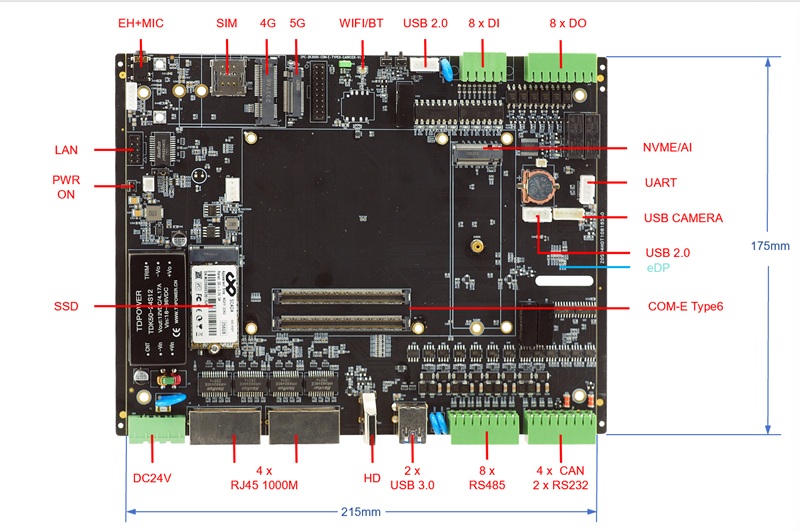

¶ Base board
¶ Base board hardware spec
| BPI-2K3000 Base board hardware spec | |
|---|---|
Interface of base board and core board |
COM-E/Type6 interface，BTB connect |
Network |
4+1 Gigabit independent IP network ports, 4 external RJ45 ports and 1 internal 9P pin header. |
Display |
HDMI+eDP double。eDP inside，Can form an all-in-one machine configuration. |
USB |
2 x USB3.0（outside，TypeA） |
2 x USB2.0（inside，4P slot） |
|
RS232 |
2 x RS232，With isolation，one is Console，3.81mm Phoenix terminal |
RS485 |
8 x RS485，With isolation，3.81mm Phoenix terminal |
CAN |
4 x CAN FD，With isolation，3.81mm Phoenix terminal |
DI |
8 x DI，With isolation，Passive input, detection voltage 24V，3.81mm Phoenix terminal |
DO |
8 x DO，Relay output，6x400mA+2x2A，3.81mm Phoenix terminal |
SSD |
1 x SATA，M.2/2242/SATA protocol |
1 x NVME，M.2/2280/NVME protocol，PCIE X4，Support AI computing power cards |
|
Wireless communication |
1 x MPCIE，support 4G/RedCap Module，USB2.0，Share the SIM card with 5G. |
1 x M.2/3050，support 5G/4G module，USB3.0/2.0，Share the SIM card with 4G. |
|
1 x Wifi/BT，2.4G |
|
CAMERA |
USB2.0+UART，Support binocular camera module |
TOUCH |
1 x USB2.0，Built-in, combined with eDP to form a touch all-in-one machine. |
Encryption chip |
1 x Special for State Grid power distribution |
1 x Dedicated to software authorization (dongle) |
|
RTC |
1 x SD3068 |
AUDIO |
1 x EarPhone+Mic |
Power |
DC 24V，5.08mm Phoenix terminal 3P |
Power consumption |
TBD，theoretical value< 40W |
Size |
215mm x 175mm |
System |
Loongnix 20.7 |
kylin V10/V11 |
|
UOS |
|
HarmonyOS and OpenEuler are being adapted… |
|
