¶ Overview

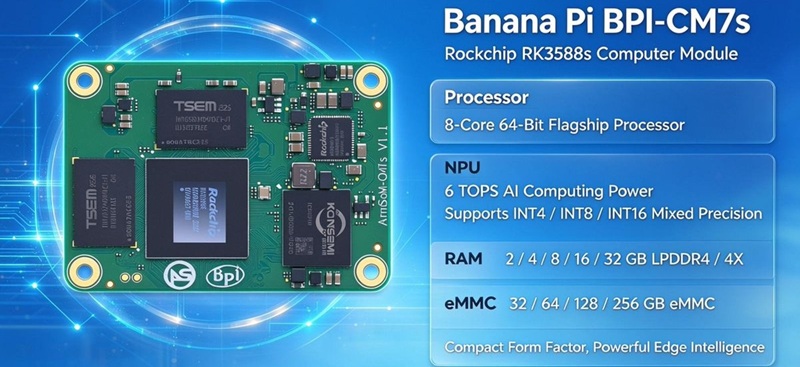

CM7s Core Board: compact in size, powerful in performance, built specifically for deep embedded scenarios. The board comes with the Rockchip RK3588S 8-core 64-bit flagship processor (4×Cortex-A76 @ 2.4GHz + 4×Cortex-A55 @ 1.8GHz), built on an advanced 8nm process, offering great computing power and excellent energy efficiency. It features an ARM Mali-G610 high-performance GPU, fully compatible with OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.2 graphics APIs. It also has a powerful 6 TOPS NPU, supporting INT4/INT8/INT16 mixed-precision computing, easily handling edge AI inference.
The module offers a variety of bus and expansion interfaces, supports eMMC flash memory of different capacities, and can be widely used in industrial IoT, edge computing, and smart devices.
¶ Key Specifications
-
SOC：Rockchip RK3588S (8nm LP process)
-
CPU：8-core 64-bit（4×[email protected] + 4×[email protected]）
-
GPU：ARM Mali-G610 3D GPU，supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan 1.2
-
NPU：6 TOPS computing power, supports mixed INT4/INT8/INT16 operations
-
RAM：2/4/8/16/32GB LPDDR4/4X
-
eMMC：32/64/128/256GB eMMC
-
interface：On-board 3×100-pin connector (DF40C-100DP-04V), supports multiplexed buses and control pins like Type-C/DP1.4, HDMI 2.1/eDP1.3, MIPI DPHY/CSI, USB 3.0/2.0, SATA III/PCIe 2.0, SDIO 3.0/RGMII, SDMMC, and I2C/I2S/UART/SPI/CAN/PWM/GPIO.
-
Power supply：Input DC 5V (MAX 2500mA); Output DC 3.3V/1.8V (MAX 600mA)
-
Size：55 x 40 x 1.6 mm
-
Input：DC 5V MAX 2500mA
-
Output：DC 3.3V MAX 600mA 和 DC 1.8V MAX 600mA
-
PCB size：55 x 40 x 1.6 mm (L x W x H)
¶ Getting started
¶ Hardware

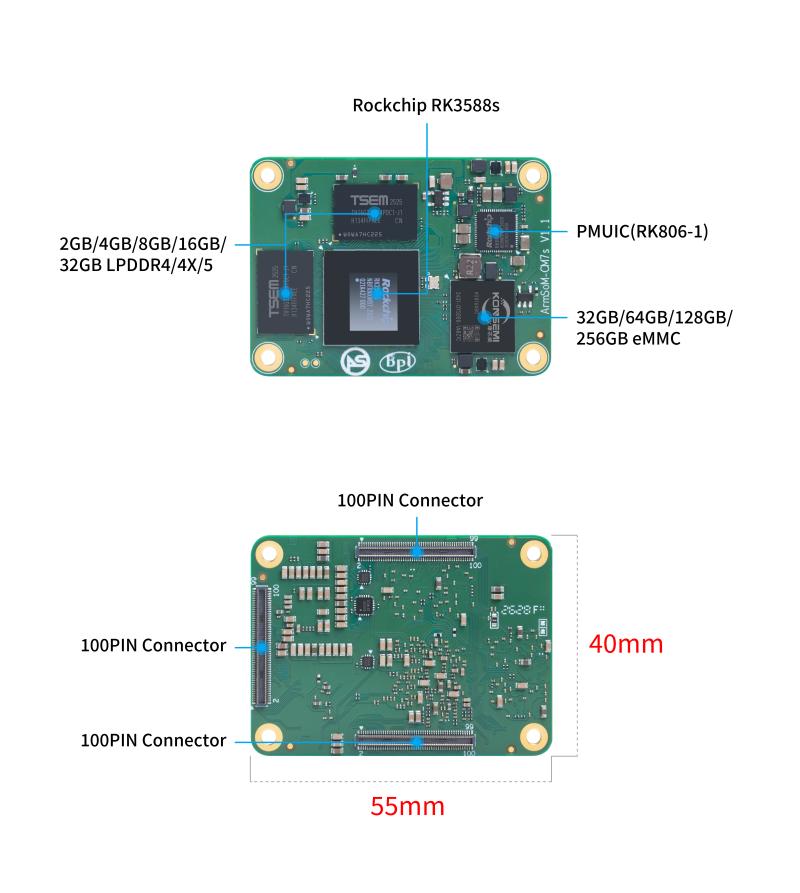

¶ Hardware Interface
¶ Hardware Spec
¶ Hardware Spec
| HardWare Specification of Banana Pi BPI-CM7s | |
|---|---|
Item |
Function |
CPU |
RK3588S SoC Quad-core ARM Cortex-A76 & Quad-coreCortex-A55 |
GPU |
ARM Mali-G610 MP4 GPU ARM Mali-G610 MP4 quad-core GPU, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.1/1.2, with a computing power of 450 GFLOPS |
NPU |
6 TOPS@INT8 |
Supports INT4，INT8，INT16，FP16 Mixed operations |
|
Supports deep learning frameworks:TensorFlow、PyTorch、Caffe,etc. |
|
VPU/Codec |
Hardware decoding:Supports 8K@60fps (H.265/VP9/AVS2)、8K@30fps (H.264)、4K@60fps (AV1)。 |
Hard coding:8K@30fps (H.265/H.264)，Supports simultaneous editing and decoding |
|
ISP |
Integrated 48MP ISP, supports HDR and 3DNR |
RAM |
4GB/8GB/16GB 32GB LPDDR4/LPDDR4x/LPDDR5，default is LPDDR5 8GB |
Flash |
32GB/64GB/128GB eMMC，default is eMMC 64GB |
Supports MicroSD card expansion |
|
M.2 M-KEY Socket：PCIe2.1 NVMe SSD |
|
Display |
1x HDMI OUT 2.1, supports 8K@60Hz or 4K@120Hz 2x MIPI DSI with a maximum resolution of 4K@60Hz |
1x DP1.4, supports up to 8K@30Hz |
|
Camera |
2x 4-lane MIPI CSI, up to 2.5Gbps per lane |
Supports up to three MIPI camera inputs |
|
Network |
1x GMAC, providing RGMII/RMII interface output |
onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5.3 syn43752 |
|
PCIe |
2x PCIe 2.0 1-lans |
USB |
3x USB 3.0 |
2x USB 2.0 Host |
|
1x USB 2.0 OTG |
|
1× Type-C (USB 3.1) |
|
Audio |
SPDIF_Tx x2 |
I2S x4 |
|
PDM x2 |
|
¶ BPI-CM7s core board pin definitions
BPI-CM7s core board pin definitions
| Banana pi BPI-CM7s PIN Out define | |||
|---|---|---|---|
Function |
PIN |
PIN |
Function |
CN1 100PIN |
|||
GND |
1 |
2 |
GND |
NC |
3 |
4 |
NC |
NC |
5 |
6 |
NC |
GND |
7 |
8 |
GND |
NC |
9 |
10 |
NC |
NC |
11 |
12 |
NC |
GND |
13 |
14 |
GND |
NC |
15 |
16 |
NC |
NC |
17 |
18 |
NC |
NC |
19 |
20 |
NC |
GPIO4_A4 |
21 |
22 |
GND |
GND |
23 |
24 |
GPIO1_C0 |
GPIO1_B0 |
25 |
26 |
GPIO1_C1 |
GPIO1_B1 |
27 |
28 |
GPIO1_A2 |
GPIO1_B2 |
29 |
30 |
GPIO1_A3 |
GPIO1_B3 |
31 |
32 |
GND |
GND |
33 |
34 |
GPIO1_A4 |
GPIO1_D6 |
35 |
36 |
GPIO1_D7 |
GPIO1_B4 |
37 |
38 |
GPIO1_A5 |
GPIO1_B5 |
39 |
40 |
GPIO1_A6 |
GPIO1_B6 |
41 |
42 |
GND |
GND |
43 |
44 |
GPIO1_A7 |
GPIO1_B7 |
45 |
46 |
GPIO1_C4 |
GPIO0_C2 |
47 |
48 |
GPIO1_C6 |
GPIO1_D5 |
49 |
50 |
GPIO1_D0 |
UART2_RX_M0 |
51 |
52 |
GND |
GND |
53 |
54 |
GPIO1_D1 |
UART2_TX_M0 |
55 |
56 |
GPIO1_D2 |
SDMMC_CLK |
57 |
58 |
GPIO1_D3 |
GND |
59 |
60 |
GND |
SDMMC_D3 |
61 |
62 |
SDMMC_CMD |
SDMMC_D0 |
63 |
64 |
NC |
GND |
65 |
66 |
GND |
SDMMC_D1 |
67 |
68 |
SARADC_IN1 |
SDMMC_D2 |
69 |
70 |
NC |
GND |
71 |
72 |
NC |
NC |
73 |
74 |
GND |
SDMMC_PWREN |
75 |
76 |
GPIO0_A4 |
VBUS(4.75V-5.25V) |
77 |
78 |
GPIO_VREF(3.3V GPIO or 1.8V) |
VBUS(4.75V-5.25V) |
79 |
80 |
I2C6_SCL_M3 |
VBUS(4.75V-5.25V) |
81 |
82 |
I2C6_SDA_M3 |
VBUS(4.75V-5.25V) |
83 |
84 |
VCC_3V3_S3 |
VBUS(4.75V-5.25V) |
85 |
86 |
VCC_3V3_S3 |
VBUS(4.75V-5.25V) |
87 |
88 |
VCC_1V8_S3 |
NC |
89 |
90 |
VCC_1V8_S3 |
NC |
91 |
92 |
PMIC_RESET_L |
SARADC_IN0 |
93 |
94 |
SARADC_IN3 |
GPIO4_B6 |
95 |
96 |
SARADC_IN2 |
GPIO4_A7 |
97 |
98 |
GND |
PWRON_L |
99 |
100 |
GPIO4_A5 |
CN2 100PIN |
|||
TYPEC0_USB20_OTG_ID |
1 |
2 |
GPIO1_A0 |
TYPEC0_USB20_OTG_DM |
3 |
4 |
GPIO1_A1 |
TYPEC0_USB20_OTG_DP |
5 |
6 |
GPIO4_A6 |
GND |
7 |
8 |
GND |
GPIO4_A2 |
9 |
10 |
PCIE20_2_REFCLKP |
NC |
11 |
12 |
PCIE20_2_REFCLKN |
GND |
13 |
14 |
GND |
MIPI_CSI0_D0N |
15 |
16 |
PCIE20_2_RXP/ SATA30_2_RXP |
MIPI_CSI0_D0P |
17 |
18 |
PCIE20_2_RXN/ SATA30_2_RXN |
GND |
19 |
20 |
GND |
MIPI_CSI0_D1N |
21 |
22 |
PCIE20_2_TXP/ SATA30_2_TXP |
MIPI_CSI0_D1P |
23 |
24 |
PCIE20_2_TXN/ SATA30_2_TXN |
GND |
25 |
26 |
GND |
MIPI_CSI0_CLK0N |
27 |
28 |
MIPI_DPHY0_RX_D0N |
MIPI_CSI0_CLK0P |
29 |
30 |
MIPI_DPHY0_RX_D0P |
GND |
31 |
32 |
GND |
MIPI_CSI0_D2N |
33 |
34 |
MIPI_DPHY0_RX_D1N |
MIPI_CSI0_D2P |
35 |
36 |
MIPI_DPHY0_RX_D1P |
GND |
37 |
38 |
GND |
MIPI_CSI0_D3N |
39 |
40 |
MIPI_DPHY0_RX_CLKN |
MIPI_CSI0_D3P |
41 |
42 |
MIPI_DPHY0_RX_CLKP |
NC |
43 |
44 |
GND |
MIPI_CSI0_CLK1N |
45 |
46 |
NC |
MIPI_CSI0_CLK1P |
47 |
48 |
NC |
GPIO4_B5 |
49 |
50 |
GND |
HDMI_TX0_CEC_M0 |
51 |
52 |
NC |
HDMI_TX0_SBDN |
53 |
54 |
NC |
GND |
55 |
56 |
GND |
MIPI_DPHY0_TX_D0N |
57 |
58 |
HDMI_TX0_SBDP |
MIPI_DPHY0_TX_D0P |
59 |
60 |
NC |
GND |
61 |
62 |
GND |
MIPI_DPHY0_TX_D1N |
63 |
64 |
NC |
MIPI_DPHY0_TX_D1P |
65 |
66 |
NC |
GND |
67 |
68 |
GND |
MIPI_DPHY0_TX_CLKN |
69 |
70 |
HDMI_TX0_D2P |
MIPI_DPHY0_TX_CLKP |
71 |
72 |
HDMI_TX0_D2N |
GND |
73 |
74 |
GND |
MIPI_DPHY1_TX_D0N |
75 |
76 |
HDMI_TX0_D1P |
MIPI_DPHY1_TX_D0P |
77 |
78 |
HDMI_TX0_D1N |
GND |
79 |
80 |
GND |
MIPI_DPHY1_TX_D1N |
81 |
82 |
HDMI_TX0_D0P |
MIPI_DPHY1_TX_D1P |
83 |
84 |
HDMI_TX0_D0N |
GND |
85 |
86 |
GND |
MIPI_DPHY1_TX_CLKN |
87 |
88 |
HDMI_TX0_D3P |
MIPI_DPHY1_TX_CLKP |
89 |
90 |
HDMI_TX0_D3N |
GND |
91 |
92 |
GND |
MIPI_DPHY1_TX_D2N |
93 |
94 |
MIPI_DPHY1_TX_D3N |
MIPI_DPHY1_TX_D2P |
95 |
96 |
MIPI_DPHY1_TX_D3P |
GND |
97 |
98 |
GND |
HDMI_TX0_SDA_M0 |
99 |
100 |
HDMI_TX0_SCL_M0 |
CN3 100PIN |
|||
USB20_HOST1_DP |
1 |
2 |
TYPEC0_SSTX2P |
USB20_HOST1_DM |
3 |
4 |
TYPEC0_SSTX2N |
GND |
5 |
6 |
GND |
TYPEC0_SBU1 |
7 |
8 |
TYPEC0_SSRX2P |
TYPEC0_SBU2 |
9 |
10 |
TYPEC0_SSRX2N |
GND |
11 |
12 |
GND |
USB20_HOST0_DP |
13 |
14 |
TYPEC0_SSTX1N |
USB20_HOST0_DM |
15 |
16 |
TYPEC0_SSTX1P |
GND |
17 |
18 |
GND |
TYPEC0_SSRX1N |
19 |
20 |
GPIO3_C6 |
TYPEC0_SSRX1P |
21 |
22 |
GPIO3_C7 |
GND |
23 |
24 |
GPIO3_D1 |
MIPI_DPHY1_RX_CLKP |
25 |
26 |
GPIO3_D5 |
MIPI_DPHY1_RX_CLKN |
27 |
28 |
GPIO3_D2 |
GND |
29 |
30 |
GPIO3_D4 |
MIPI_DPHY1_RX_D1P |
31 |
32 |
GND |
MIPI_DPHY1_RX_D1N |
33 |
34 |
GPIO3_B7 |
GND |
35 |
36 |
GPIO3_C5 |
MIPI_DPHY1_RX_D0P |
37 |
38 |
GPIO3_C4 |
MIPI_DPHY1_RX_D0N |
39 |
40 |
GPIO3_D3 |
GND |
41 |
42 |
GPIO3_A1 |
GPIO3_D0 |
43 |
44 |
GND |
GND |
45 |
46 |
GPIO3_B3 |
GPIO3_A0 |
47 |
48 |
GPIO3_B2 |
GPIO3_B4 |
49 |
50 |
GPIO3_C1 |
GPIO3_B5 |
51 |
52 |
GPIO3_A6 |
GPIO3_C3 |
53 |
54 |
GND |
GND |
55 |
56 |
GPIO3_B0 |
GPIO3_B6 |
57 |
58 |
GPIO3_A5 |
GPIO3_B1 |
59 |
60 |
GPIO3_A7 |
GPIO3_A2 |
61 |
62 |
GPIO3_A4 |
GPIO3_A3 |
63 |
64 |
GND |
GND |
65 |
66 |
GPIO0_B0 |
GPIO0_A0 |
67 |
68 |
I2S0_MCLK |
I2S0_LRCK |
69 |
70 |
I2S0_SDO0 |
I2S0_SCLK |
71 |
72 |
GPIO3_C0 |
I2S0_SDI0 |
73 |
74 |
GND |
GND |
75 |
76 |
PCIE20_0_REFCLKP |
GPIO0_D5 |
77 |
78 |
PCIE20_0_REFCLKN |
GPIO0_C7 |
79 |
80 |
GND |
GPIO0_D4 |
81 |
82 |
PCIE20_0_TXP |
GPIO0_C4 |
83 |
84 |
PCIE20_0_TXN |
GPIO0_D3 |
85 |
86 |
GND |
GND |
87 |
88 |
PCIE20_0_RXN |
GPIO0_D0 |
89 |
90 |
PCIE20_0_RXP |
GPIO3_C2 |
91 |
92 |
GND |
GPIO4_A3 |
93 |
94 |
GPIO0_C5 |
GPIO4_B3 |
95 |
96 |
GPIO0_B2 |
GPIO4_B2 |
97 |
98 |
GPIO0_C6 |
GND |
99 |
100 |
GND |
¶ Development
¶ Source code
¶ Resources
¶ Hardware Resources
| BPI-CM7s Schematic diagram and tag diagram |
Baidu cloud： https://pan.baidu.com/s/1e7xsL6j02QiXEcFLkwm-Ug?pwd=8888 code: 8888
| BPI-CM7s DXF file |
Baidu: https://pan.baidu.com/s/110AAzE2xo60vPaBtV3QXrA?pwd=8888 code: 8888
