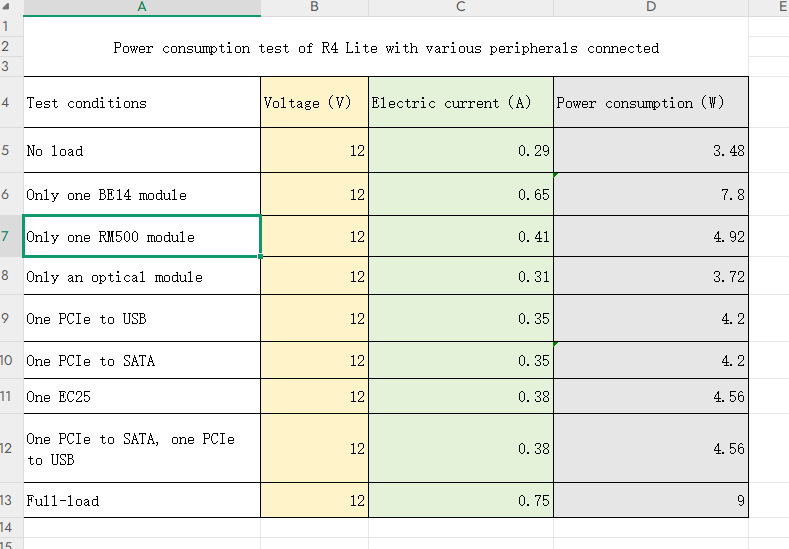

¶ Power consumption
¶ Temperature testing with the housing installed.

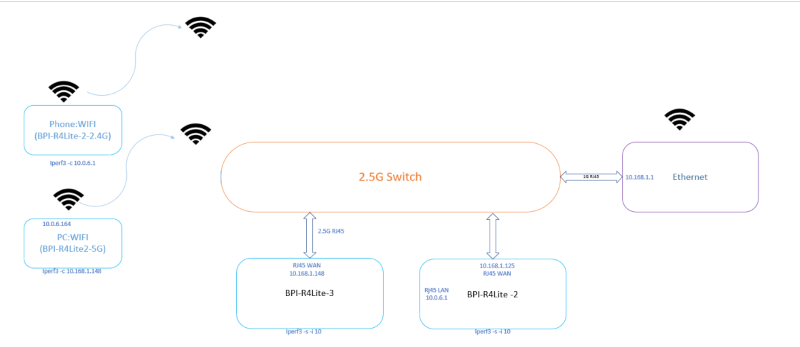

Traffic Test Diagram

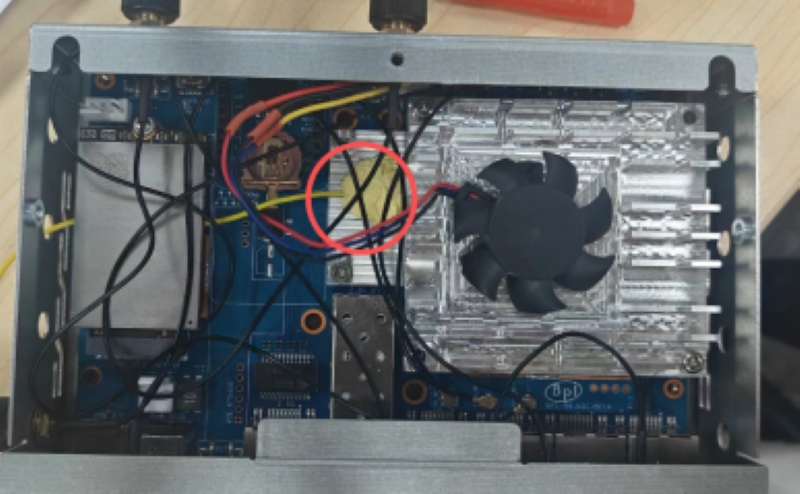

Test Location (with the SOC master control chip located below)

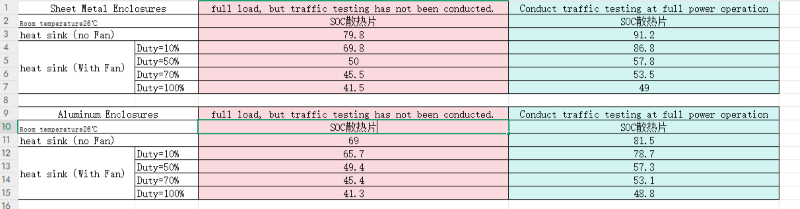

Comparison of Test Results Between Sheet Metal Enclosure and Aluminum Enclosure
Under identical conditions, the aluminum enclosure provides a heat dissipation effect approximately 4-5 degrees Celsius lower than that of the sheet metal enclosure.
¶ How to assemble the casing for R4 Lite

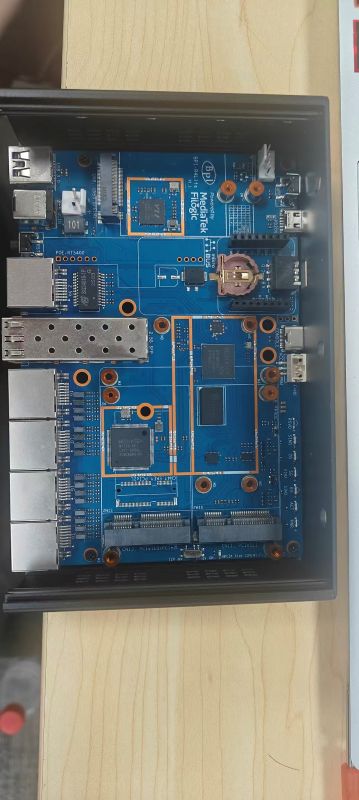

First, secure the PCB board to the housing using the four mounting holes.

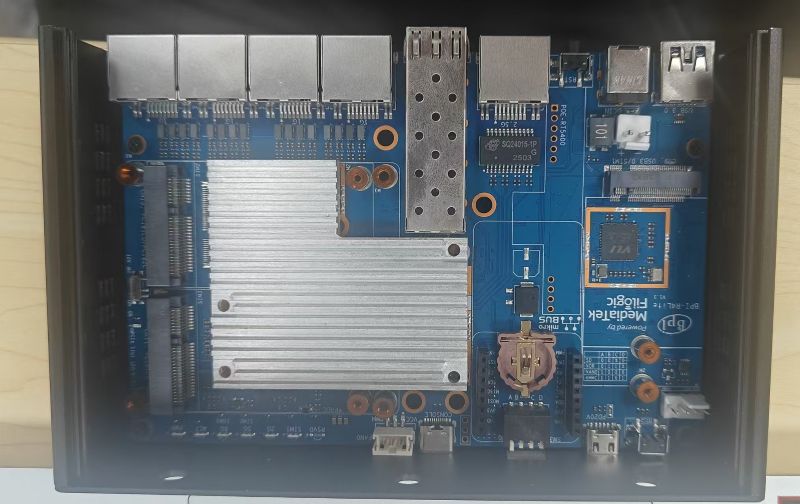

Fasten the heat sink with screws as shown in the diagram.

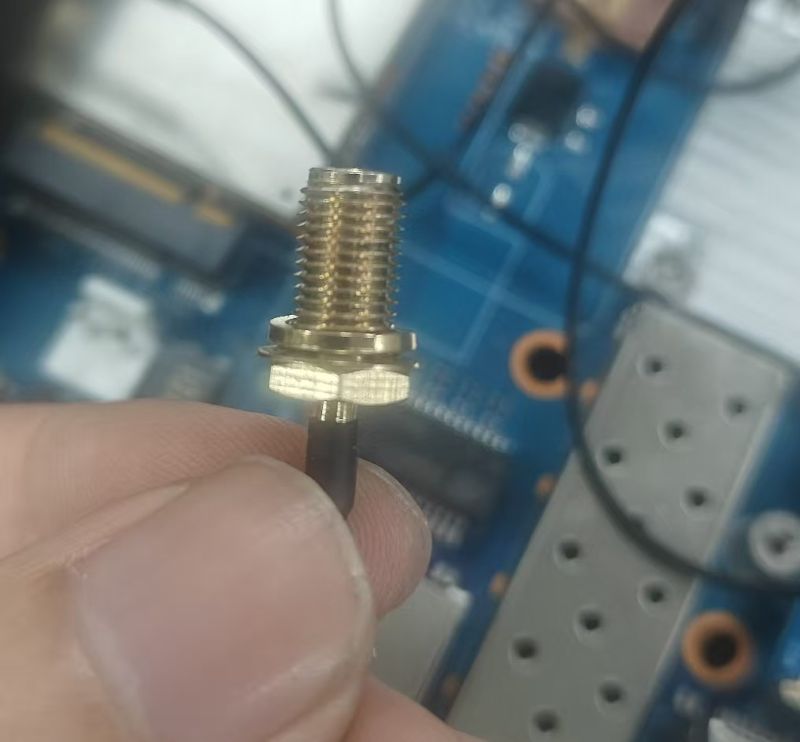

Align and insert it into the SMA port as illustrated

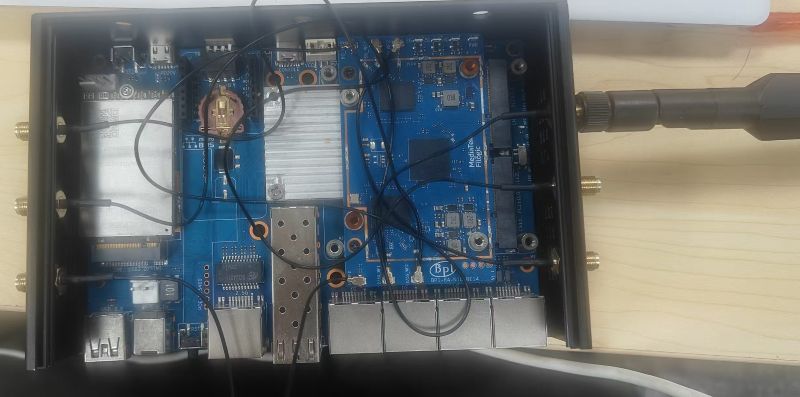

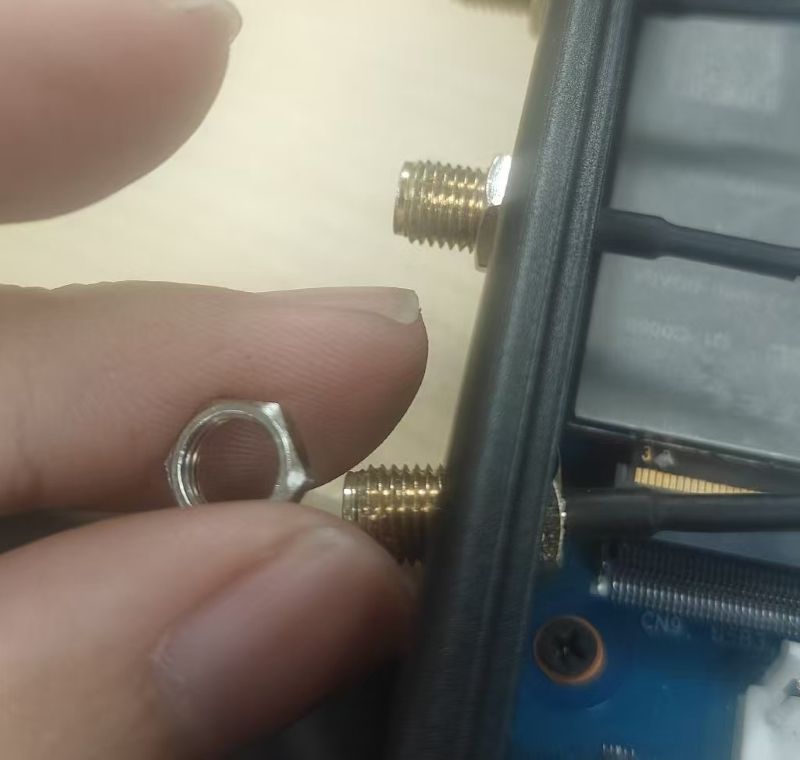

Tighten the SMA connector and attach the antenna

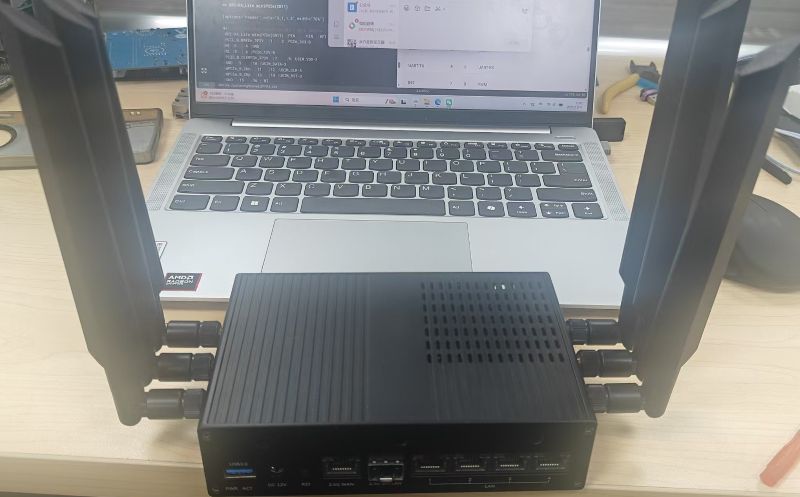

The final installation should appear as shown in the figure
