¶ Overview

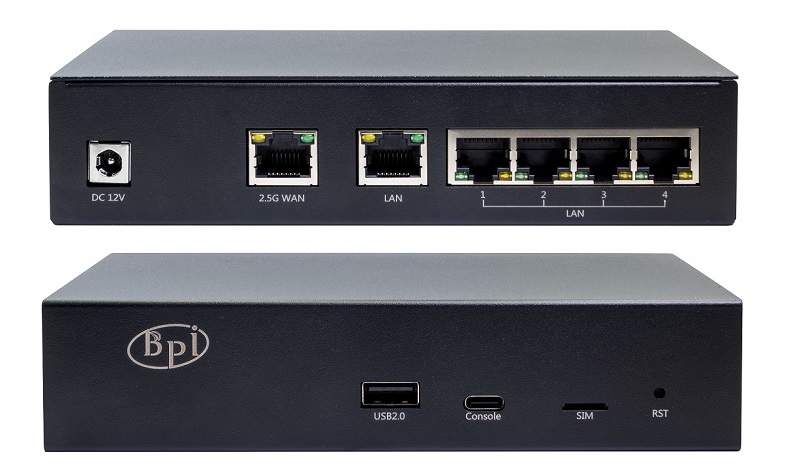

Banana Pi BPI-RV2 open source gateway is a device based on Siflowe SF2H8898 SoC, 1 × 2.5G WAN network interface, 5 Gigabit LAN network interface, onboard 512MB DDR3 memory, 128 MiB NAND, 16 MiB NOR, M.2 interface, MINI PCIE and USB 2.0 interface, etc.
Banana Pi BPI-RV2 open source gateway is a collaboration between Silicon Chang and Banana Pi open source community (Banana Pi)
¶ SF2H8898 chip Brief
SF21H8898 is a high performance industrial-grade SOC gateway chip developed by Siflowe Communications. It adopts advanced TSMC 12nm FFC process and integrates four cores inside 64-bit RSIC-V processor and dedicated network processing accelerator (NPU) (supports L2/L3 hardware processing, IPv4/IPv6 dual stack, 20Gbps switching capacity, full byte wire-speed forwarding), network-side support for QSGMII, SGMII/HSGMII and RGMII interfaces. IEEE 1588 PTP functionality is supported for time synchronization. It supports external DDR3/DDR3L/DDR4 SDRAM and NAND/NOR SPI Flash. The high-speed interface is USB2.0, PCIE2.0, and the low-speed interface is SPI, UART, I2C, PWM, etc. It can be used as enterprise gateway and industrial control gateway.
Siflowe SF21H8898 chip diagram
Siflowe SF21H8898 chip typical application scenarios
¶ Key Features
-
Siflowe SF2H8898 4 core RISC-V processor
-
With Siflowe NPU, enterprise-class gateway level data forwarding processing capability can be achieved.
-
512MB DDR3 RAM
-
1 x 2.5GbE network and 5 x giga port
-
128 MB SPI NAND and 16 MB SPI NOR flash Ensure that the onboard system is indestructible，
-
M.2 2242/2230 interface support NVMe SSD (PCIe gen 2 x1)
-
RTC
-
PoE Network power support
¶ Getting started
¶ Hardware
¶ Hardware interface
¶ Hardware spec
| item | introduce |
|---|---|
SoC |
Siflowe SF2H8898 4 core RISC-V @ 1.25GHz |
RAM |
512MB DDR3 |
Storage |
128 MB SPI NAND Flash is used in U-boot and Linux systems |
16 MB SPI NOR flash，For U-boot and Linux systems, write protected by default (refresh can be enabled by jumper) |
|
M.2 2242 interface support NVMe SSD hardsik(PCIe gen 2 x1) |
|
Network |
1 x 2.5GbE RJ45 port |
5 x giga RJ45 port |
|
USB |
Use the USB Type-C (device, console) port of the UART to USB chip |
1x USB 2.0 Type-A USB HOST port |
|
PCIE |
M2 keyB， Supported Rates PCIe gen 2 x1，Can be used to connect SSD hard drives, 5G modules, etc |
MINI PCIE，Supported Rates PCIe gen 2 x1，Can be used to connect WiFi module, wired network card, etc |
|
Extension |
MikroBUS expansion module socket |
Debug |
Console connected via USB-C port or 3-pin connector |
RTC |
Support for on-board RTC real-time clock |
Others |
Reset and user buttons |
Boot choose：NAND（normal） Or NOR（Reset） |
|
(I2C interface) RTC，Backup battery holder with CR1220 button battery |
|
support add 802.3at/af PoE module |
|
Size |
148 x 100.5 mm |
