¶ BPI-AI2H Introduction
Banana Pi BPI-AI2H System-on-Module (SoM) and BPI-AI2H carrier board are open-source hardware solutions designed to leverage the advanced capabilities of the RZ/V2H Vision AI MPU. Designed with a flexible, community-driven ecosystem, the BPI-AI2H platform empowers developers to accelerate innovation and streamline application development. Powered by the RZ/V2H MPU, it delivers industry-leading AI acceleration of 15 TOPS (Sparse) and high-performance computing with 4x Arm® Cortex®-A55 processors, making it an ideal choice for creating cutting-edge vision AI solutions.
¶ Key Features
-

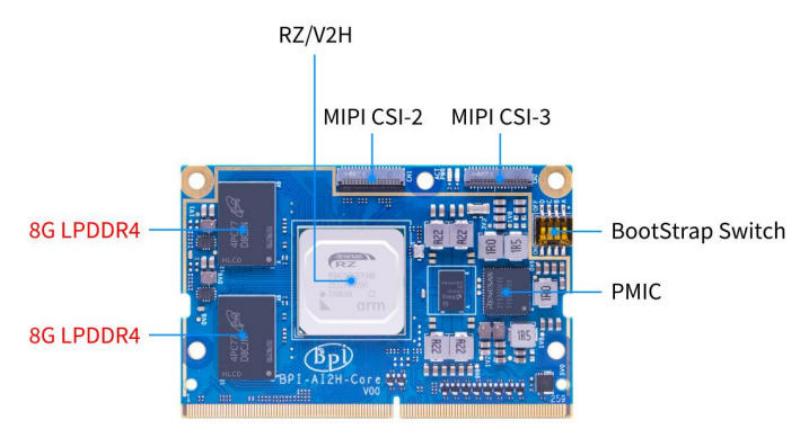

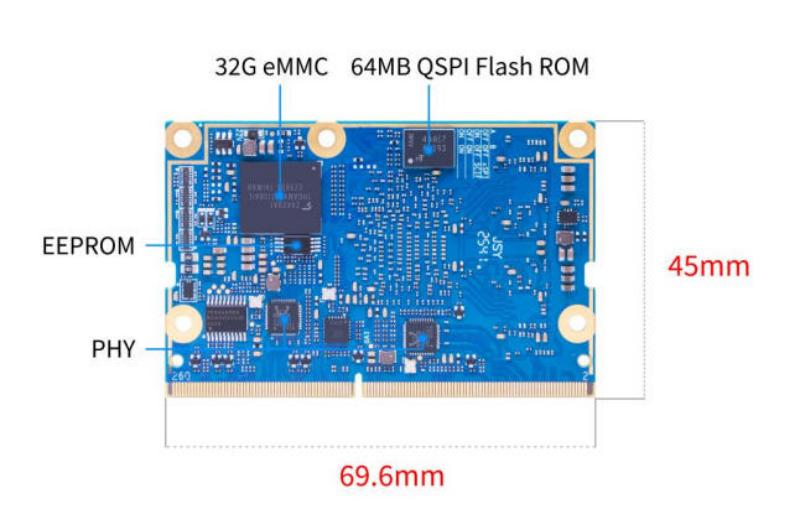

Small Form Factor: Compact SO-DIMM 260PINs design (SOM module size: 45x69.6mm)
-
Open-source development kit, including SOM, BPI-AI2H Carrier board and a rich ecosystem of tools and support from the Banana Pi developer community
-
Customizable hardware & software by OEM&ODM
-
Yocto and other open-source software support
-
Memory & storage: 8GB LPDDR4x, 32GB eMMC, 64MB QSPI Flash
-
Wide operating temperature range from -40℃ to 85℃
¶ Getting Started
¶ Resources
¶ Hardware
¶ Hardware spec
| HardWare Specification of BPI-AI2H | |
|---|---|
SoC |
RZ/V2H |
System Memory |
8GB LPDDR4X |
Storage |
64 MB SPI NAND flash |
32GB eMMC |
|
SD card Slot |
|
Button |
Sleep button |
Power button |
|
recovery button |
|
Networking |
2 x GbE RJ45 port |
USB |
2x USB 3.0 Type-A port |
1x USB2.0 Type-A On back |
|
1x USB3.0 Type-A On back |
|
DSI |
1x MIPI DSI |
CSI |
4x MIPI CSI |
FAN |
PH-3PIN Connector(5V FAN with PWM) |
Debugging |
USB TypeC Console |
M.2 KEY |
M.2 KEYM For SSD (2280) |
RTC |
support RTC onboard(CR1220) |
WiFi |
WiFi module on board |
GPIO |
40PIN GPIO |
Power Supply |
12V USB-PD on USB-C port |
DC12V IN |
|
Size |
79 x 100 mm compatible with BPI-AI2N |
