¶ BPI-RT2 Introduct
BPI-RT2 Router dual-band wireless router, 2.4G 2T2R, 5G 2T2R coexist at the same time. The use of four omni-directional high-gain antennas, with strong signal penetration and wider coverage, which makes the already strong signal more powerful, data transmission is also smoother. MU-MIMO multi-device transceiver technology has low latency and multiple devices are stably connected simultaneously, thus ensuring a good experience for multiple devices.
¶ Realtek RTL8189D
The Realtek RTL8198D is a highly integrated system-on-chip (SoC) designed for high-performance networking devices. It integrates a dual-core CPU, a hardware switching engine, multi-port Gigabit Ethernet PHY transceivers, and comprehensive network protocol processing acceleration functions, making it an ideal core solution for building enterprise-grade gateways, smart routers, and network switching equipment. The RTL8198D integrates four Gigabit Ethernet physical layer transceivers for 10Base-T, 100Base-TX, and 1000Base-TX, and two HSGMII interfaces to operate with an external phy
¶ Key Features
-
The RTL8198D Dual core MIPS interAptivTM CPU
-
256MB DDR3(embedded with the RTL8198D)
-
128MB SPI-NAND Flash
-
1 x 1 G RJ45 WAN
-
3 x 1 G RJ45 LAN
-
1x UART Debug
-
1x USB 3.0 slot
¶ Application direction
-
Gigabit enterprise gateways
-
VPN routers
-
smart Wi-Fi APs
-
network switching equipment
-
integrated access devices
-
other embedded systems requiring high-performance network processing and VoIP functionality.
¶ Getting Start
¶ Hardware

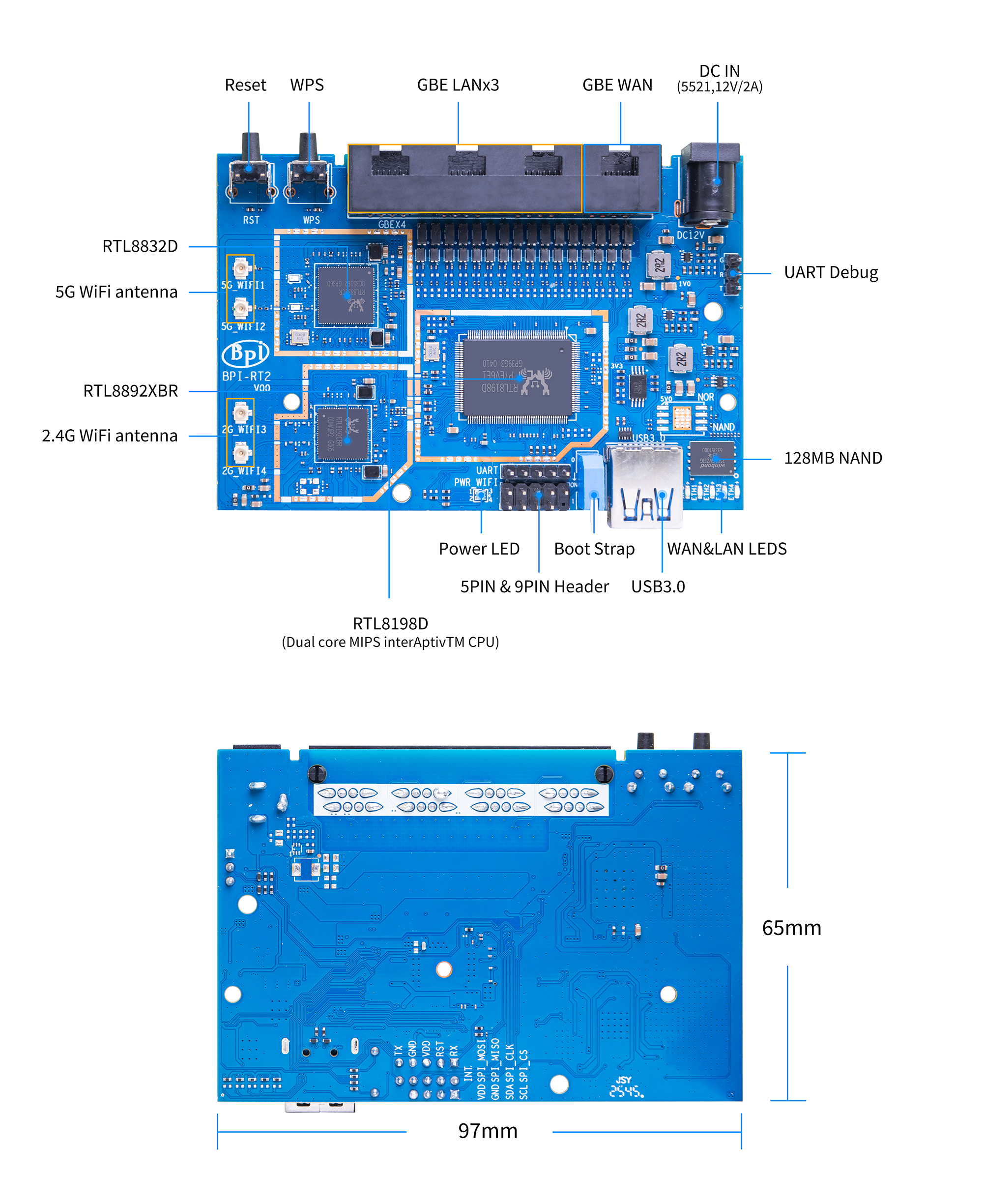

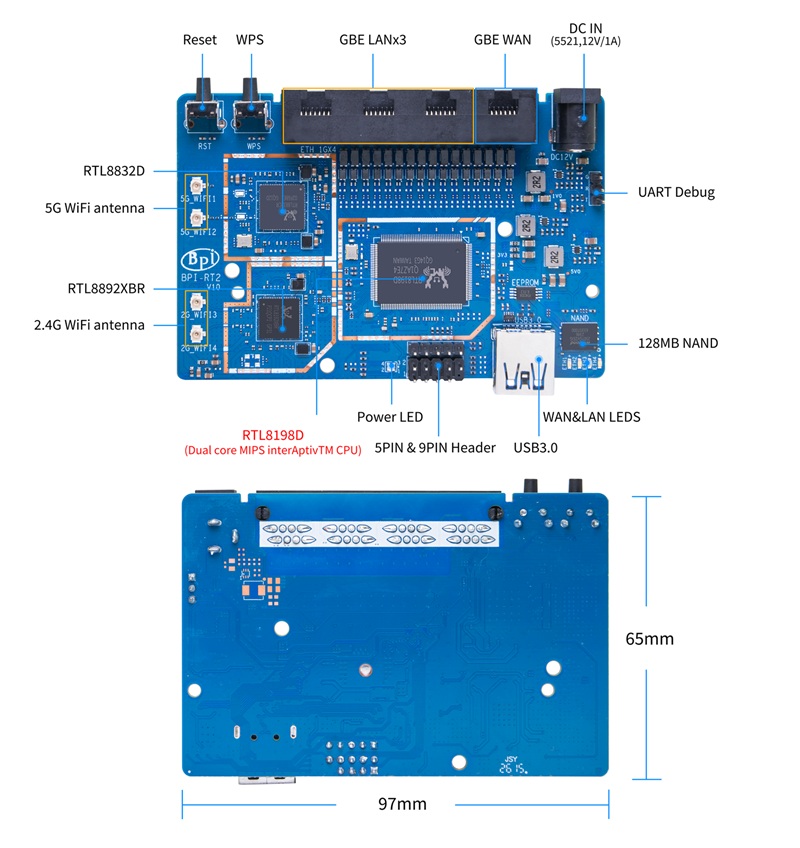

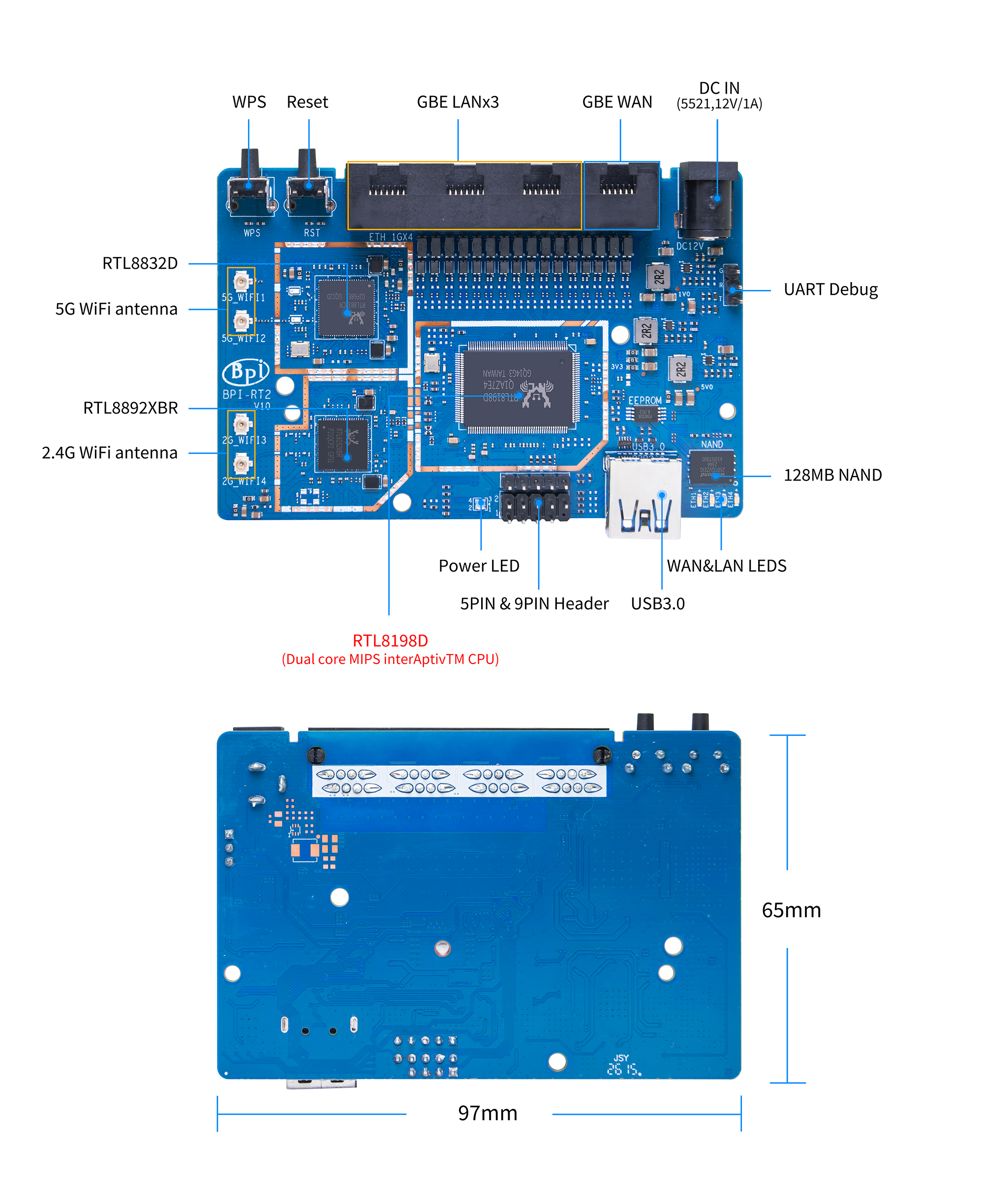

¶ Hardware Interface

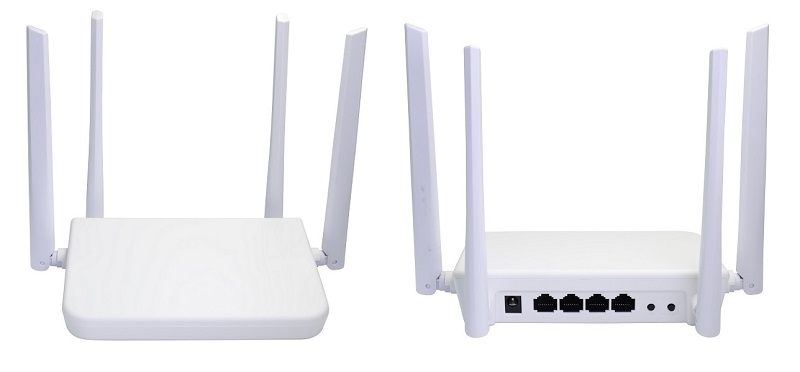

¶ BPI-RT2 Photo
¶ Hardware Spec
| HardWare Specification of Banana Pi BPI-RT2 | |
|---|---|
CPU |
RTL8198D Dual core MIPS interAptivTM CPU |
SDRAM |
256MB DDR3(embedded with the RTL8198D) |
On board Storage |
128MB SPI-NAND Flash |
On board Network |
4 Port 10/100/1000Mbps Ethernet |
Wifi 6 |
RTL8832 and RTL8192 Wifi6 support |
USB |
1x USB 3.0 TypeA |
Buttons |
Reset button,WPS Key, boot switch |
Leds |
Power status Led and RJ45 Led |
DC Power |
12V/2A |
Sizes |
97mm x 65mm |
Weight |
250g |
