¶ BPI-CM6 Introduction
Banana Pi BPI-CM6 is a industrial grade RISC-V Core board, it design with SpacemiT K1 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 8/16G DDR and 8/16/32/128G eMMC.,Designed with Board to Board connectors for enhanced stability same as Raspberry Pi CM4.
|
SpacemiT K1 RISC-V Banana Pi BPI-F3 AI SBC design SpacemiT K1 RISC-V Banana Pi BPI-CM6 AI Computer module design |
¶ About SpacemiT K1 8 core RISC-V chip
SpacemiT K1 is an octa-core 64-bit RISC-V AI CPU. Base on RISC-V open instruction set architecture,we are committed to create more energy efficient and more commonly used AI processor platform,promote global open source and open ecological computing power construction.
SpacemiT K1 is mainly used for single board computer,network storage,cloud computer,smart robort,industrial control,edge computer,etc.
¶ Key Features
-
SpacemiT K1(Octa-core 64-bit RISC-V AI CPU,integrates 2.0 TOPs AI computing power)
-
8GB LPDDR4(SOC Support up to 16GB)
-
16GB eMMC
-
1x SDIO WiFi/BT Module
-
1x Integrates RTL8211F PHY
-
5-lane PCIE2.1 expansion capability interfaces
-
1x USB 3.0 + 2x USB 2.0 interfaces
-
1x HDMI 1.4 interface
-
1x MIPI DSI interface
-
3x MIPI CSI interfaces
-
1x RGMII interface
-
10x UART serial interfaces
-
Dimension: 40x55MM
-
Operating temperature range: -40°C to 85°C
¶ Application direction
-
NAS
-
Laptop
-
Intelligent robotics
-
Industrial control
-
AI edge computing
-
Automation
¶ Getting Start
¶ Hardware

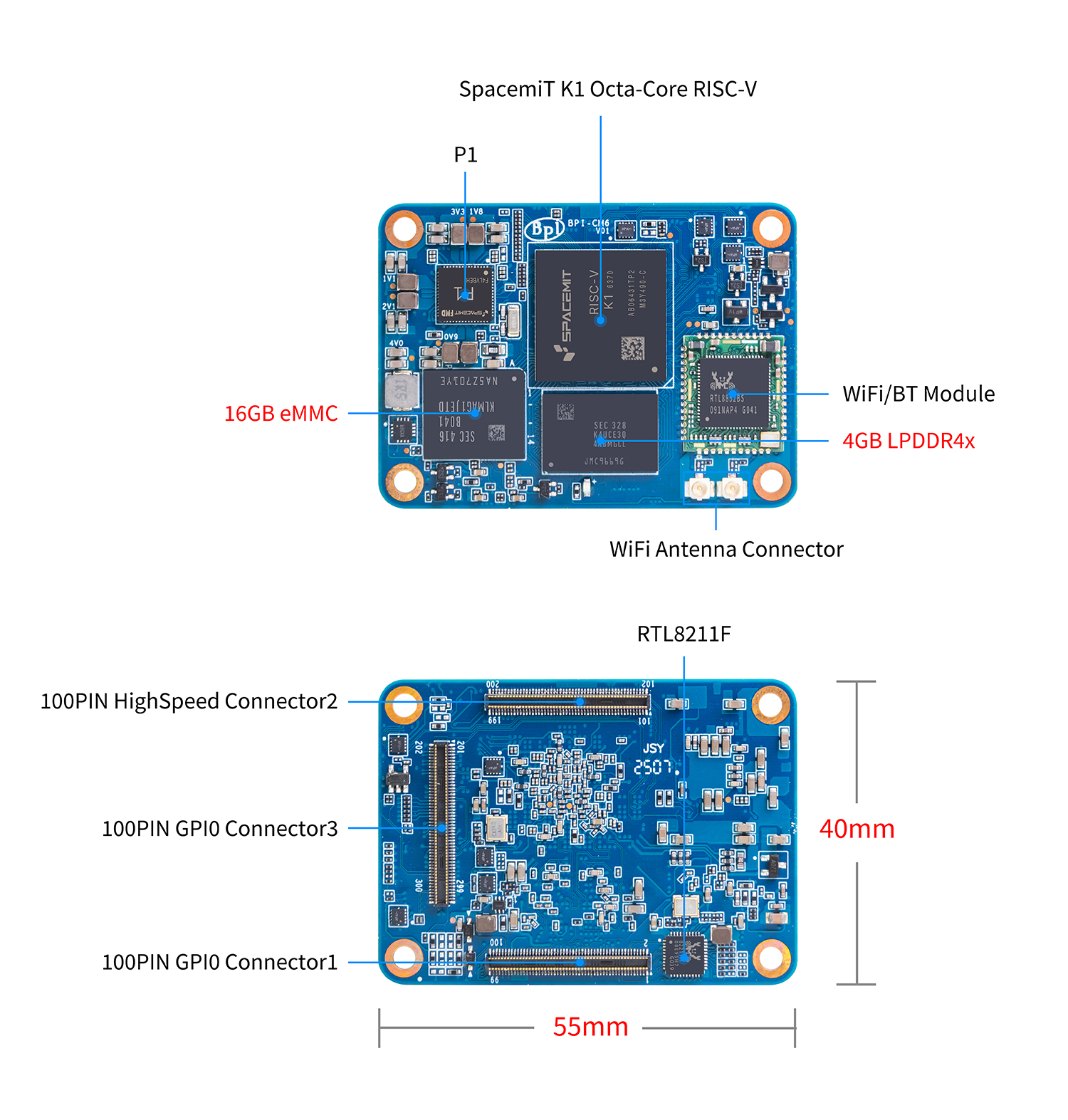

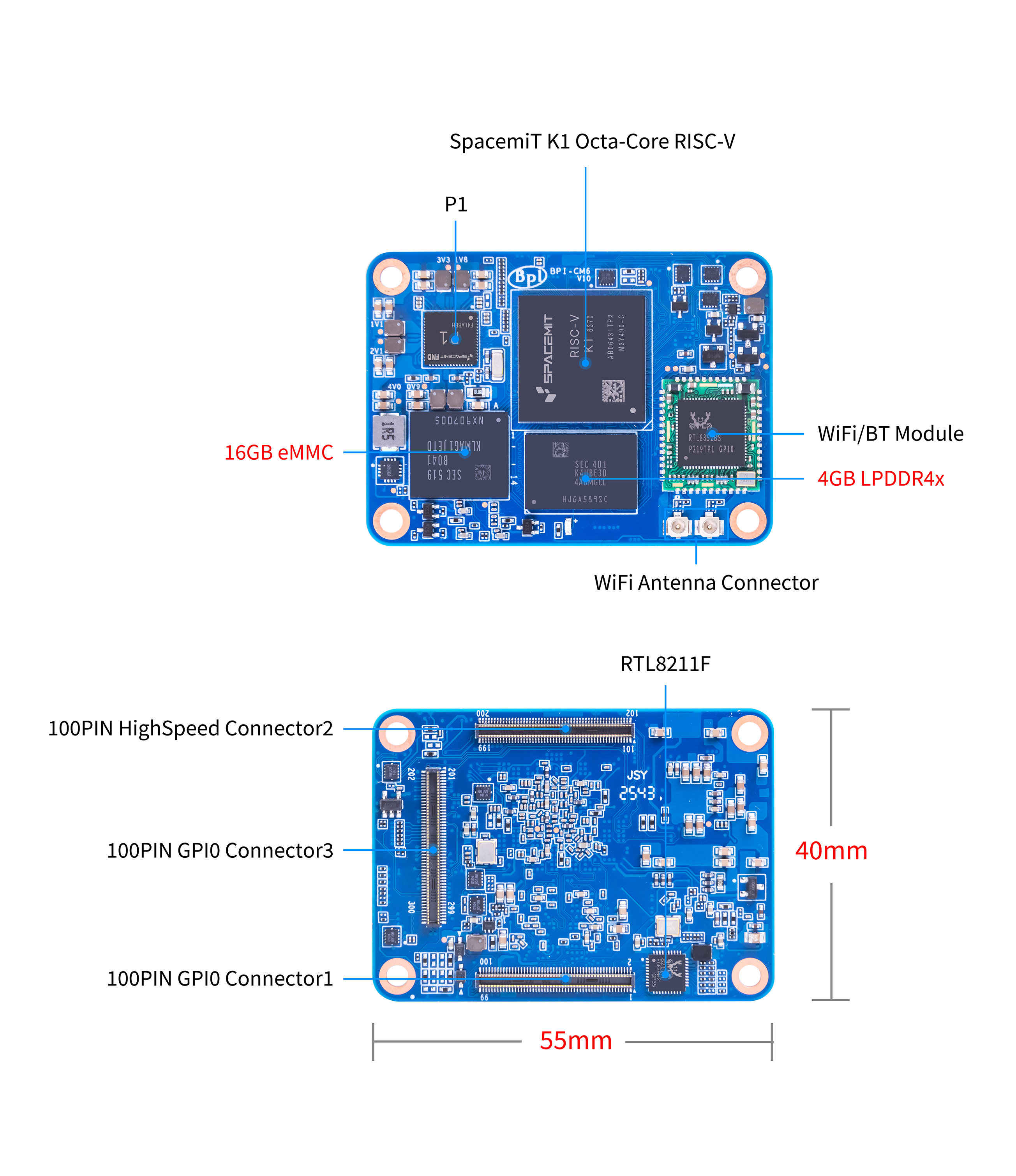

¶ Hardware Interface
¶ Hardware Spec
¶ BPI-CM6 Photo
¶ BPI-CM6 Block Diagram
¶ BPI-CM6 core board pin definitions

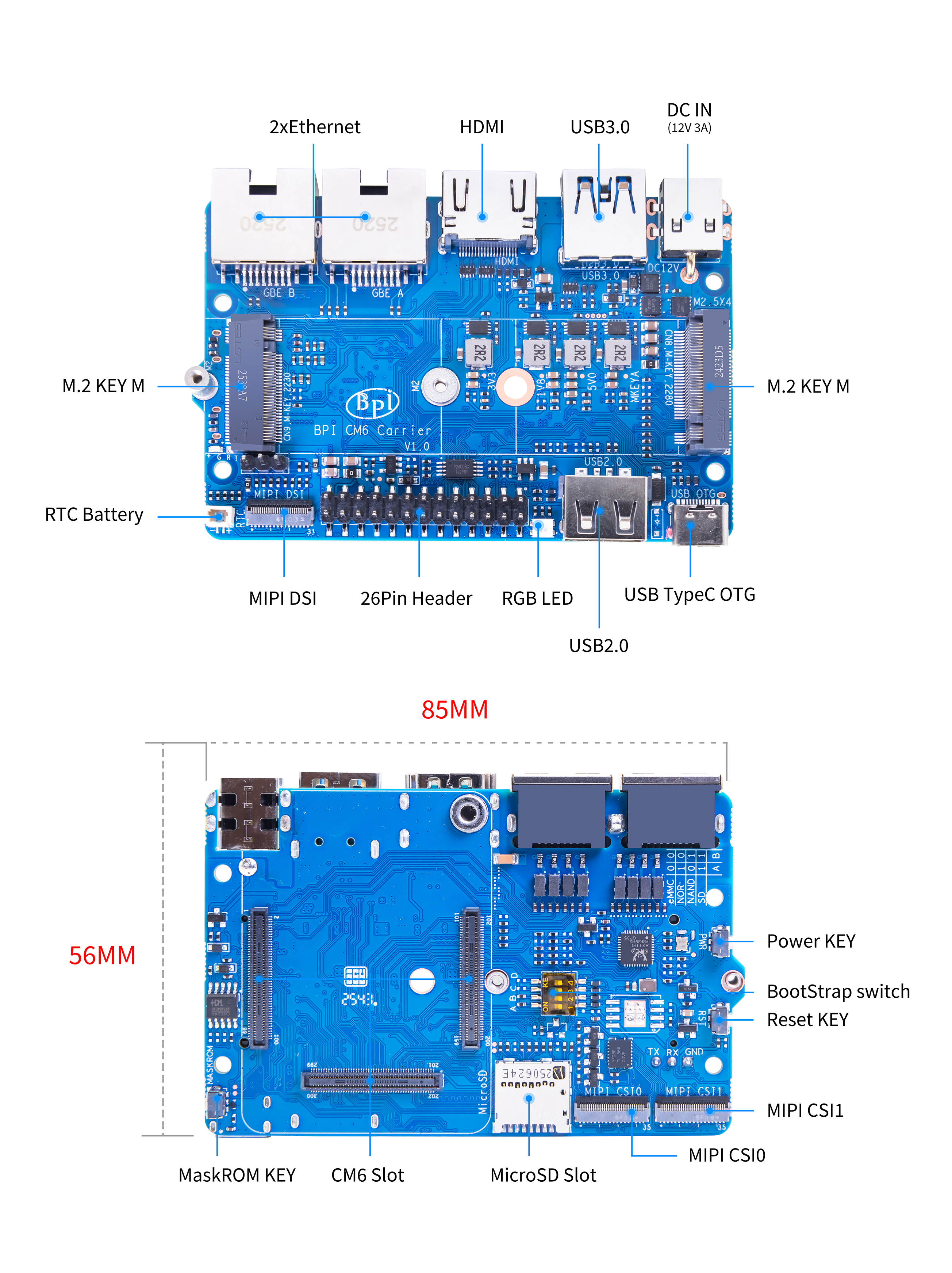

¶ BPI-CM6 IO board
¶ IO board Hardware Specifications
-
1x HDMI TypeA Slot
-
1x USB3.0 TypeA Slot
-
1x USB2.0 TypeA Slot
-
1x USB TypeC OTG
-
2x Gigabit Ethernet RJ45
-
1x MicroSD Slot
-
2x M.2 M-KEY Slots with 2-lane PCIe Interface
-
2x MIPI CSI 4-lane interfaces
-
1x MIPI DSI 4-lane interface
-
26PIN GPIO Header
-
1x 12V DCIN Slot(5521)
-
Dimension: 56x85MM
¶ Hardware Interfaces
¶ GPIO define
¶ Development
¶ Source code
¶ Bianbu linux
| Bianbu source code： https://gitee.com/bianbu-linux/linux-6.1 |
| Bianbu uboot code: https://gitee.com/bianbu-linux/uboot-2022.10 |
| Bianbu OpenSBI code: https://gitee.com/bianbu-linux/opensbi |
¶ OpenWrt
| OpenWrt source code: https://archive.spacemit.com/openwrt/releases/23.05.2/ |
¶ Linux BSP Source Code
¶ RISC-V IME set Specification
SpacemiT K1 8 core RISC-V chip (Banana Pi BPI-F3) RISC-V IME set Specification public on github
¶ Resources
| Banana Pi BPI-CM6 deepseek demo https://docs.banana-pi.org/en/BPI-CM6/BananaPi_BPI-CM6 |
