¶ FAQ

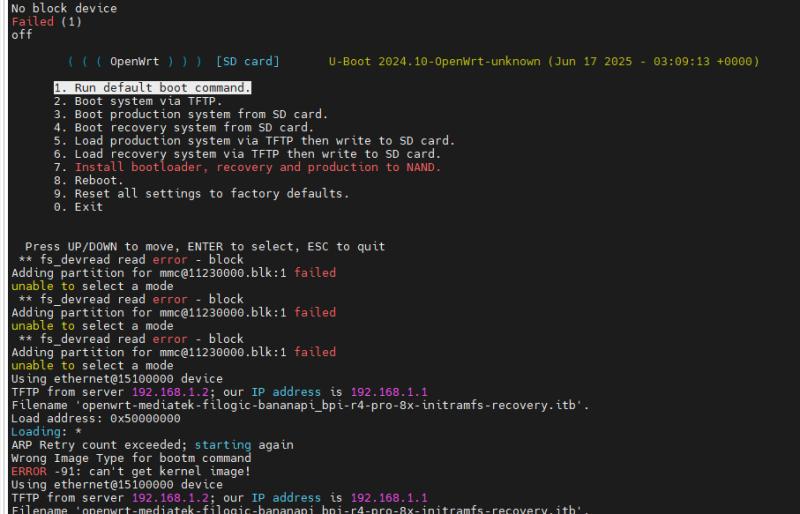

¶ Problem of SD card startup failure
-
Please follow the following diagram for Windows PC.
-
Use another high-speed SD card for burning.
| We successfully booted the image using a 64G high-speed SanDisk card. |
Details
F0: 102B 0000
FA: 1042 0000
FA: 1042 0000 [0200]
F9: 1041 0000
F3: 1001 0000 [0200]
F3: 1001 0000
F6: 380E 5012
F5: 0000 0000
V0: 0000 0000 [0001]
00: 0000 0000
BP: 0600 0041 [0000]
G0: 1190 0000
EC: 0000 0000 [3000]
MK: 0000 0000 [0000]
T0: 0000 0227 [0101]
Jump to BL
NOTICE: BL2: v2.10.0 (release):OpenWrt v2024.01.17~bacca82a-3 (mt7988-sdmmc-comb)
NOTICE: BL2: Built : 03:09:13, Jun 17 2025
NOTICE: WDT: Cold boot
NOTICE: WDT: disabled
NOTICE: CPU: MT7988
NOTICE: EMI: DDR4 4BG mode
NOTICE: EMI: Using DDR unknown settings
NOTICE: EMI: Detected DRAM size: 8192 MB
NOTICE: EMI: complex R/W mem test passed
NOTICE: BL2: Booting BL31
NOTICE: BL31: v2.10.0 (release):OpenWrt v2024.01.17~bacca82a-3 (mt7988-sdmmc-comb)
NOTICE: BL31: Built : 03:09:13, Jun 17 2025
U-Boot 2024.10-OpenWrt-unknown (Jun 17 2025 - 03:09:13 +0000)
CPU: MediaTek MT7988
Model: BananaPi BPI-R4 Pro 8X
DRAM: 8 GiB
Core: 65 devices, 23 uclasses, devicetree: embed
spi-nand: spi_nand spi_nand@0: Winbond SPI NAND was found.
spi-nand: spi_nand spi_nand@0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
MMC: mmc@11230000: 0
Loading Environment from MMC... *** Warning - bad CRC, using default environment
Reading from MMC(0)... In: serial@11000000
Out: serial@11000000
Err: serial@11000000
reset button found
Loading Environment from MMC... *** Warning - bad CRC, using default environment
Reading from MMC(0)... Net:
Warning: ethernet@15100000 (eth0) using random MAC address - 06:40:7d:d8:70:8e
eth0: ethernet@15100000
Saving Environment to MMC... Writing to MMC(0)... OK
Saving Environment to MMC... Writing to MMC(0)... OK
off
( ( ( OpenWrt ) ) ) [SD card] U-Boot 2024.10-OpenWrt-unknown (Jun 17 2025 - 03:09:13 +0000)
1. Run default boot command.
2. Boot system via TFTP.
3. Boot production system from SD card.
4. Boot recovery system from SD card.
5. Load production system via TFTP then write to SD card.
6. Load recovery system via TFTP then write to SD card.
7. Install bootloader, recovery and production to NAND.
8. Reboot.
9. Reset all settings to factory defaults.
0. Exit
Press UP/DOWN to move, ENTER to select, ESC to quit
MMC read: dev # 0, block # 327680, count 256 ... 256 blocks read: OK
MMC read: dev # 0, block # 327680, count 218616 ... 218616 blocks read: OK
## Loading kernel from FIT Image at 50000000 ...
Using 'config-mt7988a-bananapi-bpi-r4-pro-8x' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-6.6.93
Type: Kernel Image
Compression: gzip compressed
Data Start: 0x50001000
Data Size: 6744266 Bytes = 6.4 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x46000000
Entry Point: 0x46000000
Hash algo: crc32
Hash value: 64e7916c
Hash algo: sha1
Hash value: 5a60d0813ea4d5f9e42657baf57d1c5706457e21
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 50000000 ...
Using 'config-mt7988a-bananapi-bpi-r4-pro-8x' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt bananapi_bpi-r4-pro-8x device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x50670000
Data Size: 55785 Bytes = 54.5 KiB
Architecture: AArch64
Load Address: 0x45f00000
Hash algo: crc32
Hash value: 09f6aff4
Hash algo: sha1
Hash value: 4820e0bb1b5b2e5928dc040fc15d8e906fb4424b
Verifying Hash Integrity ... crc32+ sha1+ OK
Loading fdt from 0x50670000 to 0x45f00000
## Loading fdt from FIT Image at 50000000 ...
Using 'mt7988a-bananapi-bpi-r4-pro-8x-sd' configuration
Trying 'fdt-mt7988a-bananapi-bpi-r4-pro-8x-sd' fdt subimage
Description: ARM64 OpenWrt bananapi_bpi-r4-pro-8x device tree overlay mt7988a-bananapi-bpi-r4-pro-8x-sd
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x50680000
Data Size: 1478 Bytes = 1.4 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: 014fa155
Hash algo: sha1
Hash value: b38566e58ee64a3933cc1fa057f9dd70ae509834
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 50000000 ...
Could not find configuration node
load of <NULL> failed
Booting using the fdt blob at 0x45f00000
Working FDT set to 45f00000
## Loading loadables from FIT Image at 50000000 ...
Trying 'rootfs-1' loadables subimage
Description: ARM64 OpenWrt bananapi_bpi-r4-pro-8x rootfs
Type: Filesystem Image
Compression: uncompressed
Data Start: 0x50682000
Data Size: 105107456 Bytes = 100.2 MiB
Hash algo: crc32
Hash value: fa7a0ddf
Hash algo: sha1
Hash value: 8b6f4b6c6638c6b2df6f34de3b6a0c416693a5d4
Verifying Hash Integrity ... crc32+ sha1+ OK
Uncompressing Kernel Image to 46000000
Loading Device Tree to 00000000fe7db000, end 00000000fe7eac8d ... OK
Working FDT set to fe7db000
set /chosen/rootdisk to bootrom media: rootdisk-sd (phandle 0x000000d8)
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x411fd090]
[ 0.000000] Linux version 6.6.93 (linux@ubuntu2004-devel) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 13.3.0 unknown) 13.3.0, GNU ld (GNU Binutils) 2.42) #0 SMP Tue Jun 17 03:09:13 2025
[ 0.000000] Machine model: Bananapi BPI-R4-PRO-8X
[ 0.000000] OF: reserved mem: 0x0000000042ff0000..0x0000000042ffffff (64 KiB) map non-reusable ramoops@42ff0000
[ 0.000000] OF: reserved mem: 0x0000000043000000..0x000000004304ffff (320 KiB) nomap non-reusable secmon@43000000
[ 0.000000] OF: reserved mem: 0x0000000047cc0000..0x0000000047dbffff (1024 KiB) nomap non-reusable wmcpu-reserved@47cc0000
[ 0.000000] OF: reserved mem: 0x000000004f600000..0x000000004f63ffff (256 KiB) nomap non-reusable wo-emi@4f600000
[ 0.000000] OF: reserved mem: 0x000000004f640000..0x000000004f67ffff (256 KiB) nomap non-reusable wo-emi@4f640000
[ 0.000000] OF: reserved mem: 0x000000004f680000..0x000000004f6bffff (256 KiB) nomap non-reusable wo-emi@4f680000
[ 0.000000] OF: reserved mem: 0x000000004f700000..0x000000004fefffff (8192 KiB) nomap non-reusable wo-data@4f700000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000040000000-0x00000000ffffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal [mem 0x0000000100000000-0x000000023fffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff]
[ 0.000000] node 0: [mem 0x0000000043000000-0x000000004304ffff]
[ 0.000000] node 0: [mem 0x0000000043050000-0x0000000047cbffff]
[ 0.000000] node 0: [mem 0x0000000047cc0000-0x0000000047dbffff]
[ 0.000000] node 0: [mem 0x0000000047dc0000-0x000000004f5fffff]
[ 0.000000] node 0: [mem 0x000000004f600000-0x000000004f6bffff]
[ 0.000000] node 0: [mem 0x000000004f6c0000-0x000000004f6fffff]
[ 0.000000] node 0: [mem 0x000000004f700000-0x000000004fefffff]
[ 0.000000] node 0: [mem 0x000000004ff00000-0x000000023fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000023fffffff]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.4
[ 0.000000] percpu: Embedded 28 pages/cpu s74472 r8192 d32024 u114688
[ 0.000000] pcpu-alloc: s74472 r8192 d32024 u114688 alloc=28*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register CPU interface
[ 0.000000] CPU features: detected: Spectre-BHB
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: console=ttyS0,115200n1 pci=pcie_bus_perf root=/dev/fit0 rootwait
[ 0.000000] Dentry cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 2064384
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] software IO TLB: area num 4.
[ 0.000000] software IO TLB: mapped [mem 0x00000000fa7db000-0x00000000fe7db000] (64MB)
[ 0.000000] Memory: 8135452K/8388608K available (9984K kernel code, 1640K rwdata, 3284K rodata, 576K init, 308K bss, 253156K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 416 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GICv3: GICv3 features: 16 PPIs
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[ 0.000245] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000)
[ 0.000253] pid_max: default: 32768 minimum: 301
[ 0.002357] Mount-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 0.002380] Mountpoint-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 0.003887] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 0.004172] RCU Tasks Trace: Setting shift to 2 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=4.
[ 0.004252] rcu: Hierarchical SRCU implementation.
[ 0.004254] rcu: Max phase no-delay instances is 1000.
[ 0.004667] smp: Bringing up secondary CPUs ...
[ 0.004897] Detected VIPT I-cache on CPU1
[ 0.004936] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[ 0.004960] CPU1: Booted secondary processor 0x0000000001 [0x411fd090]
[ 0.005228] Detected VIPT I-cache on CPU2
[ 0.005248] GICv3: CPU2: found redistributor 2 region 0:0x000000000c0c0000
[ 0.005259] CPU2: Booted secondary processor 0x0000000002 [0x411fd090]
[ 0.005501] Detected VIPT I-cache on CPU3
[ 0.005521] GICv3: CPU3: found redistributor 3 region 0:0x000000000c0e0000
[ 0.005532] CPU3: Booted secondary processor 0x0000000003 [0x411fd090]
[ 0.005563] smp: Brought up 1 node, 4 CPUs
[ 0.005567] SMP: Total of 4 processors activated.
[ 0.005570] CPU features: detected: 32-bit EL0 Support
[ 0.005572] CPU features: detected: CRC32 instructions
[ 0.005606] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.005609] CPU: All CPU(s) started at EL2
[ 0.005611] alternatives: applying system-wide alternatives
[ 0.009915] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.009928] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.010736] pinctrl core: initialized pinctrl subsystem
[ 0.011538] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.011929] DMA: preallocated 1024 KiB GFP_KERNEL pool for atomic allocations
[ 0.012118] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.012299] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.012597] thermal_sys: Registered thermal governor 'fair_share'
[ 0.012600] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.012602] thermal_sys: Registered thermal governor 'step_wise'
[ 0.012604] thermal_sys: Registered thermal governor 'user_space'
[ 0.012644] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.012678] ASID allocator initialised with 65536 entries
[ 0.013416] pstore: Using crash dump compression: deflate
[ 0.013421] printk: console [ramoops-1] enabled
[ 0.013658] pstore: Registered ramoops as persistent store backend
[ 0.013662] ramoops: using 0x10000@0x42ff0000, ecc: 0
[ 0.015922] /soc/interrupt-controller@c000000: Fixed dependency cycle(s) with /soc/interrupt-controller@c000000
[ 0.022035] Modules: 28784 pages in range for non-PLT usage
[ 0.022044] Modules: 520304 pages in range for PLT usage
[ 0.022860] cryptd: max_cpu_qlen set to 1000
[ 0.024392] SCSI subsystem initialized
[ 0.024605] libata version 3.00 loaded.
[ 0.025559] clocksource: Switched to clocksource arch_sys_counter
[ 0.044448] NET: Registered PF_INET protocol family
[ 0.044676] IP idents hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[ 0.048721] tcp_listen_portaddr_hash hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.048763] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.048774] TCP established hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.048966] TCP bind hash table entries: 65536 (order: 9, 2097152 bytes, linear)
[ 0.049806] TCP: Hash tables configured (established 65536 bind 65536)
[ 0.050148] MPTCP token hash table entries: 8192 (order: 5, 196608 bytes, linear)
[ 0.050321] UDP hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.050411] UDP-Lite hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.050658] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.050690] PCI: CLS 0 bytes, default 64
[ 0.051711] workingset: timestamp_bits=46 max_order=21 bucket_order=0
[ 0.055386] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.055393] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.087232] mtk-xsphy soc:xphy@11e10000: failed to get ref_clk(id-1)
[ 0.087865] mtk-pcie-gen3 11280000.pcie: host bridge /soc/pcie@11280000 ranges:
[ 0.087882] mtk-pcie-gen3 11280000.pcie: Parsing ranges property...
[ 0.087894] mtk-pcie-gen3 11280000.pcie: IO 0x0020000000..0x00201fffff -> 0x0020000000
[ 0.087907] mtk-pcie-gen3 11280000.pcie: MEM 0x0020200000..0x0027ffffff -> 0x0020200000
[ 0.088000] mtk-pcie-gen3 11290000.pcie: host bridge /soc/pcie@11290000 ranges:
[ 0.088010] mtk-pcie-gen3 11290000.pcie: Parsing ranges property...
[ 0.088020] mtk-pcie-gen3 11290000.pcie: IO 0x0028000000..0x00281fffff -> 0x0028000000
[ 0.088029] mtk-pcie-gen3 11290000.pcie: MEM 0x0028200000..0x002fffffff -> 0x0028200000
[ 0.088048] /soc/pcie@11290000: Failed to get clk index: 0 ret: -517
[ 0.088056] mtk-pcie-gen3 11290000.pcie: failed to get clocks
[ 0.088119] mtk-pcie-gen3 11300000.pcie: host bridge /soc/pcie@11300000 ranges:
[ 0.088128] mtk-pcie-gen3 11300000.pcie: Parsing ranges property...
[ 0.088137] mtk-pcie-gen3 11300000.pcie: IO 0x0030000000..0x00301fffff -> 0x0030000000
[ 0.088146] mtk-pcie-gen3 11300000.pcie: MEM 0x0030200000..0x0037ffffff -> 0x0030200000
[ 0.088162] /soc/pcie@11300000: Failed to get clk index: 0 ret: -517
[ 0.088170] mtk-pcie-gen3 11300000.pcie: failed to get clocks
[ 0.088245] mtk-pcie-gen3 11310000.pcie: host bridge /soc/pcie@11310000 ranges:
[ 0.088255] mtk-pcie-gen3 11310000.pcie: Parsing ranges property...
[ 0.088264] mtk-pcie-gen3 11310000.pcie: IO 0x0038000000..0x00381fffff -> 0x0038000000
[ 0.088273] mtk-pcie-gen3 11310000.pcie: MEM 0x0038200000..0x003fffffff -> 0x0038200000
[ 0.088290] /soc/pcie@11310000: Failed to get clk index: 0 ret: -517
[ 0.088297] mtk-pcie-gen3 11310000.pcie: failed to get clocks
[ 0.093106] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled
[ 0.093896] printk: console [ttyS0] disabled
[ 0.114151] 11000000.serial: ttyS0 at MMIO 0x11000000 (irq = 99, base_baud = 2500000) is a ST16650V2
[ 0.114187] printk: console [ttyS0] enabled
[ 1.132436] 11000100.serial: ttyS1 at MMIO 0x11000100 (irq = 100, base_baud = 2500000) is a ST16650V2
[ 1.162341] 11000200.serial: ttyS2 at MMIO 0x11000200 (irq = 101, base_baud = 2500000) is a ST16650V2
[ 1.174258] loop: module loaded
[ 1.179469] spi-nand spi0.0: CASN page check failed
[ 1.184352] spi-nand spi0.0: Fallback to read ID
[ 1.189067] spi-nand spi0.0: Winbond SPI NAND was found.
[ 1.194370] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
[ 1.202711] 4 fixed-partitions partitions found on MTD device spi0.0
[ 1.209158] OF: Bad cell count for /soc/spi@11007000/spi_nand@0/partitions
[ 1.216045] OF: Bad cell count for /soc/spi@11007000/spi_nand@0/partitions
[ 1.223071] Creating 4 MTD partitions on "spi0.0":
[ 1.227879] 0x000000000000-0x000000200000 : "bl2"
[ 1.234164] 0x000000200000-0x000000600000 : "Factory"
[ 1.242038] OF: Bad cell count for /soc/spi@11007000/spi_nand@0/partitions
[ 1.249053] 0x000000600000-0x000010000000 : "ubi"
[ 1.420079] ubi0: default fastmap pool size: 100
[ 1.424693] ubi0: default fastmap WL pool size: 50
[ 1.429480] ubi0: attaching mtd2
[ 2.335558] random: crng init done
[ 2.962540] ubi0: scanning is finished
[ 2.976089] ubi0: attached mtd2 (name "ubi", size 250 MiB)
[ 2.981575] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 2.988445] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 2.995220] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 3.002171] ubi0: good PEBs: 2000, bad PEBs: 0, corrupted PEBs: 0
[ 3.008254] ubi0: user volume: 6, internal volumes: 1, max. volumes count: 128
[ 3.015463] ubi0: max/mean erase counter: 2/0, WL threshold: 4096, image sequence number: 1750129753
[ 3.024582] ubi0: available PEBs: 0, total reserved PEBs: 2000, PEBs reserved for bad PEB handling: 40
[ 3.033880] ubi0: background thread "ubi_bgt0d" started, PID 261
[ 3.033957] OF: Bad cell count for /soc/spi@11007000/spi_nand@0/partitions
[ 3.046832] OF: Bad cell count for /soc/spi@11007000/spi_nand@0/partitions
[ 3.054424] block ubiblock0_4: created from ubi0:4(fit)
[ 3.059718] 0x000000000000-0x000010000000 : "nand"
[ 3.067491] mt7530-mmio 15020000.switch: Failed to register DSA switch: -517
[ 3.207235] i2c_dev: i2c /dev entries driver
[ 3.212013] /soc/i2c@11003000/rt5190a@64: Fixed dependency cycle(s) with /soc/i2c@11003000/rt5190a@64/regulators/buck1
[ 3.228713] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0)
[ 3.241483] mtk-msdc 11230000.mmc: Got CD GPIO
[ 3.246688] hw perfevents: enabled with armv8_cortex_a73 PMU driver, 7 counters available
[ 3.256276] NET: Registered PF_INET6 protocol family
[ 3.261580] Segment Routing with IPv6
[ 3.265241] In-situ OAM (IOAM) with IPv6
[ 3.269204] NET: Registered PF_PACKET protocol family
[ 3.274256] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 3.287302] 8021q: 802.1Q VLAN Support v1.8
[ 3.302862] phy phy-soc:[email protected]: type_sw - reg 0x218, index 0
[ 3.309319] mmc0: host does not support reading read-only switch, assuming write-enable
[ 3.317429] mmc0: new high speed SDXC card at address aaaa
[ 3.318078] mtk-pcie-gen3 11280000.pcie: host bridge /soc/pcie@11280000 ranges:
[ 3.323467] mmcblk0: mmc0:aaaa SD64G 59.5 GiB
[ 3.330240] mtk-pcie-gen3 11280000.pcie: Parsing ranges property...
[ 3.340865] mtk-pcie-gen3 11280000.pcie: IO 0x0020000000..0x00201fffff -> 0x0020000000
[ 3.349317] mtk-pcie-gen3 11280000.pcie: MEM 0x0020200000..0x0027ffffff -> 0x0020200000
[ 3.357853] mtk-pcie-gen3 11280000.pcie: failed to get max link width
[ 3.366974] Alternate GPT is invalid, using primary GPT.
[ 3.372289] mmcblk0: p1 p2 p3 p4 p5 p6 p7
[ 3.695580] mtk-pcie-gen3 11280000.pcie: PCIe link down, current LTSSM state: detect.quiet (0x1)
[ 3.704384] mtk-pcie-gen3: probe of 11280000.pcie failed with error -110
[ 3.711467] mtk-pcie-gen3 11290000.pcie: host bridge /soc/pcie@11290000 ranges:
[ 3.718783] mtk-pcie-gen3 11290000.pcie: Parsing ranges property...
[ 3.725045] mtk-pcie-gen3 11290000.pcie: IO 0x0028000000..0x00281fffff -> 0x0028000000
[ 3.733477] mtk-pcie-gen3 11290000.pcie: MEM 0x0028200000..0x002fffffff -> 0x0028200000
[ 3.741948] mtk-pcie-gen3 11290000.pcie: failed to get max link width
[ 4.085553] mtk-pcie-gen3 11290000.pcie: PCIe link down, current LTSSM state: detect.quiet (0x1)
[ 4.094330] mtk-pcie-gen3: probe of 11290000.pcie failed with error -110
[ 4.101207] mtk-pcie-gen3 11300000.pcie: host bridge /soc/pcie@11300000 ranges:
[ 4.108516] mtk-pcie-gen3 11300000.pcie: Parsing ranges property...
[ 4.114774] mtk-pcie-gen3 11300000.pcie: IO 0x0030000000..0x00301fffff -> 0x0030000000
[ 4.123205] mtk-pcie-gen3 11300000.pcie: MEM 0x0030200000..0x0037ffffff -> 0x0030200000
[ 4.131657] mtk-pcie-gen3 11300000.pcie: failed to get max link width
[ 4.475591] mtk-pcie-gen3 11300000.pcie: PCIe link down, current LTSSM state: detect.quiet (0x1)
[ 4.484393] mtk-pcie-gen3: probe of 11300000.pcie failed with error -110
[ 4.491400] mtk-pcie-gen3 11310000.pcie: host bridge /soc/pcie@11310000 ranges:
[ 4.498727] mtk-pcie-gen3 11310000.pcie: Parsing ranges property...
[ 4.504990] mtk-pcie-gen3 11310000.pcie: IO 0x0038000000..0x00381fffff -> 0x0038000000
[ 4.513423] mtk-pcie-gen3 11310000.pcie: MEM 0x0038200000..0x003fffffff -> 0x0038200000
[ 4.521892] mtk-pcie-gen3 11310000.pcie: failed to get max link width
[ 4.865559] mtk-pcie-gen3 11310000.pcie: PCIe link down, current LTSSM state: detect.quiet (0x1)
[ 4.874335] mtk-pcie-gen3: probe of 11310000.pcie failed with error -110
[ 4.881831] FIT: Detected U-Boot 2024.10-OpenWrt-unknown
[ 4.887139] FIT: Selected configuration: "config-mt7988a-bananapi-bpi-r4-pro-8x" (OpenWrt bananapi_bpi-r4-pro-8x)
[ 4.897394] FIT: kernel sub-image 0x00001000..0x0066f8c9 "kernel-1" (ARM64 OpenWrt Linux-6.6.93)
[ 4.907127] FIT: flat_dt sub-image 0x00670000..0x0067d9e8 "fdt-1" (ARM64 OpenWrt bananapi_bpi-r4-pro-8x device tree blob)
[ 4.918942] FIT: flat_dt sub-image 0x0067e000..0x0067e60d "fdt-mt7988a-bananapi-bpi-r4-pro-8x-emmc" (ARM64 OpenWrt bananapi_bpi-r4-pro-8x device tree overlay mt7988a-bananapi-bpi-r4-pro-8x-emmc)
[ 4.937091] FIT: flat_dt sub-image 0x0067f000..0x0067f120 "fdt-mt7988a-bananapi-bpi-r4-pro-8x-rtc" (ARM64 OpenWrt bananapi_bpi-r4-pro-8x device tree overlay mt7988a-bananapi-bpi-r4-pro-8x-rtc)
[ 4.955065] FIT: flat_dt sub-image 0x00680000..0x006805c5 "fdt-mt7988a-bananapi-bpi-r4-pro-8x-sd" (ARM64 OpenWrt bananapi_bpi-r4-pro-8x device tree overlay mt7988a-bananapi-bpi-r4-pro-8x-sd)
[ 4.972871] FIT: flat_dt sub-image 0x00681000..0x006818f4 "fdt-mt7988a-bananapi-bpi-r4-pro-8x-wifi-mt7996a" (ARM64 OpenWrt bananapi_bpi-r4-pro-8x device tree overlay mt7988a-bananapi-bpi-r4-pro-8x-wifi-mt7996a)
[ 4.992408] FIT: filesystem sub-image 0x00682000..0x06abefff "rootfs-1" (ARM64 OpenWrt bananapi_bpi-r4-pro-8x rootfs)
[ 5.003840] block mmcblk0p7: mapped 1 uImage.FIT filesystem sub-image as /dev/fit0
[ 5.011564] block mmcblk0p7: mapped remaining space as /dev/fitrw
[ 5.018664] mt7530-mmio 15020000.switch: Failed to register DSA switch: -517
[ 5.158259] mtk_soc_eth 15100000.ethernet: generated random MAC address 65:74:68:25:64:00
[ 5.166842] mtk_soc_eth 15100000.ethernet: generated random MAC address 65:74:68:25:64:00
[ 6.508974] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc082b00000, irq 110
[ 6.518867] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc082b00000, irq 110
[ 6.528777] mtk_soc_eth 15100000.ethernet eth2: mediatek frame engine at 0xffffffc082b00000, irq 110
[ 6.537929] (unnamed net_device) (dummy): netif_napi_add_weight() called with weight 256
[ 6.625596] mt7530-mmio 15020000.switch: configuring for fixed/internal link mode
[ 6.633093] mt7530-mmio 15020000.switch: Link is Up - 10Gbps/Full - flow control rx/tx
[ 6.662690] mt7530-mmio 15020000.switch lan0 (uninitialized): PHY [mt7530-0:00] driver [MediaTek MT7988 PHY] (irq=124)
[ 6.673401] mt7530-mmio 15020000.switch: nonfatal error -34 setting MTU to 1500 on port 0
[ 6.711587] mt7530-mmio 15020000.switch lan3 (uninitialized): PHY [mt7530-0:03] driver [MediaTek MT7988 PHY] (irq=127)
[ 6.722289] mt7530-mmio 15020000.switch: nonfatal error -34 setting MTU to 1500 on port 3
[ 6.730725] eth0: mtu greater than device maximum
[ 6.735419] mtk_soc_eth 15100000.ethernet eth0: error -22 setting MTU to 1504 to include DSA overhead
[ 6.744632] mtk_soc_eth 15100000.ethernet eth0: entered promiscuous mode
[ 6.751336] DSA: tree 1 setup
[ 6.754292] mt7530-nl: genl_register_family_with_ops
[ 6.759628] mxl862xx mdio-bus:10: Mxl862xx CPU Port 8, User Port number 5
[ 6.776378] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: Firmware Version: 0.77 (0x004D test version)
[ 6.814444] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: Firmware Version: 0.77 (0x004D test version)
[ 6.852632] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: Firmware Version: 0.77 (0x004D test version)
[ 6.890717] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: Firmware Version: 0.77 (0x004D test version)
[ 11.034619] mxl862xx mdio-bus:10: failed to enable MAC learning on port 8
[ 11.041402] mxl862xx mdio-bus:10: mxl862xx_set_vlan_filter_limits: user_pnum:5, priv->max_vlans: 36, cpu_ingress_entries: 11, cpu_egress_entries: 74, user_ingress_entries: 77, user_egress_entries: 75
[ 11.132692] mxl862xx mdio-bus:10: failed to disable SDMA on port 0
[ 11.817936] mxl862xx mdio-bus:10: configuring for fixed/usxgmii link mode
[ 11.824722] mxl862xx mdio-bus:10: Link is Up - 10Gbps/Full - flow control off
[ 11.827024] mxl862xx mdio-bus:10 mxl_lan0 (uninitialized): PHY [mxl862xx_dsa-0:00] driver [MaxLinear Ethernet MxL862XX] (irq=POLL)
[ 11.846066] mxl862xx mdio-bus:10 mxl_lan1 (uninitialized): PHY [mxl862xx_dsa-0:01] driver [MaxLinear Ethernet MxL862XX] (irq=POLL)
[ 11.860030] mxl862xx mdio-bus:10 mxl_lan2 (uninitialized): PHY [mxl862xx_dsa-0:02] driver [MaxLinear Ethernet MxL862XX] (irq=POLL)
[ 11.873978] mxl862xx mdio-bus:10 mxl_lan3 (uninitialized): PHY [mxl862xx_dsa-0:03] driver [MaxLinear Ethernet MxL862XX] (irq=POLL)
[ 11.886238] eth2: mtu greater than device maximum
[ 11.890935] mtk_soc_eth 15100000.ethernet eth2: error -22 setting MTU to 1504 to include DSA overhead
[ 11.900147] mtk_soc_eth 15100000.ethernet eth2: entered promiscuous mode
[ 11.906850] DSA: tree 0 setup
[ 11.910624] mxl862xx mdio-bus:10: Firmware version 1.0.70.70
[ 11.916561] clk: Disabling unused clocks
[ 11.924502] VFS: Mounted root (squashfs filesystem) readonly on device 259:0.
[ 11.931767] Freeing unused kernel memory: 576K
[ 11.936231] Run /sbin/init as init process
[ 11.940316] with arguments:
[ 11.943271] /sbin/init
[ 11.945969] with environment:
[ 11.949097] HOME=/
[ 11.951445] TERM=linux
[ 12.067902] init: Console is alive
[ 12.071383] init: - watchdog -
[ 12.581151] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 12.606004] aeon_as21xxx: loading out-of-tree module taints kernel.
[ 12.612818] mdio_bus mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9410
[ 21.262895] Enable 10G LAN RJ45 LED.
[ 21.631589] Aeonsemi AS21xxx mdio-bus:18: Firmware Version: 1.9.1
[ 21.735878] mdio_bus mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9410
[ 24.147504] init: - preinit -
[ 24.413556] mtk_ppe: roaming work has been activated
[ 24.418548] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/internal link mode
[ 24.426681] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 10Gbps/Full - flow control rx/tx
Cannot find device "lan1"
Cannot find device "lan1"
Press the [f] key and hit [enter] to enter failsafe mode
Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level
sendto(): Network unreachable
sendto(): Network unreachable
sendto(): Network unreachable
sendto(): Network unreachable
[ 29.063465] mount_root: loading kmods from internal overlay
[ 29.079373] kmodloader: loading kernel modules from //etc/modules-boot.d/*
[ 29.099221] usbcore: registered new interface driver usbfs
[ 29.104748] usbcore: registered new interface driver hub
[ 29.110095] usbcore: registered new device driver usb
[ 29.122232] xhci-mtk 11190000.usb: supply vbus not found, using dummy regulator
[ 29.129639] xhci-mtk 11190000.usb: supply vusb33 not found, using dummy regulator
[ 29.137401] xhci-mtk 11190000.usb: xHCI Host Controller
[ 29.142625] xhci-mtk 11190000.usb: new USB bus registered, assigned bus number 1
[ 29.150073] xhci-mtk 11190000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000200010
[ 29.159227] xhci-mtk 11190000.usb: irq 128, io mem 0x11190000
[ 29.165021] xhci-mtk 11190000.usb: xHCI Host Controller
[ 29.170239] xhci-mtk 11190000.usb: new USB bus registered, assigned bus number 2
[ 29.177648] xhci-mtk 11190000.usb: Host supports USB 3.2 Enhanced SuperSpeed
[ 29.184957] hub 1-0:1.0: USB hub found
[ 29.188720] hub 1-0:1.0: 1 port detected
[ 29.192801] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 29.201063] hub 2-0:1.0: USB hub found
[ 29.204814] hub 2-0:1.0: 1 port detected
[ 29.208995] xhci-mtk 11200000.usb: supply vbus not found, using dummy regulator
[ 29.216371] xhci-mtk 11200000.usb: supply vusb33 not found, using dummy regulator
[ 29.224267] xhci-mtk 11200000.usb: xHCI Host Controller
[ 29.229492] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 3
[ 29.239917] xhci-mtk 11200000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000200010
[ 29.249065] xhci-mtk 11200000.usb: irq 129, io mem 0x11200000
[ 29.254858] xhci-mtk 11200000.usb: xHCI Host Controller
[ 29.260077] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 4
[ 29.267462] xhci-mtk 11200000.usb: Host supports USB 3.2 Enhanced SuperSpeed
[ 29.274727] hub 3-0:1.0: USB hub found
[ 29.278484] hub 3-0:1.0: 1 port detected
[ 29.282555] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[ 29.290808] hub 4-0:1.0: USB hub found
[ 29.294558] hub 4-0:1.0: 1 port detected
[ 29.301800] usbcore: registered new interface driver usb-storage
[ 29.308464] usbcore: registered new interface driver uas
[ 29.313906] kmodloader: done loading kernel modules from //etc/modules-boot.d/*
[ 29.645567] usb 1-1: new high-speed USB device number 2 using xhci-mtk
[ 29.725560] usb 3-1: new high-speed USB device number 2 using xhci-mtk
[ 29.836211] hub 1-1:1.0: USB hub found
[ 29.839999] hub 1-1:1.0: 4 ports detected
[ 29.919533] hub 3-1:1.0: USB hub found
[ 29.923485] hub 3-1:1.0: 4 ports detected
[ 30.085867] usb 4-1: new SuperSpeed USB device number 2 using xhci-mtk
[ 30.155355] hub 4-1:1.0: USB hub found
[ 30.159327] hub 4-1:1.0: 4 ports detected
[ 30.406174] Aeonsemi AS21xxx mdio-bus:1c: Firmware Version: 1.9.1
[ 30.516051] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.523811] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.531565] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.539312] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.548439] mxl862xx: failed to write mmd on port 30
[ 30.554689] mxl862xx: failed to write mmd on port 30
[ 30.559645] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.569998] mxl862xx: failed to write mmd on port 30
[ 30.576176] mxl862xx: failed to write mmd on port 30
[ 30.581128] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.591477] mxl862xx: failed to write mmd on port 30
[ 30.597658] mxl862xx: failed to write mmd on port 30
[ 30.602610] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.612958] mxl862xx: failed to write mmd on port 30
[ 30.619139] mxl862xx: failed to write mmd on port 30
[ 30.624092] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.633509] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 30.641389] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 30.649407] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.657166] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.664918] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.672673] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.681358] mxl862xx: failed to write mmd on port 30
[ 30.687538] mxl862xx: failed to write mmd on port 30
[ 30.692490] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.702840] mxl862xx: failed to write mmd on port 30
[ 30.738804] mxl862xx: failed to write mmd on port 30
[ 30.743756] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.774150] mxl862xx: failed to write mmd on port 30
[ 30.809009] mxl862xx: failed to write mmd on port 30
[ 30.813961] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.843840] mxl862xx: failed to write mmd on port 30
[ 30.879134] mxl862xx: failed to write mmd on port 30
[ 30.884085] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 30.893473] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 30.901349] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 30.909355] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.917116] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.924869] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.932624] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 30.965785] mxl862xx: failed to write mmd on port 30
[ 31.000559] mxl862xx: failed to write mmd on port 30
[ 31.005511] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.018645] mxl862xx: failed to write mmd on port 30
[ 31.024821] mxl862xx: failed to write mmd on port 30
[ 31.029777] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.040123] mxl862xx: failed to write mmd on port 30
[ 31.046307] mxl862xx: failed to write mmd on port 30
[ 31.051258] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.061606] mxl862xx: failed to write mmd on port 30
[ 31.067786] mxl862xx: failed to write mmd on port 30
[ 31.072738] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.082127] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.090002] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.098018] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.105770] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.113521] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.121277] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.129888] mxl862xx: failed to write mmd on port 30
[ 31.136065] mxl862xx: failed to write mmd on port 30
[ 31.141017] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.151439] mxl862xx: failed to write mmd on port 30
[ 31.157624] mxl862xx: failed to write mmd on port 30
[ 31.162580] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.172930] mxl862xx: failed to write mmd on port 30
[ 31.207763] mxl862xx: failed to write mmd on port 30
[ 31.212715] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.242578] mxl862xx: failed to write mmd on port 30
[ 31.277849] mxl862xx: failed to write mmd on port 30
[ 31.282801] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.292199] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.300075] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.308093] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.315846] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.323598] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.331353] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.364340] mxl862xx: failed to write mmd on port 30
[ 31.399458] mxl862xx: failed to write mmd on port 30
[ 31.404410] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.434125] mxl862xx: failed to write mmd on port 30
[ 31.468878] mxl862xx: failed to write mmd on port 30
[ 31.473830] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.487566] mxl862xx: failed to write mmd on port 30
[ 31.493816] mxl862xx: failed to write mmd on port 30
[ 31.498770] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.509117] mxl862xx: failed to write mmd on port 30
[ 31.515294] mxl862xx: failed to write mmd on port 30
[ 31.520248] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.529633] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.537509] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.545522] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.553277] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.561032] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.568786] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.577398] mxl862xx: failed to write mmd on port 30
[ 31.583577] mxl862xx: failed to write mmd on port 30
[ 31.588532] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.598878] mxl862xx: failed to write mmd on port 30
[ 31.605055] mxl862xx: failed to write mmd on port 30
[ 31.610009] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.620354] mxl862xx: failed to write mmd on port 30
[ 31.626531] mxl862xx: failed to write mmd on port 30
[ 31.631482] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.641830] mxl862xx: failed to write mmd on port 30
[ 31.676586] mxl862xx: failed to write mmd on port 30
[ 31.681537] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.690921] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.698796] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.706810] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.714561] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.722315] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.730068] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 31.763645] mxl862xx: failed to write mmd on port 30
[ 31.798839] mxl862xx: failed to write mmd on port 30
[ 31.803790] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.833508] mxl862xx: failed to write mmd on port 30
[ 31.868261] mxl862xx: failed to write mmd on port 30
[ 31.873213] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.903664] mxl862xx: failed to write mmd on port 30
[ 31.938419] mxl862xx: failed to write mmd on port 30
[ 31.943371] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.956514] mxl862xx: failed to write mmd on port 30
[ 31.962692] mxl862xx: failed to write mmd on port 30
[ 31.967646] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 31.977030] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.984901] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 31.992920] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.000675] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.008429] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.016182] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.024864] mxl862xx: failed to write mmd on port 30
[ 32.031046] mxl862xx: failed to write mmd on port 30
[ 32.035999] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.046342] mxl862xx: failed to write mmd on port 30
[ 32.052520] mxl862xx: failed to write mmd on port 30
[ 32.057474] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.067819] mxl862xx: failed to write mmd on port 30
[ 32.073997] mxl862xx: failed to write mmd on port 30
[ 32.078953] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.089374] mxl862xx: failed to write mmd on port 30
[ 32.095550] mxl862xx: failed to write mmd on port 30
[ 32.100502] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.109886] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 32.117761] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 32.125757] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.133508] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.141264] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.149018] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.157630] mxl862xx: failed to write mmd on port 30
[ 32.192382] mxl862xx: failed to write mmd on port 30
[ 32.197338] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.227492] mxl862xx: failed to write mmd on port 30
[ 32.262316] mxl862xx: failed to write mmd on port 30
[ 32.267270] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.297128] mxl862xx: failed to write mmd on port 30
[ 32.332537] mxl862xx: failed to write mmd on port 30
[ 32.337491] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.367347] mxl862xx: failed to write mmd on port 30
[ 32.402021] mxl862xx: failed to write mmd on port 30
[ 32.406975] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.416359] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 32.424230] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 32.432247] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.440002] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.447756] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.455507] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.472075] mxl862xx: failed to write mmd on port 30
[ 32.478256] mxl862xx: failed to write mmd on port 30
[ 32.483208] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.493555] mxl862xx: failed to write mmd on port 30
[ 32.499809] mxl862xx: failed to write mmd on port 30
[ 32.504760] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.515106] mxl862xx: failed to write mmd on port 30
[ 32.521287] mxl862xx: failed to write mmd on port 30
[ 32.526241] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.536584] mxl862xx: failed to write mmd on port 30
[ 32.542762] mxl862xx: failed to write mmd on port 30
[ 32.547716] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.557096] Aeonsemi AS21xxx mdio-bus:18: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 32.564966] Aeonsemi AS21xxx mdio-bus:1c: aeon_read_pid aeonsemi1 PHY = 7500 - 9422
[ 32.572984] MediaTek MT7988 PHY mt7530-0:00: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.580739] MediaTek MT7988 PHY mt7530-0:01: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.588493] MediaTek MT7988 PHY mt7530-0:02: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.596247] MediaTek MT7988 PHY mt7530-0:03: aeon_read_pid aeonsemi1 PHY = 0 - 0
[ 32.604856] mxl862xx: failed to write mmd on port 30
[ 32.611037] mxl862xx: failed to write mmd on port 30
[ 32.615992] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:00: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.626336] mxl862xx: failed to write mmd on port 30
[ 32.661080] mxl862xx: failed to write mmd on port 30
[ 32.666036] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:01: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.695891] mxl862xx: failed to write mmd on port 30
[ 32.731228] mxl862xx: failed to write mmd on port 30
[ 32.736183] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:02: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.765966] mxl862xx: failed to write mmd on port 30
[ 32.800788] mxl862xx: failed to write mmd on port 30
[ 32.805743] MaxLinear Ethernet MxL862XX mxl862xx_dsa-0:03: aeon_read_pid aeonsemi1 PHY = c133 - 5528
[ 32.817942] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 44.095937] block: attempting to load /tmp/overlay/upper/etc/config/fstab
[ 44.103763] block: unable to load configuration (fstab: Entry not found)
[ 44.110545] block: attempting to load /tmp/overlay/etc/config/fstab
[ 44.116925] block: unable to load configuration (fstab: Entry not found)
[ 44.123645] block: attempting to load /etc/config/fstab
[ 44.138789] block: extroot: not configured
[ 44.145670] UBIFS (ubi0:5): Mounting in unauthenticated mode
[ 44.151381] UBIFS (ubi0:5): background thread "ubifs_bgt0_5" started, PID 1102
[ 44.198454] UBIFS (ubi0:5): recovery needed
[ 44.322128] UBIFS (ubi0:5): recovery completed
[ 44.326615] UBIFS (ubi0:5): UBIFS: mounted UBI device 0, volume 5, name "rootfs_data"
[ 44.334434] UBIFS (ubi0:5): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 44.344337] UBIFS (ubi0:5): FS size: 56250368 bytes (53 MiB, 443 LEBs), max 453 LEBs, journal size 2793472 bytes (2 MiB, 22 LEBs)
[ 44.355976] UBIFS (ubi0:5): reserved for root: 2656843 bytes (2594 KiB)
[ 44.362579] UBIFS (ubi0:5): media format: w5/r0 (latest is w5/r0), UUID 87224234-D0AF-4F55-9DF2-293331B54669, small LPT model
[ 44.375579] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 44.389929] block: extroot: not configured
[ 44.394084] UBIFS (ubi0:5): un-mount UBI device 0
[ 44.398792] UBIFS (ubi0:5): background thread "ubifs_bgt0_5" stops
[ 44.410753] mount_root: overlay filesystem in /dev/fitrw has not been formatted yet
[ 44.798099] F2FS-fs (fitrw): Found nat_bits in checkpoint
[ 44.808758] F2FS-fs (fitrw): Mounted with checkpoint version = 6ae201cd
[ 45.327395] block: attempting to load /tmp/overlay/upper/etc/config/fstab
[ 45.334253] block: unable to load configuration (fstab: Entry not found)
[ 45.341013] block: attempting to load /tmp/overlay/etc/config/fstab
[ 45.347335] block: unable to load configuration (fstab: Entry not found)
[ 45.354053] block: attempting to load /etc/config/fstab
[ 45.359406] block: extroot: not configured
[ 45.365995] UBIFS (ubi0:5): Mounting in unauthenticated mode
[ 45.371701] UBIFS (ubi0:5): background thread "ubifs_bgt0_5" started, PID 1111
[ 45.477950] UBIFS (ubi0:5): UBIFS: mounted UBI device 0, volume 5, name "rootfs_data"
[ 45.485773] UBIFS (ubi0:5): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 45.495675] UBIFS (ubi0:5): FS size: 56250368 bytes (53 MiB, 443 LEBs), max 453 LEBs, journal size 2793472 bytes (2 MiB, 22 LEBs)
[ 45.507312] UBIFS (ubi0:5): reserved for root: 2656843 bytes (2594 KiB)
[ 45.513913] UBIFS (ubi0:5): media format: w5/r0 (latest is w5/r0), UUID 87224234-D0AF-4F55-9DF2-293331B54669, small LPT model
[ 45.527597] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 45.541961] block: extroot: not configured
[ 45.549590] UBIFS (ubi0:5): un-mount UBI device 0
[ 45.554291] UBIFS (ubi0:5): background thread "ubifs_bgt0_5" stops
[ 45.562544] mount_root: overlay filesystem has not been fully initialized yet
[ 45.569903] mount_root: switching to f2fs overlay
[ 45.578128] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off.
[ 45.588930] urandom-seed: Seed file not found (/etc/urandom.seed)
Device "lan1" does not exist.
Cannot find device "lan1"
[ 45.742418] procd: - early -
[ 45.745344] procd: - watchdog -
[ 46.270451] procd: - watchdog -
[ 46.285777] procd: - ubus -
[ 46.441027] procd: - init -
Please press Enter to activate this console.
[ 46.645979] kmodloader: loading kernel modules from /etc/modules.d/*
[ 46.672230] NET: Registered PF_ALG protocol family
[ 46.706475] RPC: Registered named UNIX socket transport module.
[ 46.712398] RPC: Registered udp transport module.
[ 46.717158] RPC: Registered tcp transport module.
[ 46.721850] RPC: Registered tcp-with-tls transport module.
[ 46.727328] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 46.743016] l2tp_core: L2TP core driver, V2.0
[ 46.747985] l2tp_netlink: L2TP netlink interface
[ 46.753413] gre: GRE over IPv4 demultiplexor driver
[ 46.756943] urngd: v1.0.2 started.
[ 46.761822] ip_gre: GRE over IPv4 tunneling driver
[ 46.815712] pca954x 2-0070: supply vdd not found, using dummy regulator
[ 46.823020] i2c i2c-2: Added multiplexed i2c bus 3
[ 46.827944] i2c i2c-2: Added multiplexed i2c bus 4
[ 46.832811] i2c i2c-2: Added multiplexed i2c bus 5
[ 46.837755] i2c i2c-2: Added multiplexed i2c bus 6
[ 46.842546] pca954x 2-0070: registered 4 multiplexed busses for I2C switch pca9545
[ 46.851323] pca953x 3-0020: supply vcc not found, using dummy regulator
[ 46.858084] pca953x 3-0020: using no AI
[ 46.870527] ntfs3: Enabled Linux POSIX ACLs support
[ 46.877289] crypto-safexcel 15600000.crypto: EIP197:331(7,1,8,4)-HIA:272(2,5,5),PE:151/450(alg:7fe1fc00)/240/240/450
[ 46.888590] crypto-safexcel 15600000.crypto: TRC init: 8704d,48a (32r,128h)
[ 46.912578] at24 3-0057: supply vcc not found, using dummy regulator
[ 46.919631] at24 3-0057: 256 byte 24c02 EEPROM, writable, 1 bytes/write
[ 46.926372] at24 6-0051: supply vcc not found, using dummy regulator
[ 46.959624] Bridge firewalling registered
[ 46.964292] usbcore: registered new interface driver cdc_wdm
[ 46.970682] Loading modules backported from Linux version wireless-next-2025-03-20-0-g1794d7ab34d2
[ 46.979650] Backport generated by backports.git a8086f9c
[ 46.985678] ina2xx 3-0040: supply vs not found, using dummy regulator
[ 46.992686] ina2xx 3-0040: error configuring the device: -6
[ 47.014523] rtc-pcf8563 3-0051: low voltage detected, date/time is not reliable.
[ 47.022093] rtc-pcf8563 3-0051: registered as rtc0
[ 47.028106] rtc-pcf8563 3-0051: low voltage detected, date/time is not reliable.
[ 47.035493] rtc-pcf8563 3-0051: hctosys: unable to read the hardware clock
[ 47.044358] sfp sfp1: nonexclusive access to GPIO for mod-def0
[ 47.050273] sfp sfp1: Host maximum power 3.0W
[ 47.054631] sfp sfp1: tx disable 1 -> 1
[ 47.058666] sfp sfp1: SM: enter empty:detached:down event dev_attach
[ 47.065017] sfp sfp1: SM: exit empty:down:down
[ 47.069733] sfp sfp2: nonexclusive access to GPIO for mod-def0
[ 47.075625] sfp sfp2: Host maximum power 3.0W
[ 47.079996] sfp sfp2: tx disable 1 -> 1
[ 47.083978] sfp sfp2: SM: enter empty:detached:down event dev_attach
[ 47.090363] sfp sfp2: SM: exit empty:down:down
[ 47.096773] usbcore: registered new interface driver ums-alauda
[ 47.103353] usbcore: registered new interface driver ums-cypress
[ 47.110100] usbcore: registered new interface driver ums-datafab
[ 47.116693] usbcore: registered new interface driver ums-freecom
[ 47.123275] usbcore: registered new interface driver ums-isd200
[ 47.129967] usbcore: registered new interface driver ums-jumpshot
[ 47.136679] usbcore: registered new interface driver ums-karma
[ 47.143204] usbcore: registered new interface driver ums-sddr09
[ 47.149757] usbcore: registered new interface driver ums-sddr55
[ 47.156469] usbcore: registered new interface driver ums-usbat
[ 47.174317] xt_time: kernel timezone is -0000
[ 47.268312] PPP generic driver version 2.4.2
[ 47.273160] PPP MPPE Compression module registered
[ 47.278534] NET: Registered PF_PPPOX protocol family
[ 47.284016] PPTP driver version 0.8.5
[ 47.288681] usbcore: registered new interface driver qmi_wwan
[ 47.295362] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 47.301501] kmodloader: done loading kernel modules from /etc/modules.d/*
login[1242]: root login on 'ttyS0'
BusyBox v1.36.1 (2025-06-17 03:09:13 UTC) built-in shell (ash)
_______ ________ __
| |.-----.-----.-----.| | | |.----.| |_
| - || _ | -__| || | | || _|| _|
|_______|| __|_____|__|__||________||__| |____|
|__| W I R E L E S S F R E E D O M
-----------------------------------------------------
OpenWrt 24.10-SNAPSHOT, unknown
-----------------------------------------------------
=== WARNING! =====================================
There is no root password defined on this device!
Use the "passwd" command to set up a new password
in order to prevent unauthorized SSH logins.
--------------------------------------------------
root@(none):~# [ 55.875032] UBIFS (ubi0:5): Mounting in unauthenticated mode
[ 55.880768] UBIFS (ubi0:5): background thread "ubifs_bgt0_5" started, PID 2374
[ 56.010424] UBIFS (ubi0:5): UBIFS: mounted UBI device 0, volume 5, name "rootfs_data"
[ 56.018264] UBIFS (ubi0:5): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 56.028166] UBIFS (ubi0:5): FS size: 56250368 bytes (53 MiB, 443 LEBs), max 453 LEBs, journal size 2793472 bytes (2 MiB, 22 LEBs)
[ 56.039804] UBIFS (ubi0:5): reserved for root: 2656843 bytes (2594 KiB)
[ 56.046408] UBIFS (ubi0:5): media format: w5/r0 (latest is w5/r0), UUID 87224234-D0AF-4F55-9DF2-293331B54669, small LPT model
root@OpenWrt:~# [ 58.548024] mtk_soc_eth 15100000.ethernet eth0: Link is Down
[ 59.005594] mtk_ppe: roaming work has been deactivated
[ 59.019247] mtk_ppe: roaming work has been activated
[ 59.024220] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/internal link mode
[ 59.032360] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 10Gbps/Full - flow control rx/tx
[ 59.035174] mt7530-mmio 15020000.switch lan0: configuring for phy/internal link mode
[ 59.049350] br-lan: port 1(lan0) entered blocking state
[ 59.054570] br-lan: port 1(lan0) entered disabled state
[ 59.059846] mt7530-mmio 15020000.switch lan0: entered allmulticast mode
[ 59.066459] mtk_soc_eth 15100000.ethernet eth0: entered allmulticast mode
[ 59.073379] mt7530-mmio 15020000.switch lan0: entered promiscuous mode
[ 59.084270] mt7530-mmio 15020000.switch lan3: configuring for phy/internal link mode
[ 59.092833] br-lan: port 2(lan3) entered blocking state
[ 59.098099] br-lan: port 2(lan3) entered disabled state
[ 59.103353] mt7530-mmio 15020000.switch lan3: entered allmulticast mode
[ 59.110192] mt7530-mmio 15020000.switch lan3: entered promiscuous mode
[ 59.118908] mtk_soc_eth 15100000.ethernet eth2: configuring for fixed/10gbase-r link mode
[ 59.171242] mtk_soc_eth 15100000.ethernet eth2: Link is Up - 10Gbps/Full - flow control rx/tx
[ 59.195790] mxl862xx mdio-bus:10 mxl_lan0: configuring for phy/internal link mode
[ 59.222394] br-lan: port 3(mxl_lan0) entered blocking state
[ 59.228016] br-lan: port 3(mxl_lan0) entered disabled state
[ 59.233618] mxl862xx mdio-bus:10 mxl_lan0: entered allmulticast mode
[ 59.239984] mtk_soc_eth 15100000.ethernet eth2: entered allmulticast mode
[ 59.478467] mxl862xx mdio-bus:10 mxl_lan0: entered promiscuous mode
[ 59.510506] mxl862xx mdio-bus:10: mxl862xx_port_vlan_add: port:0 setting VLAN:1 with vlan_filtering disabled
[ 59.635310] mxl862xx mdio-bus:10 mxl_lan1: configuring for phy/internal link mode
[ 59.660755] br-lan: port 4(mxl_lan1) entered blocking state
[ 59.666366] br-lan: port 4(mxl_lan1) entered disabled state
[ 59.671966] mxl862xx mdio-bus:10 mxl_lan1: entered allmulticast mode
[ 59.895211] mxl862xx mdio-bus:10 mxl_lan1: entered promiscuous mode
[ 59.920733] mxl862xx mdio-bus:10: mxl862xx_port_vlan_add: port:1 setting VLAN:1 with vlan_filtering disabled
[ 60.038164] mxl862xx mdio-bus:10 mxl_lan2: configuring for phy/internal link mode
[ 60.063581] br-lan: port 5(mxl_lan2) entered blocking state
[ 60.069159] br-lan: port 5(mxl_lan2) entered disabled state
[ 60.074753] mxl862xx mdio-bus:10 mxl_lan2: entered allmulticast mode
[ 60.318398] mxl862xx mdio-bus:10 mxl_lan2: entered promiscuous mode
[ 60.343716] mxl862xx mdio-bus:10: mxl862xx_port_vlan_add: port:2 setting VLAN:1 with vlan_filtering disabled
[ 60.460790] mxl862xx mdio-bus:10 mxl_lan3: configuring for phy/internal link mode
[ 60.486203] br-lan: port 6(mxl_lan3) entered blocking state
[ 60.491766] br-lan: port 6(mxl_lan3) entered disabled state
[ 60.497355] mxl862xx mdio-bus:10 mxl_lan3: entered allmulticast mode
[ 60.758450] mxl862xx mdio-bus:10 mxl_lan3: entered promiscuous mode
[ 60.783686] mxl862xx mdio-bus:10: mxl862xx_port_vlan_add: port:3 setting VLAN:1 with vlan_filtering disabled
[ 60.861159] mxl862xx mdio-bus:10 mxl_lan5: configuring for fixed/usxgmii link mode
[ 60.869239] mxl862xx mdio-bus:10 mxl_lan5: Link is Up - 10Gbps/Full - flow control off
[ 60.869445] br-lan: port 7(mxl_lan5) entered blocking state
[ 60.882717] br-lan: port 7(mxl_lan5) entered disabled state
[ 60.888317] mxl862xx mdio-bus:10 mxl_lan5: entered allmulticast mode
[ 61.167538] mxl862xx mdio-bus:10 mxl_lan5: entered promiscuous mode
[ 61.193069] mxl862xx mdio-bus:10: mxl862xx_port_vlan_add: port:12 setting VLAN:1 with vlan_filtering disabled
[ 61.258673] br-lan: port 7(mxl_lan5) entered blocking state
[ 61.264238] br-lan: port 7(mxl_lan5) entered forwarding state
[ 61.274735] mxl862xx mdio-bus:10 mxl_lan5: Link is Down
[ 61.661125] Aeonsemi AS21xxx mdio-bus:18: Firmware Version: 1.9.1
[ 61.667419] mxl862xx mdio-bus:10 mxl_lan5: PHY [mdio-bus:18] driver [Aeonsemi AS21xxx] (irq=POLL)
[ 61.676291] mxl862xx mdio-bus:10 mxl_lan5: configuring for phy/10gbase-r link mode
[ 61.684252] mxl862xx mdio-bus:10: dsa mux: switch to channel1
[ 61.690242] br-lan: port 7(mxl_lan5) entered disabled state
[ 62.081134] Aeonsemi AS21xxx mdio-bus:1c: Firmware Version: 1.9.1
[ 62.087484] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:1c] driver [Aeonsemi AS21xxx] (irq=POLL)
[ 62.096785] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/10gbase-r link mode
[ 62.116671] br-wan: port 1(eth1) entered blocking state
[ 62.121906] br-wan: port 1(eth1) entered disabled state
[ 62.127159] mtk_soc_eth 15100000.ethernet eth1: entered allmulticast mode
[ 62.134035] mtk_soc_eth 15100000.ethernet eth1: entered promiscuous mode
root@OpenWrt:~#
root@OpenWrt:~# [ 66.213241] Per-port-per-queue mode is going to be enabled !
[ 66.218973] PPPQ use qid 3~14 (scheduler 0).
ifconfig
br-lan Link encap:Ethernet HWaddr 06:40:7D:D8:70:8E
inet addr:192.168.1.1 Bcast:192.168.1.255 Mask:255.255.255.0
inet6 addr: fe80::440:7dff:fed8:708e/64 Scope:Link
inet6 addr: fd05:af69:dc21::1/60 Scope:Global
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:256 (256.0 B)
br-wan Link encap:Ethernet HWaddr C2:AC:30:A3:99:55
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
eth0 Link encap:Ethernet HWaddr 06:40:7D:D8:70:8E
inet6 addr: fe80::440:7dff:fed8:708e/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:2 overruns:0 frame:0
TX packets:26 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:3532 (3.4 KiB)
Interrupt:110
eth1 Link encap:Ethernet HWaddr C2:AC:30:A3:99:55
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
Interrupt:110
eth2 Link encap:Ethernet HWaddr 02:EB:B7:2A:86:52
inet6 addr: fe80::eb:b7ff:fe2a:8652/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:1
TX packets:14 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:2256 (2.2 KiB)
Interrupt:110
lan0 Link encap:Ethernet HWaddr 06:40:7D:D8:70:8E
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
lan3 Link encap:Ethernet HWaddr 06:40:7D:D8:70:8E
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:34 errors:0 dropped:0 overruns:0 frame:0
TX packets:34 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:3526 (3.4 KiB) TX bytes:3526 (3.4 KiB)
mxl_lan0 Link encap:Ethernet HWaddr 02:EB:B7:2A:86:52
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
mxl_lan1 Link encap:Ethernet HWaddr 02:EB:B7:2A:86:52
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
mxl_lan2 Link encap:Ethernet HWaddr 02:EB:B7:2A:86:52
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
mxl_lan3 Link encap:Ethernet HWaddr 02:EB:B7:2A:86:52
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
mxl_lan5 Link encap:Ethernet HWaddr 02:EB:B7:2A:86:52
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:1 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:46 (46.0 B)
root@OpenWrt:~#
