¶ BPI-R4 Pro Introduction
Banana Pi BPI-R4Pro Router board with MediaTek MT7988A(Filogic 880) Quad-core ARM Cortex-A73 design ,4GB/8GB DDR4 RAM,8GB eMMC,256MB SPI-NAND flash onboard.It supports 4 x 2.5G network ports and 2 x 10G SFP+/RJ45 ports, support 4G/5G expansion。it is a update version for BPI-R4.
|
MediaTek MT7988 (Filogic 880) design: Banana Pi BPI-R4 Pro Router development board MediaTek MT7988 (Filogic 880) design: Banana Pi BPI-R4 Router development board MediaTek MT7986(Filogic 830) design: Banana Pi BPI-R3 Mini Mini size Router development board MediaTek MT7986(Filogic 830) design: Banana Pi BPI-R3 Router development board |
¶ MediaTek MT7988(Filogic 880)
The MediaTek Filogic 880 platform provides a 36 Gbps Wi-Fi 7 access point/router/gateway solution that delivers the fastest and most reliable connectivity experience.
The MediaTek MT7988A is a world-class network processor designed for high-performance and reliable networking in both wired and wireless applications. It offers a comprehensive set of connectivity interfaces, including four Gigabit Ethernet ports, two USXGMII interfaces, four PCIe interfaces, and two USB 3.2 Gen 1 ports.
The MT7988A further enables seamless tri-band Wi-Fi 7 connectivity across the 2.4 GHz, 5 GHz, and 6 GHz bands, with its Wi-Fi 7 companion chip featuring 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC
To meet the needs of rapidly evolving tunneling applications, the MT7988A comes equipped with the MediaTek Tunnel Offload Processor System (TOPS), which facilitates the processing of a wide range of tunneling protocols. The MT7988A optimizes networking performance with a finely tuned ISA of MediaTek TOPS, delivering premium-level offloading capabilities.
NOTE:Some functions require continuous software updates and improvements.
¶ Application
-
Internet service Router
-
Wifi7 Wireless Router
-
4G/5G Wireless Router
-
Wireless Repeater
-
Home security Gateway
-
Home Automation
-
Nas device
-
Network and communication applications
¶ Key Features
BPI-R4Pro(8X)
-
MediaTek MT7988A Quad-core Arm Cortex-A73,1.8GHz processor
-
8GB DDR4
-
8GB eMMC flash
-
256MB SPI-NAND Flash
-
1x 10G SFP+ WAN and 1x 10G RJ45 WAN(combo with 10G SFP+ WAN)
-
1x 10G SFP+ LAN and 1x 10G RJ45 LAN(combo with 10G SFP+ LAN)
-
4x 2.5G RJ45 LAN
-
1x 1G RJ45 LAN and 1x 1G LAN(FPC Connector)
-
2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC
-
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD
-
3x M.2 B-KEY slots with USB3.2 for 4G/5G Cellular Module
-
1x USB3.2 slot and 1x USB2.0 slot
¶ Getting Start
¶ Hardware
¶ Hardware Layout

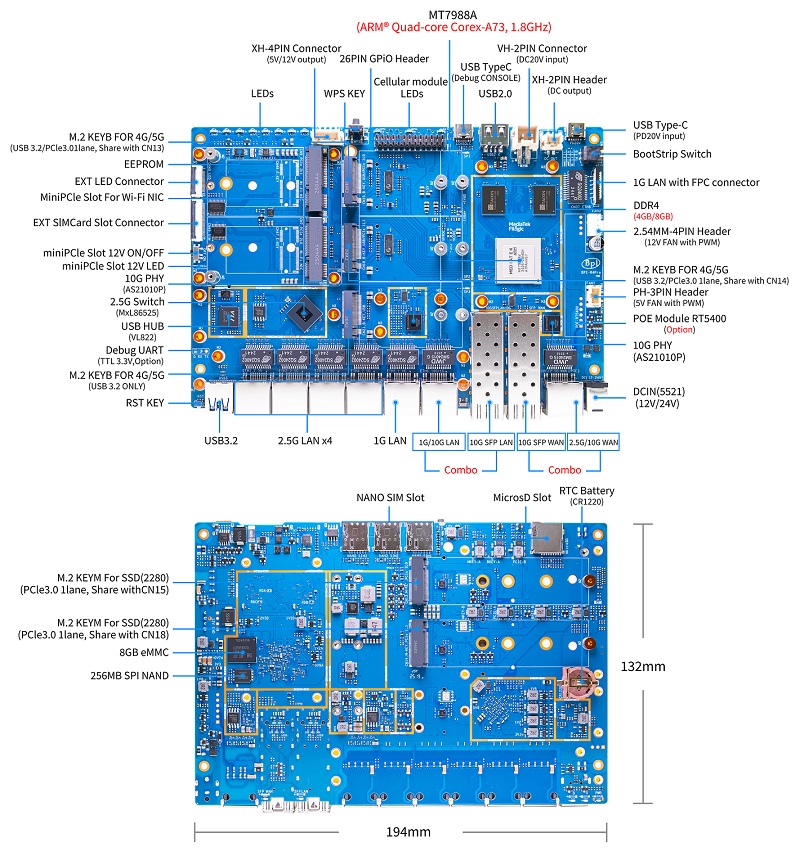

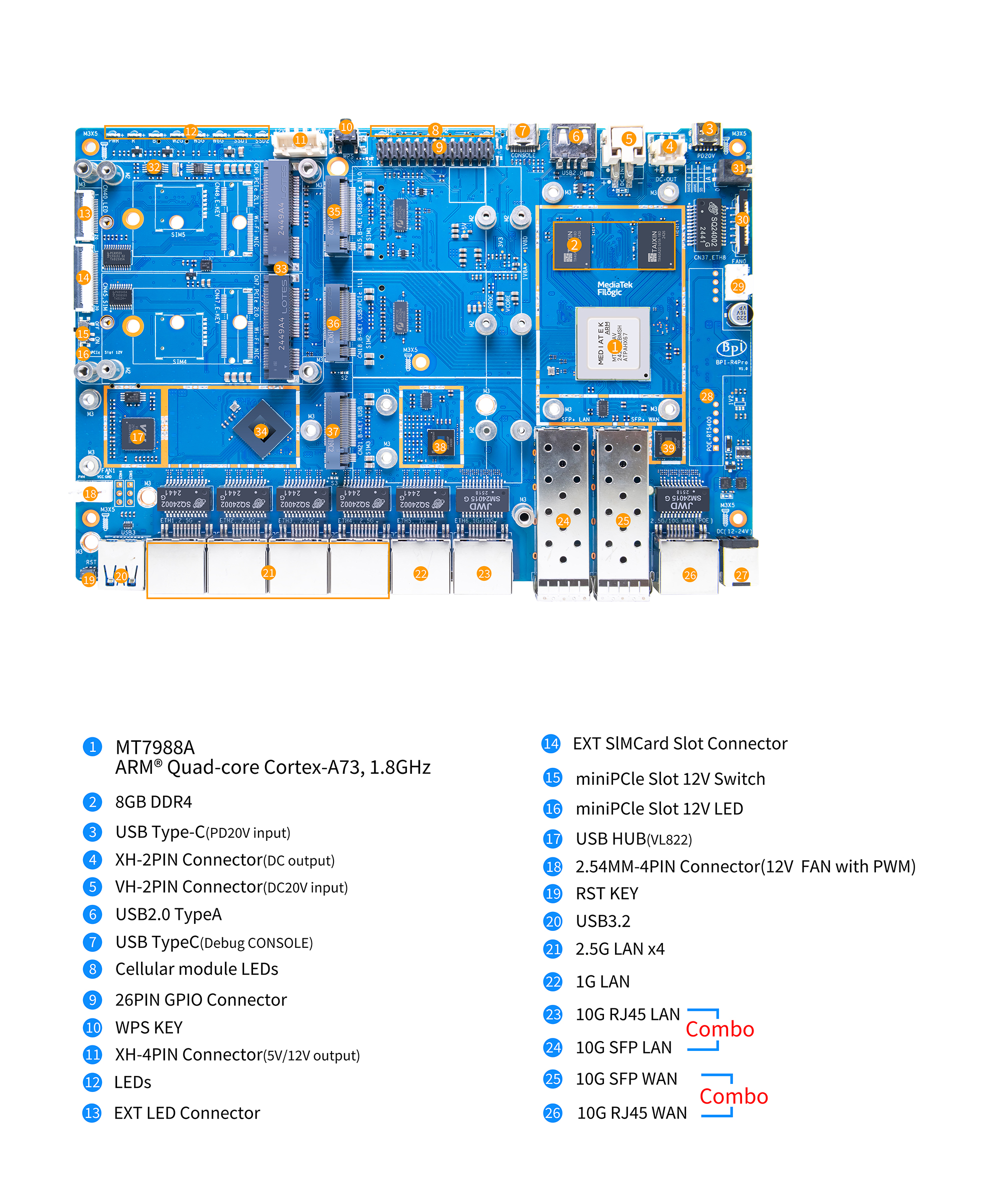

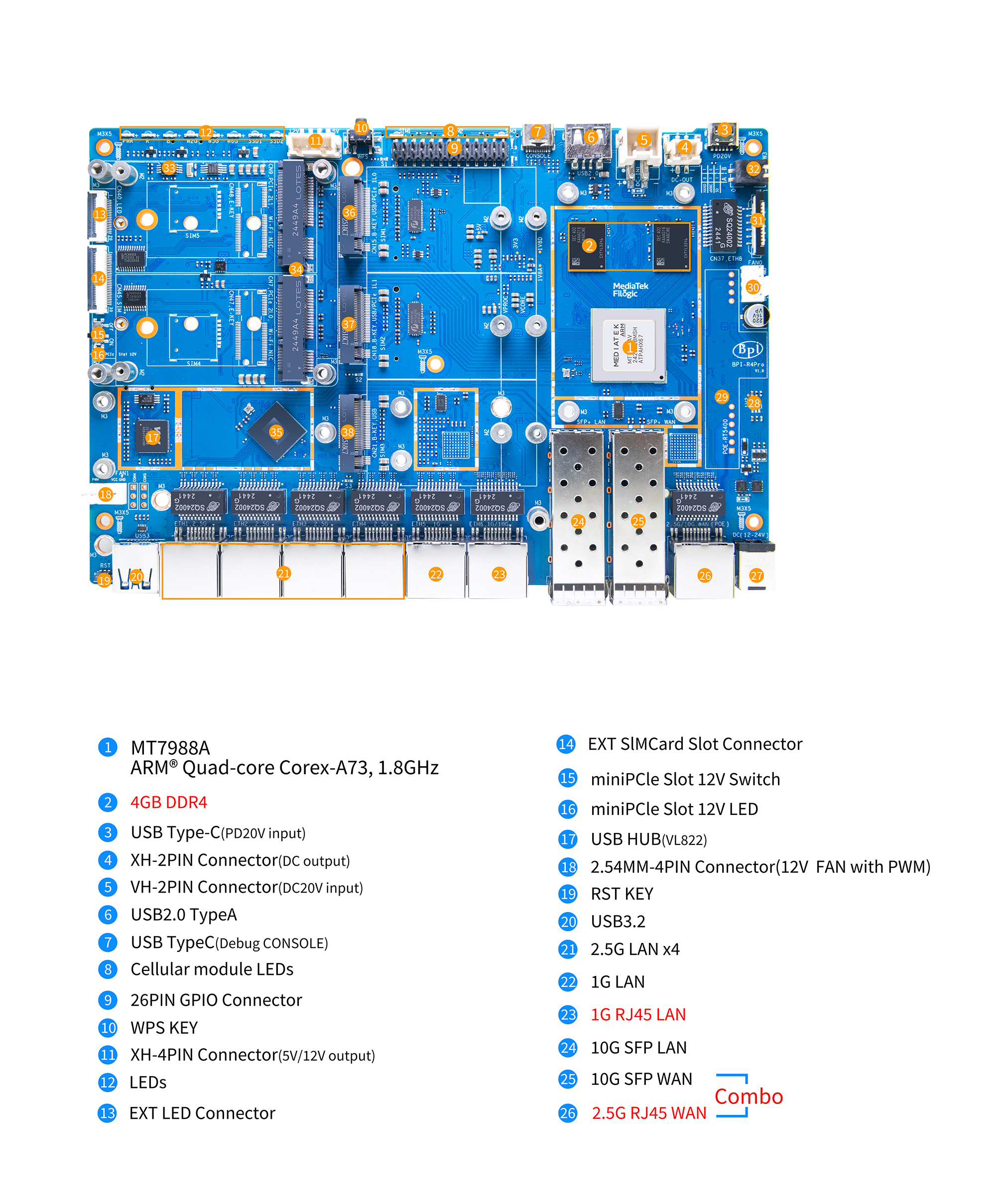

BPI-R4Pro(8X)

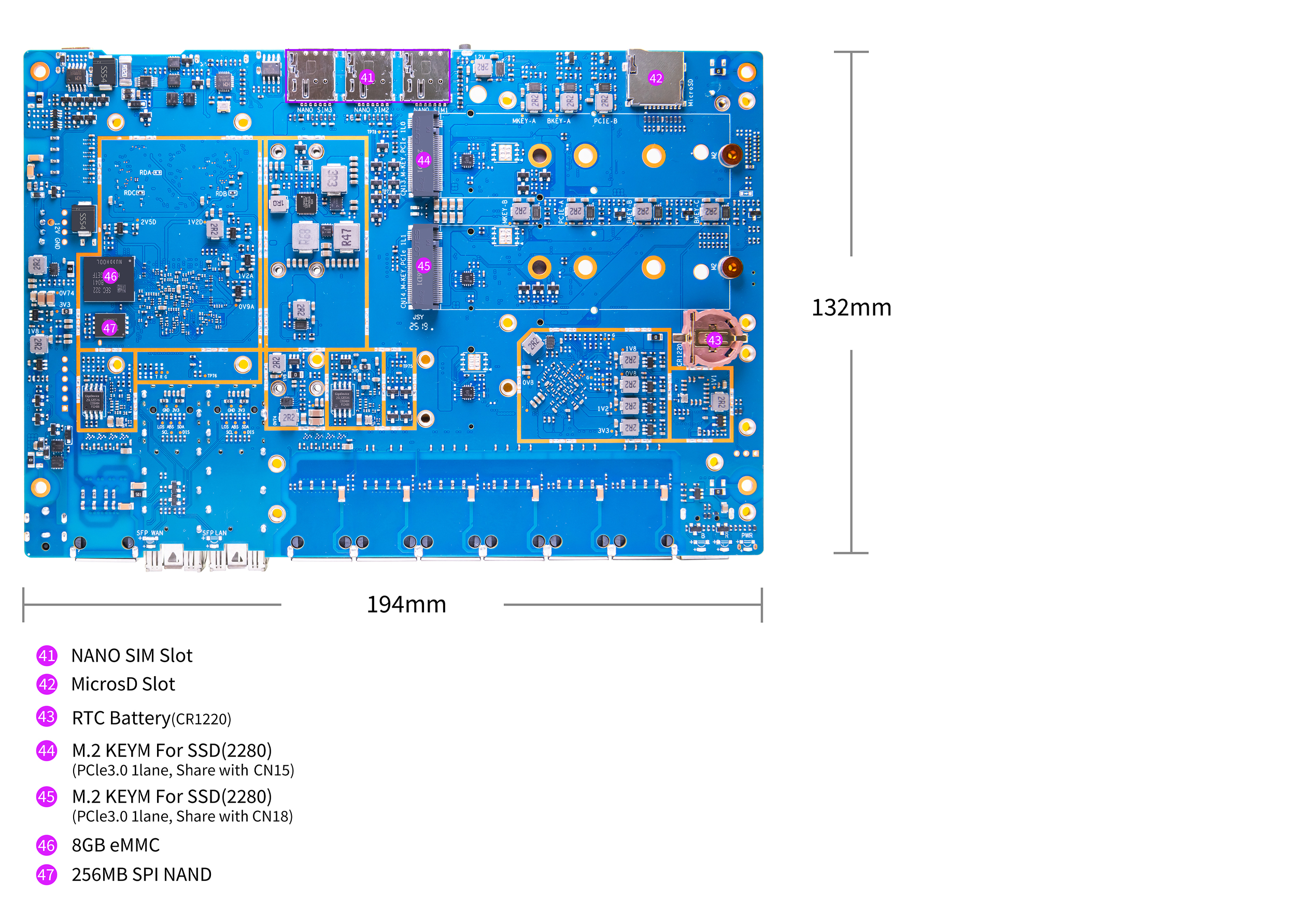

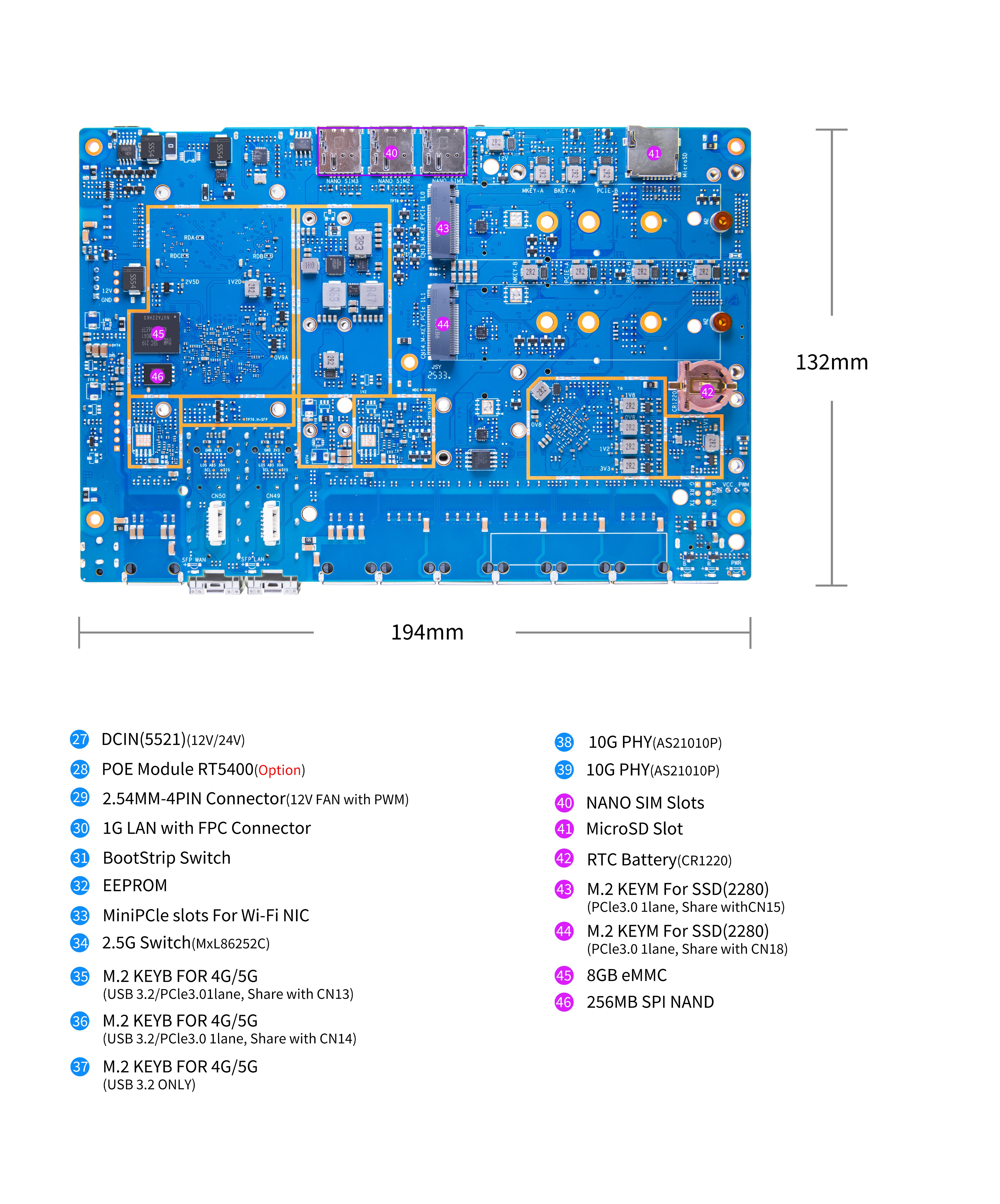

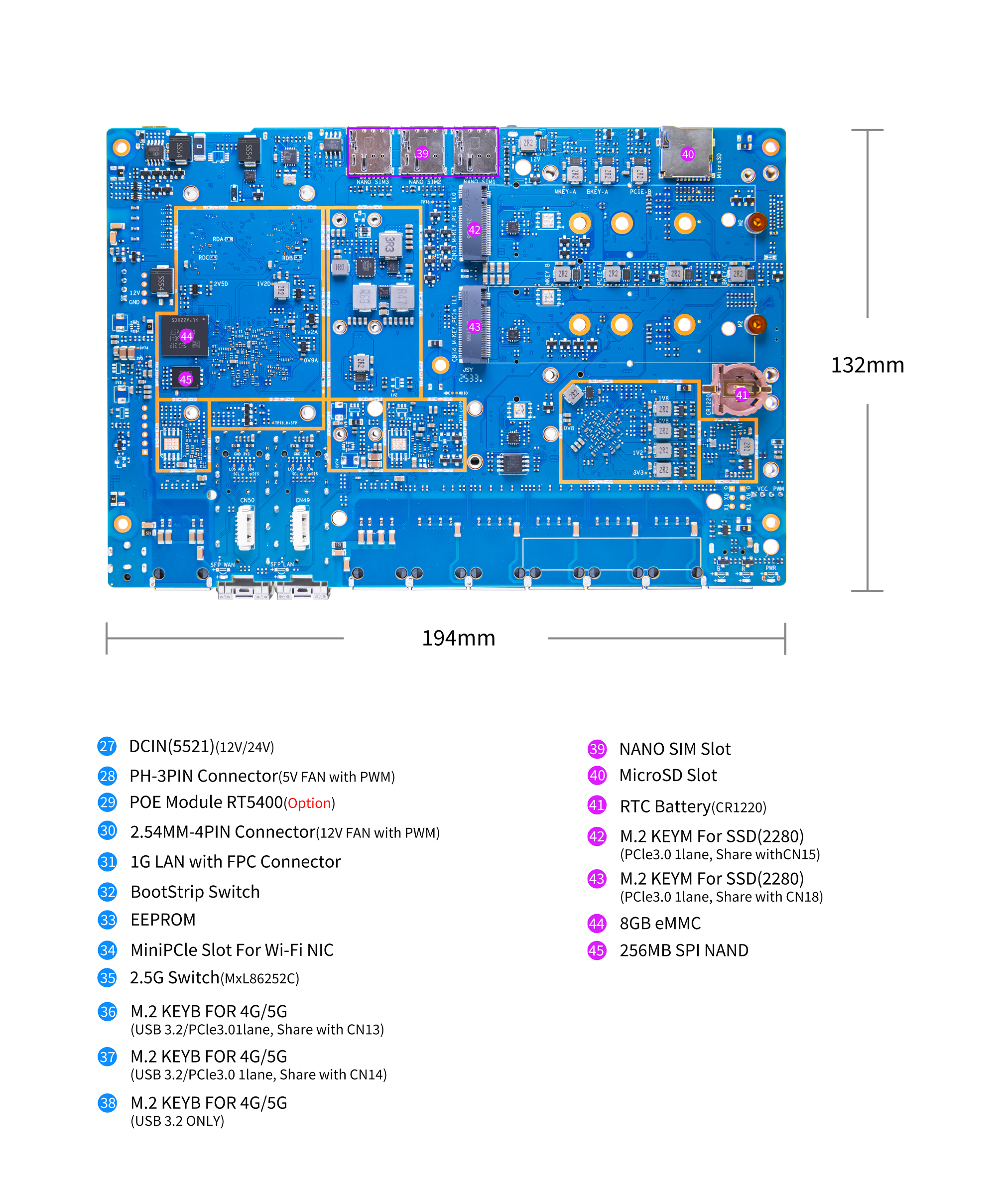

¶ BPI-R4 Pro Photo
¶ Hardware Spec
| HardWare Specification of Banana Pi R4 Pro(8x) | |
|---|---|
CPU |
MediaTek MT7988A Quad-core Arm Cortex-A73,1.8GHz processor |
SDRAM |
8GB DDR4 |
On board Storage |
MicroSD (TF) card Slot |
On board Ethernet |
1x 10G RJ45 WAN(BPI-R4Pro V1.0 ONLY support 10GBASE-T) |
SFP |
1x 10G SFP+ WAN + (combo with 10G RJ45 WAN) |
mini PCIE Slot |
2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC |
M.2 Slot |
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD |
USB |
1x USB3.2 TypeA Connector |
Debug |
1x USB TypeC on board USB-UART Debug Console |
GPIO |
2x13 PIN Header for expanding application |
FAN |
2x Headers with PWM-controlled for fan |
RTC |
1x CR1220 connector for RTC Battery |
Buttons |
Reset button,WPS botton, bootstrap switch |
Leds |
Power status Led and RJ45 Led |
DC Power |
DC5521 12V/5.2A or 19V 3.2A |
Sizes |
132mm x 194mm |
Weight |
about 220g |
¶ Accessories
¶ Case
free discuss on forum: https://forum.banana-pi.org/t/bpi-r4-pro-case-design/23597
- Easy to buy case sample
-
-
BANANAPI Official Shop: https://www.bpi-shop.com/products/bpi-r4-pro-metal-case.html
-
Taobao shop: https://item.taobao.com/item.htm?ft=t&id=995526954605
-
BIPAI Aliexpress shop: https://ko.aliexpress.com/item/1005010407277956.html?gatewayAdapt=glo2kor
-
SINOVOIP Aliexpress shop: https://www.aliexpress.com/item/1005010407173030.html
-
¶ Cooling fan

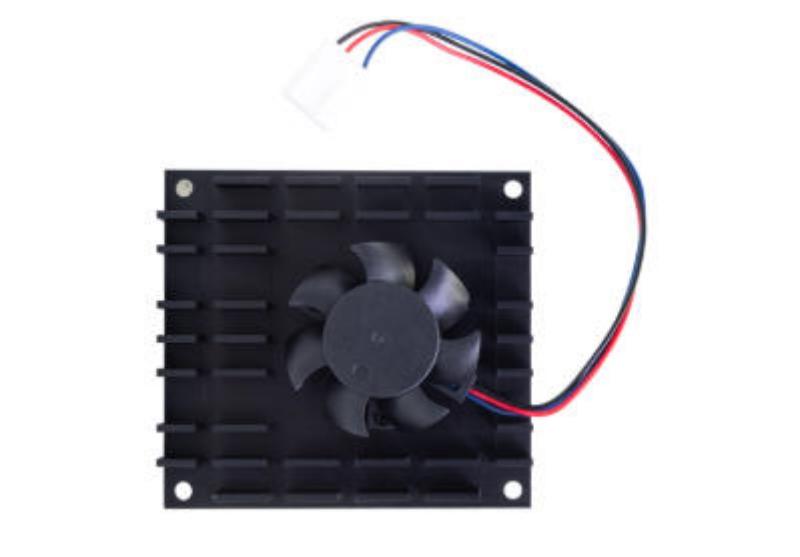

¶ 4010 FAN
- Easy to buy 4010 FAN sample
-
-
BANANAPI Official Shop: https://www.bpi-shop.com/products/4010hmforbpi-r4pro.html
-
Taobao shop: https://item.taobao.com/item.htm?ft=t&id=1002605653849
-
¶ 5020 FAN
- Easy to buy 5020 FAN sample
-
-
BANANAPI Official Shop: https://www.bpi-shop.com/products/5020haforbpi-r4pro.html
-
Taobao shop: https://item.taobao.com/item.htm?ft=t&id=1001802418462
-
¶ 10G SFP Module
- Easy to buy SFP Module sample
-
- 10G SFP+ Copper Module
-
-
BIPAI Aliexpress shop: https://www.aliexpress.com/item/3256806271951703.html?gatewayAdapt=4itemAdapt
-
SINOVOIP Aliexpress shop: https://www.aliexpress.com/item/3256806271841150.html?gatewayAdapt=4itemAdapt
-
Taobao shop: https://item.taobao.com/item.htm?spm=a1z10.5-c-s.w4002-25059194413.13.7d282ac1cYaQ03&id=761569524881
-
- 10G SFP+ Fibre Module
-
-
BIPAI Aliexpress shop: https://www.aliexpress.com/item/3256806271761161.html?gatewayAdapt=4itemAdapt
-
SINOVOIP Aliexpress shop: https://www.aliexpress.com/item/3256806271623117.html?gatewayAdapt=4itemAdapt
-
Taobao shop: https://item.taobao.com/item.htm?spm=a1z10.5-c-s.w4002-25059194413.15.7d282ac1cYaQ03&id=761853438478
-
¶ 4G/5G Module
¶ power supply

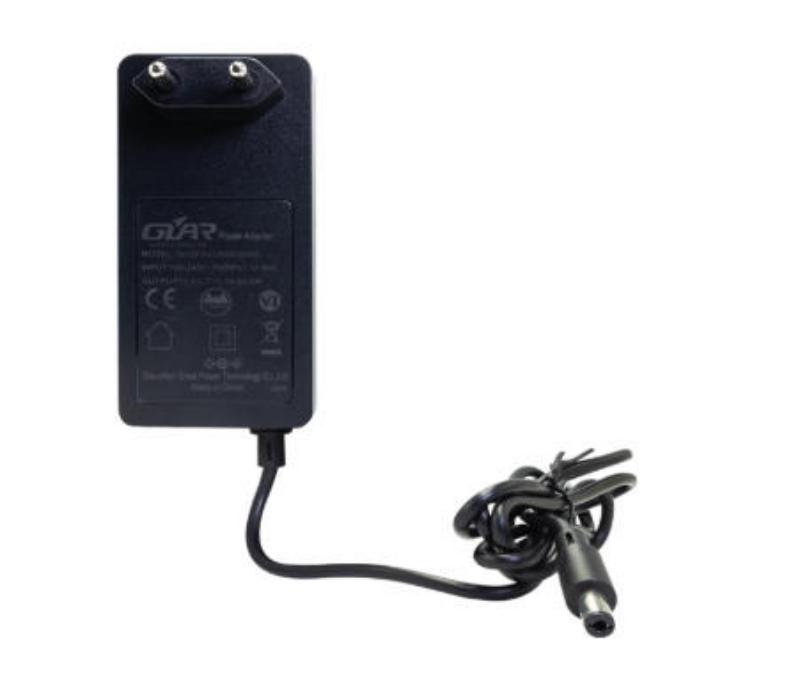

DC12V5A Power supply
- Easy to buy Power supply sample
- DC12V5A Power supply
-
-
BANANAPI Official Shop: https://www.bpi-shop.com/products/12v-5a-dc-power-supply.html
-
Taobao shop: https://item.taobao.com/item.htm?ft=t&id=997917397351
-
¶ Heat sink

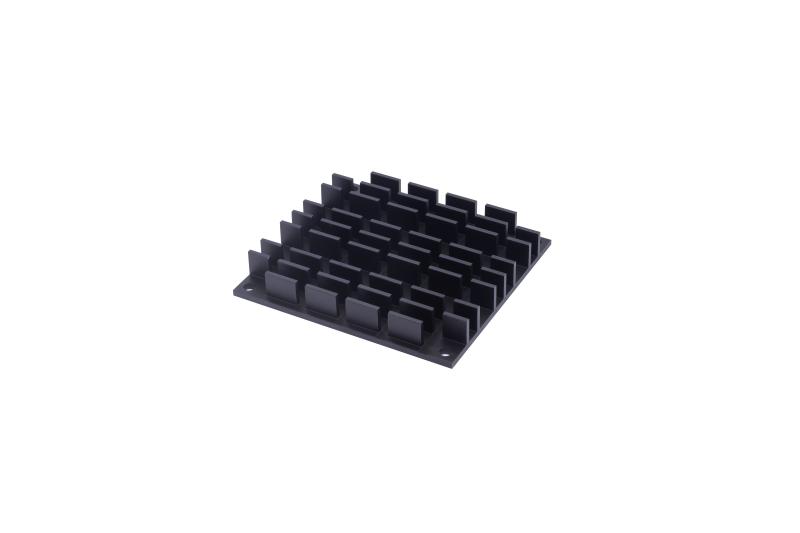

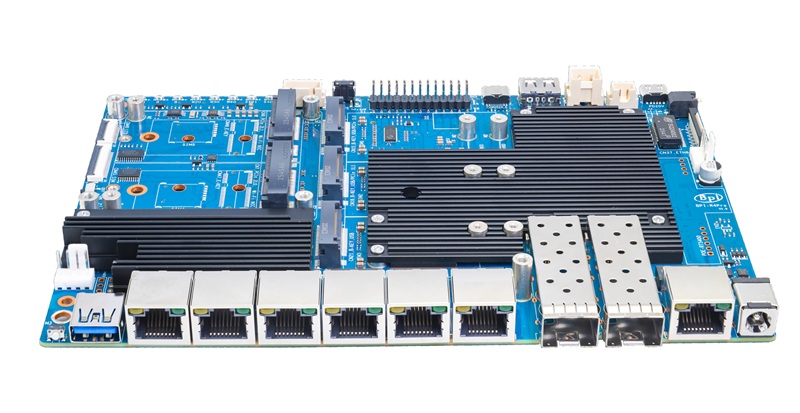

¶ BE14 heatsink
