¶ BPI-R4 Mini Introduction
Banana Pi BPI-R4 Mini Wifi7 smart router board design with MediaTek MT7987A Quad-core Arm Cortex-A53,it support 2GB DDR4 and 8G eMMC Flash on board. 2 x 2.5G RJ45, Wifi7 onboard,Mini Size.
|
MediaTek MT7988 (Filogic 880) design: Banana Pi BPI-R4 Pro Router development board MediaTek MT7988 (Filogic 880) design: Banana Pi BPI-R4 Router development board MediaTek MT7987 (Filogic 860) design: Banana Pi BPI-R4 Lite Router board MediaTek MT7987 (Filogic 860) design: Banana Pi BPI-R4 Mini Wifi7 Router board MediaTek MT7986(Filogic 830) design: Banana Pi BPI-R3 Mini Mini size Router development board MediaTek MT7986(Filogic 830) design: Banana Pi BPI-R3 Router development board |
¶ MediaTek MT7987
The MediaTek MT7987A is a world-leading network processing platform for high-performance and reliable networking experiences, both in wired and wireless applications. The MT7987A comprises a rich connection interface set, including 1 2.5 Gigabit Ethernet port, 2 HSGMII/SGMII interfaces, 1 PCIe 3.0 2L/1+1L interface, and 1 USB 3.2 Gen1 port and 1 USB 2.0 port, where the USB3 port shares the same interface with 1 HSGMII/SGMII interface; only one can be activated at a time. The MT7987A further enables seamless Wi-Fi 7 connectivity with its Wi-Fi 7 companion chip.
¶ Key Features
-
MediaTek MT7987A Quad-core Arm Cortex-A53
-
2GB DDR4(SOC support can up to 4GB)
-
8GB eMMC flash
-
256MB SPI-NAND Flash
-
32MB SPI-NOR Flash
-
Micro SD card slot
-
2 x 2.5G RJ45 WAN
-
Wifi7 onbord
-
1x M.2 KEY-B slot with USB3.0 for 4G/5G Module
-
1x USB TypeC Debug Console
¶ Application direction
-
Internet service Router
-
Wifi 7 Wireless Router
-
4G/5G Wireless Router/CPE
-
Wireless Repeater
-
Home security Gateway
-
Home Automation
-
Nas device
-
Network and communication applications
¶ Getting Start
¶ Hardware
¶ Hardware Interface

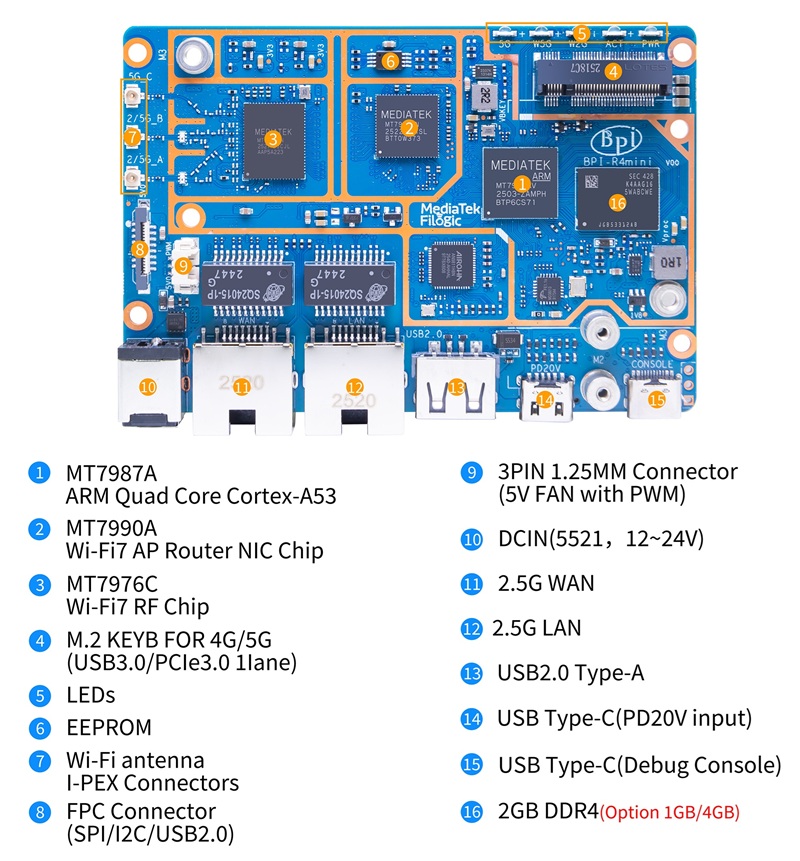

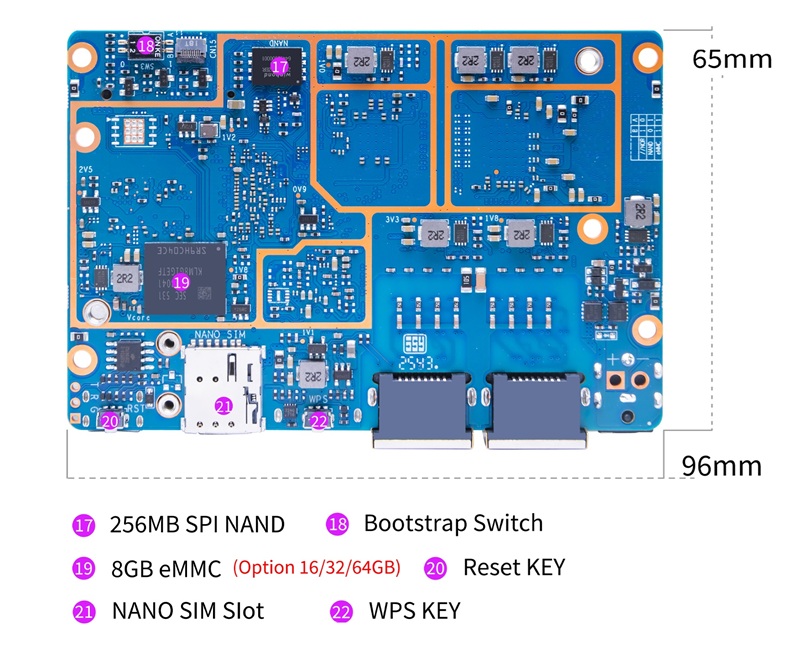

¶ BPI-R4 Mini Photo
¶ Hardware Spec
| HardWare Specification of Banana Pi BPI-R4 Mini | |
|---|---|
CPU |
MediaTek MT7987A Quad-core Arm Cortex-A53 |
SDRAM |
2GB DDR4(SOC support can up to 4GB)/256M nand flash/EEPROM |
On board Storage |
MicroSD (TF) card/8GB eMMC onboard |
On board Network |
2x 2.5G RJ45 Port |
Wifi 7 |
MT7990A and Mt7976C Wifi7 support |
M.2 KEYB PCIE |
support 4G/5G (USB3.0/PCIe3.0 1 lane) |
USB |
1x USB 2.0TypeA/1xType-C(PD20V input)/1xUSB Type-C(debug Console) |
Buttons |
Reset button,WPS Key, boot switch |
Leds |
Power status Led and RJ45 Led |
DC Power |
12V/5.2A |
Sizes |
97mm x 65mm |
Weight |
250g |
