¶ BPI-R2 Pro 介绍
香蕉派 BPI-R2 Pro是香蕉派在2021年推出的下一代智能路由器开发板。搭载瑞芯微 RK3568处理器，内置2GB LPDDR4内存和16GB eMMC存储，支持2个USB 3.0接口，5个千兆网口。M.2 key-E和mini PCIe接口，2个mipi DSI接口（其中一个可通过软件更改为LVDS），1个CSI摄像头接口，1个HDMI输出。
|
瑞芯微(Rockchip) RK3568 设计 : Banana Pi BPI-R2 Pro 路由器板 瑞芯微(Rockchip) RK3568 设计 : Banana Pi BPI-CM2 计算机模块套件 瑞芯微(Rockchip) RK3568 设计 : Banana Pi BPI-KVM 用于KVM over IP的PiKVM |
香蕉派 BPI-CM2计算机模块也采用瑞芯微RK3568设计，如果您想定制自己的产品，您只需要开发基于BPI-CM2的底板，并快速批量生产基于RK 3568解决方案的产品。
| BPI-R2 Pro与Banana Pi BPI-R2尺寸相同，接口也相同，因此可以使用BPI-R2外壳。 |
¶ 关于 Rockchip RK3568
RK3568内置瑞芯微MICRO-research NPU，0.8Tops算力，集成高性能AI加速器RKNN NPU。瑞芯微还为开发者提供了易用的模型转换工具RKNN-Toolkit，支持一键转换Caffe/TensorFlow/TF-Lite/ONNX/PyTorch/Keras/Darknet主流架构模型。
RK3568具有丰富的接口扩展能力。支持多种外设高速接口，支持4个USB2.0端口，4xUSB2.0 HOST + 1xUSB3.0 HOST + 1xUSB3.0 OTG。支持两个千兆以太网，支持多摄像头，支持MIPI CSI 4Lanes，可分为2x2Lanes两组独立使用支持16bit DVP接口，支持BT1120输入，支持VC模式。RK3568具有完整的显示接口，支持HDMI2.0输出支持双通道MIPI DSI，双通道LVDS，可驱动2.5K LCD屏，可直接驱动墨水屏，支持eDp。RK3568具有丰富的外设，支持10 x UART，6 x I2C，16 x PWM，4 x SPI，8 x SARADC和MINI PCIE。
瑞芯微RK3568芯片是一款专为消费行业应用而设计的通用SoC。CPU采用4核A55架构处理器，集成G52 GRAPHICS处理器，内置独立NPU，运行Android 11和Linux。RK3568主要为平板电脑、带屏音箱、安卓笔、字典笔等消费类产品定制，以及人脸支付POS机、电子书、云终端、可视电话、NAS存储等行业产品。
瑞芯微RK 3568芯片是一款高端通用SoC，采用22 nm制程工艺制造，集成4核ARM架构A55处理器和Mali G52 2 EE图形处理器，支持4K解码和1080 P编码。RK 3568支持SATA/PCIE/USB3.0等多种外设接口，内置独立NPU，可用于轻量级AI应用。RK 3568同时支持Android 11和Linux系统，面向物联网网关、NVR存储、工控屏、工业设备、工控盒、卡拉OK、云终端、车控中心等行业定制市场。
¶ 主要特点
-
瑞芯微RK 3568四核ARM Cortex-A55 CPU
-
Mali-G52 1-Core-2EE
-
2G LPDDR 4 SDRAM（可选4G）
-
Mini PCIE接口和M.2 key-e接口
-
支持1个SATA接口
-
MicroSD插槽支持高达256 GB的扩展
-
16 G eMMC闪存（可选16/32/64 G）
-
2 MIPI显示接口支持
-
1个CSI摄像头接口
-
5个 10/100/1000Mb以太网端口
-
2个USB 3.0和1个USB 2.0 otg端口
¶ 硬件

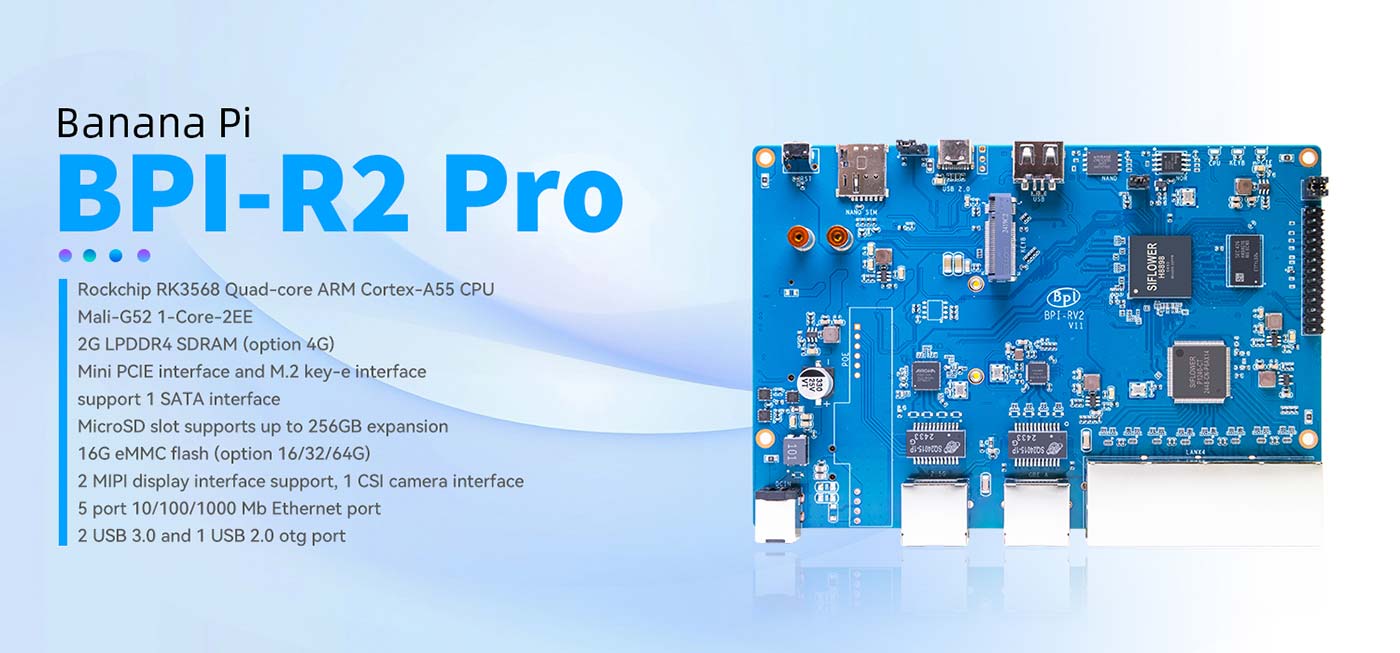

¶ 硬件接口示意图

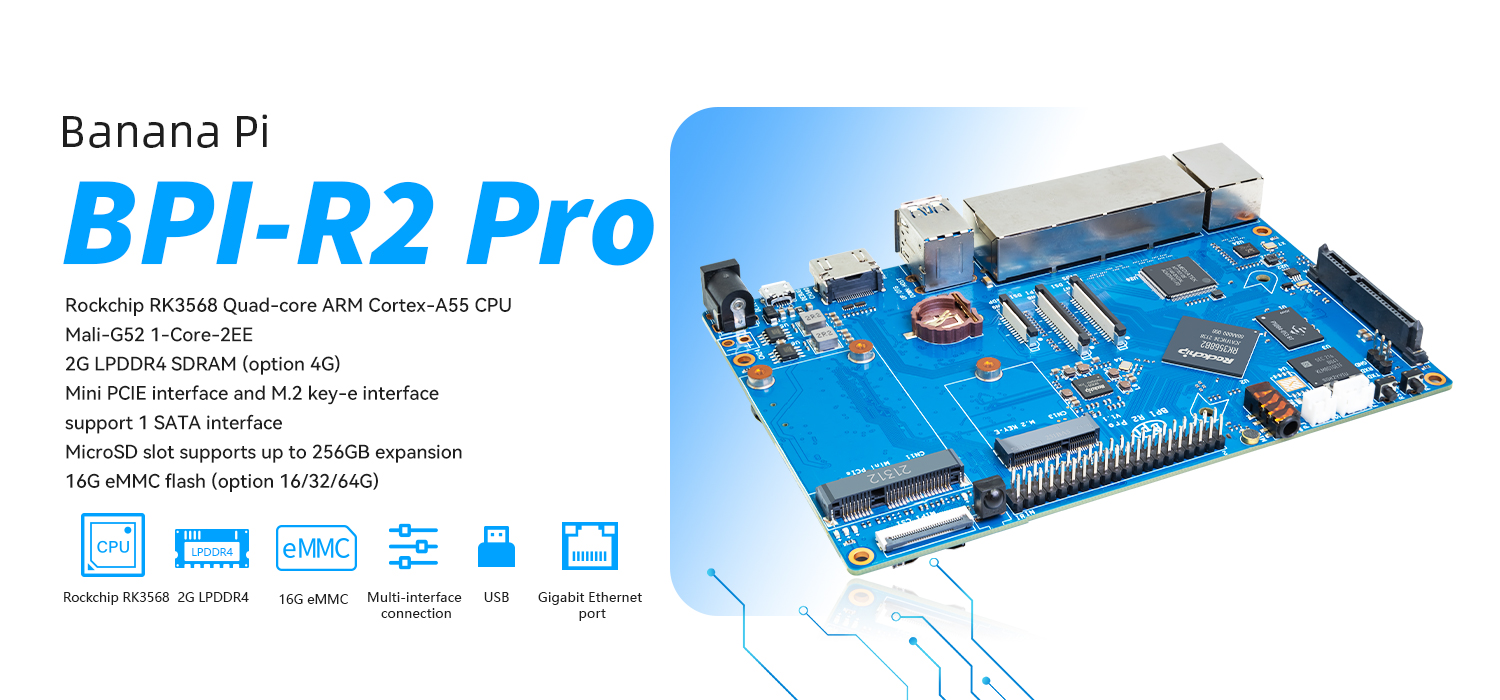

¶ BPI-R2 Pro 图片
¶ 硬件规格
| 香蕉派 R2 Pro 硬件规格 | |
|---|---|
CPU |
瑞芯微RK3568 四核ARM Cortex-A55 CPU 2GHz |
GPU |
Mali-G52 1-Core-2EE OpenGL ES3.2 Vu1kn 1.1 OpenCL 2.0 |
内存 |
2G DDR3 SDRAM (option 4G) |
存储 |
板载16GB eMMC闪存，Micro SD卡插槽，SATA 3.0端口，SPI闪存 |
网络 |
5 x 10/100/1000 Mbit/s 以太网 |
显示 |
1个HDMI接口，2个DSI接口（1个DSI可通过软件转换为LVDS） |
相机 |
1 CSI camera interface |
视频解码器 |
H.265 HEVC/MVC Main10 Profile [email protected] up to 4096x2304@60fps,H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps |
视频编码器 |
H.264/AVC BP/MP/[email protected]，up to 1920x1080@100fps, H.265/HEVC [email protected], up to 1920x1080@100fps (4096x4096@10fps with TILE) |
音频输出 |
HDMI & I2S & Speaker & Headphone |
USB 端口 |
USB 3.0 PORT (x2), micro USB OTG (x1) |
mini PCIE |
1 mini pcie interface & 1 M.2 key-e interface |
远程 |
IR Receiver (x1) |
GPIO |
40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM |
按键 |
Reset, Power, U-boot |
LED |
Power Status and 8P8C |
电源 |
12 volt @2A via DC Power and/or Micro USB (OTG) |
尺寸，重量 |
148 mm × 100.5mm 100g |
OS |
OpenWRT, Linux and others OS |
¶ GPIO 引脚定义
¶ BPI-R2 Pro 40PIN GPIO
| 40 PIN GPIO of Banana pi BPI-R2 Pro | |||
|---|---|---|---|
GPIO Pin Name |
Default ：GPIO |
Function2 |
Function3 |
CON2-P01 |
VCC3V3_SYS |
||
CON2-P02 |
VCC5V0_SYS |
||
CON2-P03 |
GPIO3_B4 |
I2C5_SDA_M0 |
|
CON2-P04 |
VCC5V0_SYS |
||
CON2-P05 |
GPIO3_B3 |
I2C5_SCL_M0 |
|
CON2-P06 |
GND |
||
CON2-P07 |
GPIO3_B5 |
PWM10_M0 |
|
CON2-P08 |
GPIO0_C1 |
UART0_TX |
|
CON2-P09 |
GND |
||
CON2-P10 |
GPIO0_C0 |
UART0_RX |
|
CON2-P11 |
GPIO3_C4 |
UART7_TX_M1 |
PWM14_M0 |
CON2-P12 |
GPIO3_A3 |
I2S3_SCLK_M0_BT |
|
CON2-P13 |
GPIO3_C5 |
UART7_RX_M1 |
SPDIF_TX1_M1 |
CON2-P14 |
GND |
||
CON2-P15 |
GPIO3_B6 |
PWM11_IR_M0 |
|
CON2-P16 |
GPIO0_C4 |
UART0_RTS |
|
CON2-P17 |
VCC3V3_SYS |
||
CON2-P18 |
GPIO0_C7 |
UART0_CTS |
|
CON2-P19 |
GPIO4_C3 |
SPI3_MOSI_M1 |
CAN1_TX |
CON2-P20 |
GND |
||
CON2-P21 |
GPIO4_C5 |
SPI3_MISO_M1 |
UART9_TX |
CON2-P22 |
GPIO4_C4 |
SPDIF_TX |
|
CON2-P23 |
GPIO4_C2 |
SPI3_CLK_M1 |
CAN1_RX |
CON2-P24 |
GPIO4_C6 |
SPI3_CS0_M1 |
UART9_RX |
CON2-P25 |
GND |
||
CON2-P26 |
GPIO3_C3 |
UART5_RX_M1 |
|
CON2-P27 |
GPIO1_A4 |
||
CON2-P28 |
GPIO3_C2 |
UART5_TX_M1 |
|
CON2-P29 |
GPIO1_B0 |
||
CON2-P30 |
GND |
||
CON2-P31 |
GPIO1_B1 |
||
CON2-P32 |
GPIO4_D2 |
||
CON2-P33 |
GPIO1_B2 |
||
CON2-P34 |
GND |
||
CON2-P35 |
GPIO3_A4 |
I2S3_LRCK_M0_BT |
|
CON2-P36 |
GPIO3_A2 |
I2S3_MCLK_M0 |
|
CON2-P37 |
GPIO2_D7 |
||
CON2-P38 |
GPIO3_A6 |
I2S3_SDI_M0_BT |
|
CON2-P39 |
GND |
||
CON2-P40 |
GPIO3_A5 |
I2S3_SDO_M0_BT |
|
¶ BPI-R2 Pro Debug UART
CON3-P1 |
GND |
CON3-P2 |
UART0-RX |
CON3-P3 |
UART0-TX |
¶ BPI-R2 Pro Camera(CN6)
CSI Pin Name |
Default Function |
Function2：GPIO |
CN6-P01 |
GND |
|
CN6-P02 |
MIPI_CSI_D3N |
|
CN6-P03 |
MIPI_CSI_D3P |
|
CN6-P04 |
GND |
|
CN6-P05 |
MIPI_CSI_D2N |
|
CN6-P06 |
MIPI_CSI_D2P |
|
CN6-P07 |
GND |
|
CN6-P08 |
MIPI_CSI_CLK1N |
|
CN6-P09 |
MIPI_CSI_CLK1P |
|
CN6-P10 |
GND |
|
CN6-P11 |
MIPI_CSI_D1N |
|
CN6-P12 |
MIPI_CSI_D1P |
|
CN6-P13 |
GND |
|
CN6-P14 |
MIPI_CSI_D0N |
|
CN6-P15 |
MIPI_CSI_D0P |
|
CN6-P16 |
GND |
|
CN6-P17 |
MIPI_CSI_CLK0N |
|
CN6-P18 |
MIPI_CSI_CLK0P |
|
CN6-P19 |
NC/MIPI_CAM0_PDN |
|
CN6-P20 |
CAM0_CLKOUT |
|
CN6-P21 |
CAM0_IRCUT |
|
CN6-P22 |
I2C2_SCL_M1 |
|
CN6-P23 |
I2C2_SDA_M1 |
|
CN6-P24 |
CAM0_CSI_RST |
|
CN6-P25 |
VCC1V8_DOVDD |
|
CN6-P26 |
GND |
|
CN6-P27 |
GND |
|
CN6-P28 |
VCC33 |
|
CN6-P29 |
VCC33 |
|
CN6-P30 |
VCC33 |
¶ MIPI LCD0(CN8)
DSI Pin Name |
Default Function |
Function2 |
CN8-P01 |
NC |
|
CN8-P02 |
VCC3V3_LCD0 |
|
CN8-P03 |
VCC3V3_LCD0 |
|
CN8-P04 |
GND |
|
CN8-P05 |
MIPI_LCD0_RST |
|
CN8-P06 |
SARADC_VIN5 |
|
CN8-P07 |
GND |
|
CN8-P08 |
MIPI_DSI_TX0_D0N |
LVDS_TX0_D0N |
CN8-P09 |
MIPI_DSI_TX0_D0P |
LVDS_TX0_D0P |
CN8-P10 |
GND |
|
CN8-P11 |
MIPI_DSI_TX0_D1N |
LVDS_TX0_D1N |
CN8-P12 |
MIPI_DSI_TX0_D1P |
LVDS_TX0_D1P |
CN8-P13 |
GND |
|
CN8-P14 |
MIPI_DSI_TX0_CLKN |
LVDS_TX0_CLKN |
CN8-P15 |
MIPI_DSI_TX0_CLKP |
LVDS_TX0_CLKP |
CN8-P16 |
GND |
|
CN8-P17 |
MIPI_DSI_TX0_D2N |
LVDS_TX0_D2N |
CN8-P18 |
MIPI_DSI_TX0_D2P |
LVDS_TX0_D2P |
CN8-P19 |
GND |
|
CN8-P20 |
MIPI_DSI_TX0_D3N |
LVDS_TX0_D3N |
CN8-P21 |
MIPI_DSI_TX0_D3P |
LVDS_TX0_D3P |
CN8-P22 |
GND |
|
CN8-P23 |
NC |
|
CN8-P24 |
NC |
|
CN8-P25 |
GND |
|
CN8-P26 |
LCD0_BL_PWM |
|
CN8-P27 |
MIPI0_LCM_PWMOUT |
|
CN8-P28 |
NC |
|
CN8-P29 |
NC |
|
CN8-P30 |
GND |
|
CN8-P31 |
LED0- |
|
CN8-P32 |
LED0- |
|
CN8-P33 |
NC |
|
CN8-P34 |
TP_INT_L_GPIO0_B5 |
|
CN8-P35 |
TP_RST_L_GPIO0_B6 |
|
CN8-P36 |
I2C1_SCL_TP |
|
CN8-P37 |
I2C1_SDA_TP |
|
CN8-P38 |
NC |
|
CN8-P39 |
LED0+ |
|
CN8-P40 |
LED0+ |
¶ MIPI LCD1(CN7)
DSI Pin Name |
Default Function |
Function2 |
CN7-P01 |
NC |
|
CN7-P02 |
VCC3V3_LCD1 |
|
CN7-P03 |
VCC3V3_LCD1 |
|
CN7-P04 |
GND |
|
CN7-P05 |
MIPI_LCD1_RST |
|
CN7-P06 |
SARADC_VIN2 |
|
CN7-P07 |
GND |
|
CN7-P08 |
MIPI_DSI_TX1_D0N |
|
CN7-P09 |
MIPI_DSI_TX1_D0P |
|
CN7-P10 |
GND |
|
CN7-P11 |
MIPI_DSI_TX1_D1N |
|
CN7-P12 |
MIPI_DSI_TX1_D1P |
|
CN7-P13 |
GND |
|
CN7-P14 |
MIPI_DSI_TX1_CLKN |
|
CN7-P15 |
MIPI_DSI_TX1_CLKP |
|
CN7-P16 |
GND |
|
CN7-P17 |
MIPI_DSI_TX1_D2N |
|
CN7-P18 |
MIPI_DSI_TX1_D2P |
|
CN7-P19 |
GND |
|
CN7-P20 |
MIPI_DSI_TX1_D3N |
|
CN7-P21 |
MIPI_DSI_TX1_D3P |
|
CN7-P22 |
GND |
|
CN7-P23 |
NC |
|
CN7-P24 |
NC |
|
CN7-P25 |
GND |
|
CN7-P26 |
LCD1_BL_PWM |
|
CN7-P27 |
MIPI1_LCM_PWMOUT |
|
CN7-P28 |
NC |
|
CN7-P29 |
NC |
|
CN7-P30 |
GND |
|
CN7-P31 |
LED1- |
|
CN7-P32 |
LED1- |
|
CN7-P33 |
NC |
|
CN7-P34 |
TP_INT_L_GPIO0_B5 |
|
CN7-P35 |
TP_RST_L_GPIO0_B6 |
|
CN7-P36 |
I2C1_SCL_TP |
|
CN7-P37 |
I2C1_SDA_TP |
|
CN7-P38 |
NC |
|
CN7-P39 |
LED1+ |
|
CN7-P40 |
LED1+ |
¶ EDP LCD(CN9)
DSI Pin Name |
Default Function |
Function2 |
CN9-P01 |
EDP_TX_AUXN |
|
CN9-P02 |
EDP_TX_AUXP |
|
CN9-P03 |
EDP_TX_D0P |
|
CN9-P04 |
EDP_TX_D0N |
|
CN9-P05 |
EDP_TX_D1P |
|
CN9-P06 |
EDP_TX_D1N |
|
CN9-P07 |
EDP_TX_D2P |
|
CN9-P08 |
EDP_TX_D2N |
|
CN9-P09 |
EDP_TX_D3P |
|
CN9-P10 |
EDP_TX_D3N |
|
CN9-P11 |
NC |
|
CN9-P12 |
NC |
|
CN9-P13 |
NC |
|
CN9-P14 |
NC |
|
CN9-P15 |
LCD1_RST |
|
CN9-P16 |
LCD1_BL_PWM |
|
CN9-P17 |
SARADC_VIN4 |
|
CN9-P18 |
VCC3V3_LCD1 |
|
CN9-P19 |
VCC3V3_LCD1 |
|
CN9-P20 |
GND |
|
CN9-P21 |
GND |
|
CN9-P22 |
GND |
|
CN9-P23 |
VCC12V_LCD1 |
|
CN9-P24 |
VCC12V_LCD1 |
运行在android11系统上，连接2x dsi面板+ 1x eDP面板: https://www.youtube.com/watch?v=HpDAmNVDwXI
¶ 定制生产
RK3568定制板、工控板
¶ 发展
¶ 源代码
¶ Linux
| linux-4.19.xx kernel BSP Source code on github ： https://github.com/BPI-SINOVOIP/BPI-R2PRO-BSP/ |
| linux-5.10.66 kernel BSP Source code on github ： https://github.com/BPI-SINOVOIP/BPI-R2PRO-BSP-5.10.x/ |
¶ Android
|
BPI-R2 PRO Android11 Source Code : Baidu Cloud: https://pan.baidu.com/s/1c2vw-df4hh55VB3gSsM6Uw?pwd=8888 (Pincode: 8888) |
¶ 开发资料
| Because of the Google security update some of the old links will not work if the images you want to use cannot be downloaded from the new link bpi-image Files |
| All banana pi docement(SCH file,DXF file,and doc) |
| BPI-R2 Pro schematic diagram : https://drive.google.com/file/d/1aDOL8U6-4bxn7iB_MzCOgHoDhUu0wuQu/view?usp=sharing |
| BPI-R2 Pro DXF file ： https://drive.google.com/file/d/1N9AWJVHC4fZEko5_RIkc3pI0gK1I0XiV/view?usp=sharing |
| MT7531 switch chip datasheet: https://drive.google.com/file/d/1aVdQz3rbKWjkvdga8-LQ-VFXjmHR8yf9/view?usp=sharing |
| RTL8367RB-VB-CG Switch chip datasheet: https://drive.google.com/file/d/1Rua-SRJLPoV0NLnvwJg-fopsD178KIts/view?usp=sharing |
| BPI-R2 Pro CE,FCC,RoHS certificate : https://banana-pi.org/en/bpi-honor/ |
| Install google play on Bananapi BPI-R2 pro Android 11/12: https://www.youtube.com/watch?v=pMKBVcJhsx4 |
¶ 系统镜像
¶ All image
| 网盘包含Linux-4.19.xx和linux-5.10.66内核版本，linux-5.10.66内核版本可支持DSA功能。 |
Baidu ： https://pan.baidu.com/s/1u5bIp0fMJPre-j0bXGfDWA?pwd=i8q6 Pincode: i8q6
¶ Android
| All Android image can find here: |
Google Drive: https://drive.google.com/drive/folders/1Bs0lhnukZ4A_BmbY-QPiJsFguPXh6imh?usp=share_link
Baidu Cloud: https://pan.baidu.com/s/19_nZls-1tzAsIB3_B-PWrg?pwd=6zw8 (pincode: 6zw8)
| 2023-03-17-Android11-atv-bpi-r2pro.img |
Google Drive: https://drive.google.com/drive/folders/1TZMsaeg99bC8WwxEb8zOMTOAA0TurQ_E?usp=share_link
Baidu Cloud: https://pan.baidu.com/s/1_Hb0dB_4mHhTXiWP6TAzDA?pwd=bdxa (pincode: bdxa)
| 2023-03-17-Android11-bpi-r2pro.img |
Google Drive: https://drive.google.com/drive/folders/108SbohEB8OsWYaxvFeYhGDzxHaUJ1OcW?usp=share_link
Baidu Cloud: https://pan.baidu.com/s/1FKdN2b3qA2Cc4syO15zbng?pwd=rnxd (pincode: rnxd)
| 2022-11-16 release, Android12-bpi-r2pro.img |
Baidu Cloud: https://pan.baidu.com/s/1tQ5Fg47R0fpUajYpNIsJ3g?pwd=8888 (pincode: 8888)
MD5: a7b5faf7818f1ab2d36253a5d3ca1d18
| 2022-06-10 release, Android 11 with kernel 4.19.219, tablet variant image |
Baidu Cloud: https://pan.baidu.com/s/1EUiGaXuPxAkR69g7EOnVaw?pwd=4n6c (pincode: 4n6c)
MD5: ebd336bad0c27c66ae65a4d38103bced
| 2022-06-10 release, Android 11 with kernel 4.19.219, atv variant image |
Baidu Cloud: https://pan.baidu.com/s/1RbNf1dFqMxy1Dx_ysym82w?pwd=v4u8 (pincode: v4u8)
MD5: 49506a8a3183ab189046b5e2e2833b87
¶ Linux
¶ Ubuntu
| kernel 5.10.66 , support DSA feature, Ubuntu 16.04. Ubuntu 20.04, Ubunutu 22.04. |
Baidu : https://pan.baidu.com/s/19B6AYrHfbIFgRytTpW8Mbg?pwd=6me6 Pincode: 6me6
¶ Debian
| kernel 5.10.66, support DSA feature, Debian10. |
Baidu : https://pan.baidu.com/s/19B6AYrHfbIFgRytTpW8Mbg?pwd=6me6 Pincode: 6me6
¶ Third part image
¶ Armbian
| 2023-07 Armbian_2023.02.0 for BPI-R2 PRO |
Baidu Cloud: https://pan.baidu.com/s/1Ey02SbYbTjdYpiB1MdgL7A?pwd=8888 (pincode:8888)
¶ Armbian and LibreELEC
¶ OperWRT
| kernel 5.10.66, support DSA feature, OpenWRT |
Baidu : https://pan.baidu.com/s/19B6AYrHfbIFgRytTpW8Mbg?pwd=6me6 Pincode: 6me6
¶ 购买链接
| BPI-R2 Pro RK3568 OEM&ODM : [email protected] |
