¶ K3 Pico-ITX Introduction
The K3 Pico-ITX is an ultra-integrated mini AI single-board computer. Within a compact 2.5-inch form factor, it integrates 60 TOPS of general-purpose AI computing power, an 8-core RVA23 processor, and 8 intelligent computing cores. Its unified memory architecture allows for smooth deployment of large models with 30 billion parameters. Onboard UFS storage (3.4 times faster than eMMC) and a full-featured Type-C port (65W PD power supply + 4K DP display) enable a "one-line-to-use" experience. Dual M.2 expansion slots (including PCIe Gen3 x4) and a 10 Gigabit fiber optic port support high-speed storage and cluster deployment. Real-time core-to-core output of flexible I/O such as EtherCAT and CAN-FD meets microsecond-level motion control requirements. Its industrial-grade architecture, combined with the eDP display interface, helps industry customers quickly evaluate and integrate systems, accelerating the commercialization of AI edge computing and robotics.

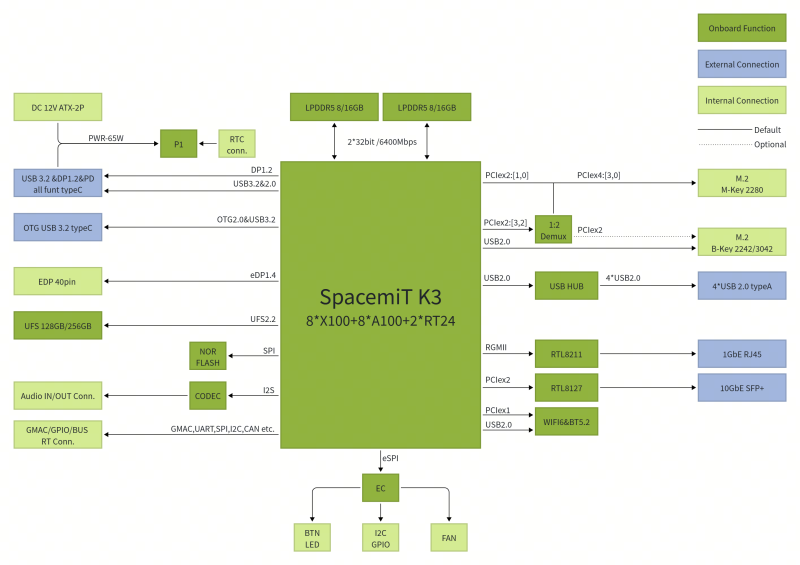

¶ About SpacemiT K3
¶ Key Features
-
Intelligent computing integration
-
The K3 8-core processor is compliant with RVA23 standards, offering 60 TOPS of general-purpose AI computing power, and supports IME extensions and full virtualization.
-
The computing cores and intelligent computing cores share a unified memory architecture, supporting the deployment of models with 30 billion parameters.
-
-
Ready to use
-
Onboard UFS local storage offers 3.4 times faster speeds than industry-standard onboard eMMC.
-
A full-featured Type-C interface supports 65W PD protocol power supply and 4K DP display, requiring only one cable to instantly power up computing capabilities.
-
-
Flexible expansion
-
It features dual expansion slots: an M.2 B-Key slot and an M-Key slot. The M-Key slot uses a 4-lane PCIe Gen3 design, allowing for full-chain NVMe SSD expansion.
-
It features onboard 10 Gigabit PCIe Ethernet and supports 10G-BASE-R fiber optic interfaces, enabling low-latency, high-throughput data transmission and supporting clustered deployment.
-
-
Rapid integration
-
Onboard eDP interface for high-definition screens used in industrial applications, supporting system integration of display products.
-
The RT24 real-time core features a flexible expansion I/O slot that supports interfaces such as EtherCAT and CAN-FD, meeting the needs of applications such as microsecond-level motion control and robotics.
-
The MUSE series architecture features a tiered cooling and heating system for optimal CPU computing power release.
-
¶ Getting Started
¶ Hardware
¶ board interface
¶ board Specification
| The M.2 B-Key PCIe ×2 lanes are shared with the M-Key slot; when both are populated, the M.2 M-Key operates at PCIe Gen3 ×2. |
| HardWare Specification of K3 Pico-ITX RISC-V core board | |
|---|---|
Module |
describe |
processor |
The SpacemiT K3, with 8 cores at 2.4GHz, integrates 60 TOPS of AI computing power, complies with the RVA23 standard, and supports IME vector extension and full virtualization. |
display |
DP Type-C interface, supports up to 4K 3840 × 2160 resolution, 60Hz refresh rate |
40-pin EDP interface, supports up to 2.5K 2560 × 1600 resolution, 90Hz refresh rate |
|
Memory |
Dual-channel 2 × 32bit LPDDR5, 6400MT/s speed, 16GB/32GB capacity optional. |
Local storage |
UFS 2.2, 128GB/256GB capacity available |
Storage expansion |
M.2 B-Key connector, compatible with 2242/3042 form factor expansion cards, PCIe Gen3 x2 and USB signal* |
Real-time scaling |
FPC connectors support real-time signal expansion such as EtherCAT, 5-channel CAN-FD, SPI, I2C, and UART |
Wireless |
Onboard PCIe Wi-Fi 6 + BT5.2 module, compliant with 802.11a/b/g/n/ac/ax standards, dual antennas, dual frequency |
wired network |
Supports one Ethernet port, RJ45 interface, 1000M/100M adaptive speed |
Optical Network |
10GbE SFP+ port, supports 10GBASE-R / 10GBASE-X, QinQ, MSI-X, WOL, and clustering |
Audio |
Onboard CODEC, internal audio input/output |
USB |
2 × USB 3.2 Gen1 Type-C (1 full-featured, one OTG) |
4 × USB 2.0 Type-A Host |
|
Debug |
UART, JTAG, and 3 side buttons for power, reset, and firmware update |
System Management |
Onboard EC controller for power, thermal, and system status; includes I²C/UART/GPIO expansion |
Form Factor |
100 × 86 mm, Pico-ITX Plus single-board computer, approx. size of a 2.5" drive |
OS |
Pre-installed Bianbu 3.0; supports Ubuntu 26.04, OpenHarmony 6.0, OpenKylin, Deepin, Fedora, etc. |
Power Input |
Type-C USB-PD (65 W) or ATX 2-pin 12 V @ 7 A |
Reliability |
ESD protection: board: ±4 kV (contact), ±8 kV (air); system: ±6 kV (contact), ±12 kV (air) |
Compliant with CCC, CE, and FCC; operating temp: -20 °C ～ 70 °C (consumer) / -40 °C ～ 85 °C (industrial) |
|
Clock |
Onboard RTC with battery interface, supports G3 state |
Structure |
Optional single-board or fan-cooled heatsink assembly |
Optional single-board or fully-metal industrial chassis |
|
Optional real-time board, touchscreen, terminal blocks |
|
¶ Accessories
| Category | Name | Description | Interface |
|---|---|---|---|
Peripheral |
SSD |
980 NVMe™ M.2 SSD, PCIe Gen 3.0 ×4, NVMe 1.4,sequential read up to 3,500 MB/s,sequential write up to 3,000 MB/s |
M.2 M-Key 2280 |
SSD |
B+M NVMe SSD 128 GB |
M.2 B-Key 2242 |
|
4G Module |
EM05 |
M.2 B-Key 3042 |
|
SATA Expansion Card |
PCIe to 5 × SATA interface |
M.2 M-Key 2280 |
|
Docking Station |
Type-C dock for HD 4K display, PD charging,USB 3.0 for tablets/laptops (3-in-1) |
Full-featured Type-C |
|
Ultra HD Display |
16" 2.5K LCD, 90 Hz, 2560 × 1600 |
40-pin eDP |
|
Real-time Control Expansion |
Board 19 V input, 5 × CAN-FD, EtherCAT, RS232 & RS485 I/O, industrial-grade isolation protection |
FPC |
|
Structural Accessory |
Embedded Fan Heatsink |
Custom aluminum design |
FAN |
Metal Chassis |
120 × 120 × 48 mm self-developed metal chassis |
BTN |
