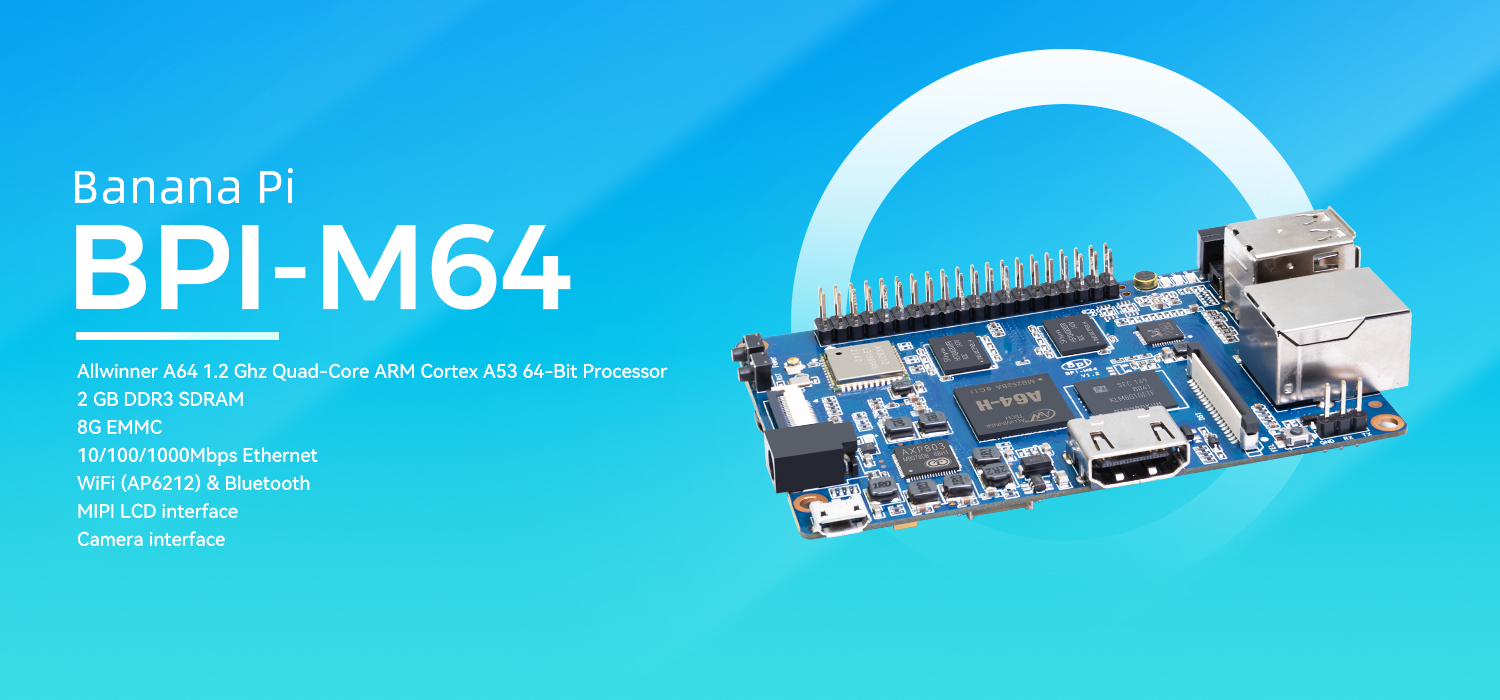

¶ BPI-M64 Introduction
Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M64 has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and lastly a DC power port. The processor is pin-to-pin comptialbe with R18, so it comes with two versions: M64 and M64-R18.
Also being a member of the Banana Pi family, the M64 is a big jump from the octa-core BPI-M3. This is because this Banana Pi BPI is named after its 64-bit SoC. BPI-M64 will be reserved for an upcoming board
BPI-M64 is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
¶ Key Features
-
Allwinner A64 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor.
-
2 GB DDR3 SDRAM
-
8G EMMC
-
10/100/1000Mbps Ethernet
-
WiFi (AP6212) & Bluetooth
-
MIPI LCD interface
-
Camera interface
¶ Getting Start
¶ Hardware
¶ Hardware Interface
¶ Hardware Spec
| HardWare Specification of Banana Pi M64 | |
|---|---|
CPU |
Allwinner 64 Bit Quad Core ARM Cortex A53 1.2 GHz CPU |
GPU |
Dual core Mali 400 MP2 GPU |
Memory |
2GB LPDDR3 (shared with GPU) |
Storage |
MicroSD slot with support for up to 256GB expansion and 8G eMMC flash with support for up to 64GB |
Network |
10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth 4.0 |
Video Input(s) |
A CSI input connector allows for the connection of a designed camera module |
Video Output(s) |
1080p capable HDMI port and multi-channel audio output (NO H./X.265 capabilities) |
Audio Input(s) |
On board microphone |
Audio Output(s) |
3.5mm jack and HDMI |
USB ports |
USB 2.0 PORT (x2), USB OTG (x1) |
Remote |
IR Receiver |
GPIO |
40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM |
Switches |
Reset, Power and U-boot |
LED |
Power Status and 8P8C |
Power Source |
5 volt @2A via DC Power and/or Micro USB (OTG) |
Size & Weight |
92x60mm, 48g |
OS |
Android and Linux |
¶ GPIO Pin Define
¶ BPI-M64 40PIN GPIO
| 40 PIN GPIO of Banana pi BPI-M64 | |||
|---|---|---|---|
GPIO Pin Name |
Default Function |
Function2：GPIO |
Function3 |
CON2-P01 |
VCC-3V3 |
||
CON2-P02 |
VCC-5V |
||
CON2-P03 |
TWI1-SDA |
PH3 |
|
CON2-P04 |
VCC-5V |
||
CON2-P05 |
TWI1-SCK |
PH2 |
|
CON2-P06 |
GND |
||
CON2-P07 |
PH6 |
PH6 |
|
CON2-P08 |
UART2-TX |
PB0 |
|
CON2-P09 |
GND |
||
CON2-P10 |
UART2-RX |
PB1 |
|
CON2-P11 |
PH7 |
PH7 |
|
CON2-P12 |
UART2-CTS |
PB3 |
|
CON2-P13 |
DMIC-CLK |
PH10 |
|
CON2-P14 |
GND |
||
CON2-P15 |
DMIC-DIN |
PH11 |
|
CON2-P16 |
UART2-RTS |
PB2 |
|
CON2-P17 |
VCC-3V3 |
||
CON2-P18 |
PD4 |
PD4 |
|
CON2-P19 |
SPI1-MOSI |
PD2 |
UART4-TX |
CON2-P20 |
GND |
||
CON2-P21 |
SPI1-MISO |
PD3 |
UART4-RX |
CON2-P22 |
PC0 |
PC0 |
|
CON2-P23 |
SPI1-CLK |
PD1 |
UART3-RX |
CON2-P24 |
SPI1-CS |
PD0 |
UART3-TX |
CON2-P25 |
GND |
||
CON2-P26 |
PC2 |
PC2 |
|
CON2-P27 |
PC4 |
PC4 |
|
CON2-P28 |
PC3 |
PC3 |
|
CON2-P29 |
PC7 |
PC7 |
|
CON2-P30 |
GND |
||
CON2-P31 |
PCM0-BCLK |
PB5 |
|
CON2-P32 |
PCM0-DIN |
PB7 |
|
CON2-P33 |
PCM0-SYNC |
PB4 |
|
CON2-P34 |
GND |
||
CON2-P35 |
PCM0-DOUT |
PB6 |
|
CON2-P36 |
PL9 |
PL9 |
|
CON2-P37 |
PL12 |
PL12 |
|
CON2-P38 |
PL7 |
PL7 |
|
CON2-P39 |
GND |
||
CON2-P40 |
PL8 |
PL8 |
|
¶ CSI Camera Connector specification
| CSI camer PIN define of Banana pi BPI-M64 | ||
|---|---|---|
CSI Pin Name |
Default Function |
Function2：GPIO |
CN5-P01 |
NC |
|
CN5-P02 |
GND |
|
CN5-P03 |
CSI0-SDA |
PE13 |
CN5-P04 |
CSI0-AVDD |
|
CN5-P05 |
CSI0-SCK |
PE12 |
CN5-P06 |
CSI0-Reset |
PE16 |
CN5-P07 |
CSI0-VSYNC |
|
CN5-P08 |
CSI0-PWDN |
PE17 |
CN5-P09 |
CSI0-HSYNC |
PE2 |
CN5-P10 |
CSI0-DVDD |
|
CN5-P11 |
CSI0-DOVDD |
|
CN5-P12 |
CSI0-D7 |
PE11 |
CN5-P13 |
CSI0-MCLK |
PE1 |
CN5-P14 |
CSI0-D6 |
PE10 |
CN5-P15 |
GND |
|
CN5-P16 |
CSI0-D5 |
PE9 |
CN5-P17 |
CSI0-PCLK |
PE0 |
CN5-P18 |
CSI0-D4 |
PE8 |
CN5-P19 |
CSI0-D0 |
PE4 |
CN5-P20 |
CSI0-D3 |
PE7 |
CN5-P21 |
CSI0-D1 |
PE5 |
CN5-P22 |
CSI0-D2 |
PE6 |
CN5-P23 |
GND |
|
CN5-P24 |
CSI0-AFVCC |
|
¶ MIPI DSI (Display Serial Interface)
| MIPI DSI display PIN define of Banana pi BPI-M64 | ||
|---|---|---|
DSI Pin Name |
Default Function |
Function2：GPIO |
CN6-P01 |
VCC |
|
CN6-P02 |
IPSOUT |
|
CN6-P03 |
VCC |
|
CN6-P04 |
IPSOUT |
|
CN6-P05 |
GND |
|
CN6-P06 |
IPSOUT |
|
CN6-P07 |
GND |
|
CN6-P08 |
IPSOUT |
|
CN6-P09 |
NC |
|
CN6-P10 |
GND |
|
CN6-P11 |
NC |
|
CN6-P12 |
DSI-D0N |
|
CN6-P13 |
NC |
|
CN6-P14 |
DSI-D0P |
|
CN6-P15 |
NC |
|
CN6-P16 |
GND |
|
CN6-P17 |
TWI0-SDA |
PH1 |
CN6-P18 |
DSI-D1N |
|
CN6-P19 |
TWI0-SCK |
PH0 |
CN6-P20 |
DSI-D1P |
|
CN6-P21 |
CTP-INT |
PH4 |
CN6-P22 |
GND |
|
CN6-P23 |
CTP-RST |
PH8 |
CN6-P24 |
DSI-CKN |
|
CN6-P25 |
GND |
|
CN6-P26 |
DSI-CKP |
|
CN6-P27 |
LCD-BL-EN |
PD5 |
CN6-P28 |
GND |
|
CN6-P29 |
LCD-RST |
PD6 |
CN6-P30 |
DSI-D2N |
|
CN6-P31 |
LCD-PWR-EN |
PD7 |
CN6-P32 |
DSI-D2P |
|
CN6-P33 |
GND |
|
CN6-P34 |
GND |
|
CN6-P35 |
LCD-PWM |
PL10 |
CN6-P36 |
DSI-D3N |
|
CN6-P37 |
GND |
|
CN6-P38 |
DSI-D3P |
|
CN6-P39 |
NC |
|
CN6-P40 |
GND |
|
¶ BPI-M64 Debug UART
CON2 P03 |
UART0-TXD |
PB8 |
CON2 P02 |
UART0-RXD |
PB9 |
CON2 P01 |
GND |
¶ Development
¶ Source Code
¶ Linux
| BPI-M64 (allwnner A64) Linux 4.4 source code: https://github.com/BPI-SINOVOIP/BPI-M64-bsp-4.4 |
Forum pthread: http://forum.banana-pi.org/t/banana-pi-bpi-m64-allwnner-a64-linux-4-4-source-code-public-on-github/6706
| BPI-M64 Linux kernel 3.4 BSP code: https://github.com/BPI-SINOVOIP/BPI-M64-bsp |
¶ Android
| BPI-M64 Android 7 source code |
Download link : https://github.com/BPI-SINOVOIP/BPI-A64-Android7
| BPI-M64 Android 6.0.1 source code |
Download link : https://drive.google.com/open?id=0B_YnvHgh2rwjdTRVRVFaSHd2cnc
¶ Win 10 IoT
| BPI-M64 Win10 IoT source code: https://bananapi.gitbooks.io/bpi-m64/content/en/sourcecodeongithub.html |
¶ Robot Operating System (ROS)
| BPI-M64 Robot Operating System (ROS) |
¶ Resources
| Because of the Google security update some of the old links will not work if the images you want to use cannot be downloaded from the new link bpi-image Files |
| All banana pi docement(SCH file,DXF file,and doc) |
| Schematic diagram: |
Google driver :google driver
Baidu cloud : http://pan.baidu.com/s/1kVRpcYb
| DXF file google download link: https://drive.google.com/file/d/0B4PAo2nW2KfnajlEY0xsdjNxY3c/view?usp=sharing |
| Allwinner A64 chip datasheet: https://drive.google.com/file/d/0B4PAo2nW2KfnSW9lQnZ0d1RoVW8/view?usp=sharing |
| Allwinner A64 user’s manual (720 pages): https://drive.google.com/file/d/0B4PAo2nW2KfnNHk4dkFJZEdqYXc/view?usp=sharing |
| AXP803 Datasheet V1.0.pdf : https://drive.google.com/file/d/1nRbP1T02KlNZBbTJx4BHW5wVWvQPmDxC/view?usp=sharing |
| A64 chip linux-sunxi wiki: http://linux-sunxi.org/A64 |
| BPI-M64 linux-sunxi wiki: https://linux-sunxi.org/Banana_Pi_M64 |
| Recording: burning the linux image to EMMC on M64 for the first time: https://forum.banana-pi.org/t/recording-burning-the-linux-image-to-emmc-on-m64-for-the-first-time/15477 |
| Other document about allwinner A64 chip: http://bundie.neterra.net:8080/a64/ |
| Battery interface spec ： https://drive.google.com/file/d/0B4PAo2nW2KfnSmVuVDhQc0NLdG8/view?usp=sharing |
| BPI-M64 quality guarantee: |
BPI-M64 BT Lab test : https://bananapi.gitbooks.io/bpi-m64/content/en/bpi-m64bt40labtest.html
BPI-M64 WIFI Lab test : https://bananapi.gitbooks.io/bpi-m64/content/en/bpi-m264wifilabtest.html
BPI-M64 Validation test : https://bananapi.gitbooks.io/bpi-m64/content/en/bpi-m64validationtestreport.html
¶ Basic Development
¶ Win 10 IoT
| Banana pi BPI-M64 IOT certifying pass by Microsoft: windows 10 iot core |
BPI-M64 for Win10 IoT : https://catalog.azureiotsolutions.com/details?title=Allwinner_Banana_Pi_BPI_M64&source=all-devices-page
test on BPI-M64
¶ Windows 10 IoT Core for BPI-M64 Release Note
| The Unified Extensible Firmware Interface (UEFI]) is a specification that defines a software interface between an operating system and platform firmware. UEFI replaces the Basic Input/Output System (BIOS) firmware interface originally present in all IBM PC-compatible personal computers AllWinner UEFI Firmware Release Notes |
| This document describes how to build AllWinner UEFI Firmware and bring a AllWinner dev board up with it. The AllWinner UEFI Firmware, as the major boot system for AllWinner-Windows platform, is based on the EDK2 framework which is open-source and with some AllWinner platform software packages injected. |
| Some updates: |
-
Update the OS version to build v.10.0.15063.0 \(Creators Update\)
-
New page style of Device Portal, visit https://deviceipaddr:8080 to check it
-
Built-in Cortana assistant, need to be enabled in settings page in default app and Device Portal
-
Support on-screen keyboard, need to be enabled in Device Portal
-
Enable 100M Ethernet and fix some bugs
-
Support built-in UART bus in A64 SoC\(not built in the ffu, later provide driver binary and deployment helper\)
-
Support built-in IR module in A64 SoC\(not built in the ffu, later provide source code and dev doc for developers in community\)
| Known Issues: |
-
Kernel debug is enabled by default. This will slow the bring-up process. If a kernel debug is not necessary for you, visit Device Portal and navigate to Processes→Run Command page
-
run this command to disable : Bcdedit /store C:\EFIESP\EFI\Microsoft\boot\BCD /set {default} debug off
-
An PnP bug in audio device may cause a blue screen when acting software shutdown
-
Ethernet device may not start with problem code 12 at the first time to bring up
| And another bomb! I uploaded core driver binaries and packaging toolchains on GitHub! |
Here is the repo address: https://github.com/Leeway213/BSP-aw1689
And also some driver source code here with A64 datasheet in readme: https://github.com/Leeway213/driver-samples
Welcome makers developers and anyone-elsers to post your feedback.
¶ Microsoft Azure IoT
| We have test BPI-M64 with Microsoft Azure IoT with aarch64 Ubuntu 18.04 Linux |
Microsoft Azure IoT Edge using DPS with TPM 2.0 SLB9670 : https://www.youtube.com/watch?v=k9_GSQgKlqk&feature=youtu.be
Microsoft Azure IoT Edge using DPS with TPM 2.0 ST33 i2c : https://www.youtube.com/watch?v=2MrO1-esjwI&feature=youtu.be
¶ Amazon AWS Greengrass
| Banana Pi BPI-M64 passed Amazon AWS Greengrass: https://devices.amazonaws.com/detail/a3G0h000000OvPoEAK/Banana-Pi-BPI-M64 |
¶ System Image
¶ Android
| 2020-07-10 update, Android 7.1, base on kernel 3.10 |
| 2018-10-24 update Android 6.0 ,HDMI & LCD7, based on kernel 3.10. |
HDMI Version Image Links
Baidu Drive : https://pan.baidu.com/s/1ZginIvO3LVakqokIZAX1Xw
LCD7 Version Image Links
Baidu Drive : https://pan.baidu.com/s/1oKMx_Ml5K1Jv7-qeS-NMsQ
| 2018-10-24 update ,Android 7.0 HDMI & LCD7, based on kernel 3.10. |
HDMI Version Image Links：
Baidu Drive : https://pan.baidu.com/s/15b32TXdh6752c-GBnR-Zeg
LCD7 Version Image Links:
Baidu Drive : https://pan.baidu.com/s/1a9RYKSTRhCO-UzFfIoGCtQ
| 2018-10-24 update, Android 8.1 HDMI & LCD7, based on kernel 3.10. |
HDMI Version Image Links:
Baidu Drive : https://pan.baidu.com/s/1lz57HrqNHx6f_Q6nk0oZvA
LCD7 Version Image Links:
Baidu Drive : https://pan.baidu.com/s/1MteYqyBp8LeECjcDteCTZQ
Forum pthread: http://forum.banana-pi.org/t/banana-pi-bpi-m64-new-images-android-6-0-7-0-8-1-release-2018-10-24/7107
| 2018-9-17 update android 6.0,HDMI & LCD7 |
HDMI Version Image Links:
Baidu Drive : https://pan.baidu.com/s/1s_orgiEI7JU_hUgjnpd25w
LCD7 Version Image Links:
Baidu Drive : https://pan.baidu.com/s/1K0HYPiQe6nGvAS5bAAFHow
| 2018-08-17 update,android 8.1,HDMI & LCD7 |
This release is for banana pi M64 board which is based on Allwinner A64, We have two images release，Android 8.1 is based on kernel 4.9
Baidu Drive : https://pan.baidu.com/s/1PQgJCUo6cY3wWxJ7rZrk-A
Forum pthread: http://forum.banana-pi.org/t/bananapi-bpi-m64-a64-new-image-android-8-1-ubuntu-release-2018-08-17/6531
| 2018-05-20 update ,android 7.0, HDMI & LCD5.0 |
Baidu cloud : https://pan.baidu.com/s/1O3PsI73WmFFvhxMmzEscIQ
| 2017-05-11 update ,android 6.0 |
HDMI-Version
Baidu Cloud: https://pan.baidu.com/s/1bHWhlW
MD5: f85281213b9c5b88008a487dd1b6963c
LCD-Version
Baidu Cloud: https://pan.baidu.com/s/1kVJVPGV
MD5: be27e4eced96d3de81d46e512fd978eb
¶ Linux
¶ Ubuntu
| 2020-08-26 update, Ubuntu Mate 18.04, Ubuntu Server 16.04, base on kernel 4.4 |
| 2020-04-21 update, Ubuntu 16.06 Mate Desktop, Ubuntu 16.06 Server and Ubuntu 18.04 Mate Desktop, base on kernel 4.4 |
Baidu cloud: https://pan.baidu.com/s/18XH8_uusUGBusbp4xw4txQ PinCode：36R0
| 2018-11-02 update, BPI-M64 Ubuntu 16.04 Desktp |
Baidu Drive : https://pan.baidu.com/s/1XhOJBQtPkhvidjgipFNdzg
Md5 : 3564f0d3de9936aa26b93eaf027703a0
| 2018-11-02 update,BPI-M64 Ubuntu 16.04 AARCH64 Kernel 3.10 |
Baidu Drive : https://pan.baidu.com/s/1_ZTDCuL9QZf6qrqaE4gbgQ
Md5 : 7422e02daa01bff6de808490e89b436e
| 2018-11-02 update,BPI-M64 Ubuntu 16.04 AARCH64 Kernel 4.4 |
Baidu Drive : https://pan.baidu.com/s/1JmKQGRKvJ9DwL_ij0K79FA
Md5 : ea9bba6ab7fc78f7b8478bfd013a9b50
Forum pthread: http://forum.banana-pi.org/t/banana-pi-bpi-m64-new-images-ubuntu16-04-desktop-aarch64-release-2018-11-1/7159/1
| 2018-4-17 update Ubuntu 16.04.4 with linux kernel 4.4.89 |
MD5: 4b7e163d260e58a39ba8905e7ed39943
Forum pthread: http://forum.banana-pi.org/t/bpi-r18-avs-new-image-ubuntu-16-04-4-with-linux-kernel-4-4-89-2018-4-17/5435
| 2018-09-18 This release is for banana pi M64 board which is based on Allwinner A64, We release three Images, Ubuntu 16.04 Desktop & Android is based on kernel 3.10. |
Baidu Drive : https://pan.baidu.com/s/1wANJ4SwfNwKtBcd02WcbWA
| 2018-08-17 update Ubuntu 16.04 Server kernel 3.10.105 |
Baidu Drive : https://pan.baidu.com/s/1HcrR8NsL9_1RwbZNa7uwmg
Forum pthread: http://forum.banana-pi.org/t/bananapi-bpi-m64-a64-new-image-android-8-1-ubuntu-release-2018-08-17/6531
| 2017-08-14 update based on ubuntu 16.04.3 LTS Mate Desktop (64-bit),support BPI-M64 kernel 3.10.105 |
Baidu cloud: http://pan.baidu.com/s/1pLkbdTT
MD5 : ae34baa840874276858d936a7ca85c4f
¶ Debian
| 2022-09-07 Armbian_22.11.0-trunk_Bananapim64_bullseye_edge_5.19.7_xfce_desktop.img |
Baidu Cloud: https://pan.baidu.com/s/1vFR9sUR0FhWgS1pemk9lTg?pwd=ina6 (pincode: ina6)
| 2018-11-2 update ,M64 Debian 9.5 AARCH64 Kernel 3.10 |
Baidu Drive : https://pan.baidu.com/s/1DJd7CGAT0NiijKfOBq9J4Q
Md5 : 71fe25c1922c7f9ef81bb88e0f544de6
| 2018-11-2 update ,M64 Debian 9.5 AARCH64 Kernel 4.4 |
Baidu Drive : https://pan.baidu.com/s/1sOR6WFz2U9MT0ltq6zYnJA
Md5 : f3c2391b0232178018fda7ebfd64b14c
Forum pthread: http://forum.banana-pi.org/t/banana-pi-bpi-m64-new-images-debian-9-5-aarch64-release-2018-11-02/7166
| 2017-08-13 debian 8.9 jessie Mate Desktop (64-bit),support BPI-M64 kernel 3.10.105 |
Baidu cloud: http://pan.baidu.com/s/1eSeTQeA
MD5: 9ddf067457ebaf193de63c5c7141446a
¶ Third part image
¶ Raspbian
| 2020-08-26 update, Raspbian Stretch, base on kernel 4.4 |
| 2018-11-06 update, BPI-M64 Raspbian 9.4 Kernel 3.10 |
Baidu Drive : https://pan.baidu.com/s/1MlIzQRpjs_soBDXOKf8NAw
Md5 : e321c6dbb096a0348fceb9d4a0b6c210
| 2018-11-06 update, BPI-M64 Raspbian 9.4 Kernel 4.4 |
Baidu Drive : https://pan.baidu.com/s/1Bu-xiqiYsnau_xZp8-QEkw
Md5 : 1d4f00680e6869e2c4e66e205e61d93d
¶ Armbian
| Armbian_23.02.0-trunk_BananaPi_M64_jammy.img |
Google Drive: https://drive.google.com/drive/folders/1VpvVkYMqgmSnmfKXQSrEY2B6wRa-cggL?usp=share_link
Discuss on forum: https://forum.banana-pi.org/t/banana-pi-bpi-m64-new-armbian-image/15161
| 2022-09-07 Armbian_22.11.0-trunk_Bananapim64_jammy_edge_5.19.7_xfce_desktop.img |
Baidu Cloud: https://pan.baidu.com/s/1uOex7pm2tPhfJ47hoXIuGA?pwd=7hms PinCode: 7hms
| Armbian Image is base on Linux Mainline kernel |
¶ Fedora Linux
| BPI-M64 fedora image download(not support desktop): fedora 31 with grub (u-boot-2019.07 + kernel 5.3.0) |
¶ Manjaro
| 2019-01-15 update,BananaPi BPI-M64 Support Run Manjaro AArch64 System |
Baidu Drive: https://pan.baidu.com/s/18drwPBFKAzf4lFe6IPjaPA
Bpi Ftp Server: https://dev.banana-pi.org.cn/Image/BPI-M64/Manjaro/
Md5 : 8c9964fbd80836228c72fa205eb62f78
Username: manjaro/root
Password: bananapi
¶ FreeBSD
| FreeBSD on Allwinner (sunxi) systems for banana pi |
Banana pi as the official partner of Allwinner , must banana pi product use Allwinner chip design . such as A20/A31S/H3/H2+/A64/A83T , and FreeBSD have support many Allwinner . so easy to use on banana pi board.
-
Allwinner A20 (sun7i), a dual-core Cortex-A7 BPI-M1/BPI-M1+/BPI-R1
-
Allwinner A31 and A31s (sun6i), a quad-core Cortex-A7 BPI-M2
-
Allwinner A64 (sun50i), a quad-core Cortex-A53 BPI-M64
-
Allwinner A83T (sun8i), an octa-core Cortex-A7 BPI-M3
-
Allwinner H3 (sun8i), a quad-core Cortex-A7 BPI-M2+/BPI-M2+ EDU/
¶ Clonezilla
| Clonezilla support arm64 (Banana Pi BPI-M64),Thanks to Steven Shiau (NCHC Free Software Labs in Taiwan) & https://clonezilla.org/ , this image just for test . |
¶ Others
| Others image ,you can download at forum ： http://forum.banana-pi.org/c/BPI-M64/M63image |
¶ Win 10 IoT
| 2017-1-13 updae Win10 IoT Core beta0.2 |
Baidu cloud : http://pan.baidu.com/s/1c2ce100
| Win10 IoT Core 10586 beta0.1 |
Download link : https://drive.google.com/open?id=0B_YnvHgh2rwjODJOSS1TdkRvcEk
Baidu link : http://pan.baidu.com/s/1dEQyGgD
MD5: 1c09118cd45bf0c3b61d1846710a3649
¶ FAQ
| How-to use ubuntu system to support lcd7**? |
-
"vi /media/pi/BPI-BOOT/bananapi/bpi-m64/linux/lcd7/uEnv.txt"
-
If you use HC070TG lcd7 screen, change "touch=gt9xxnew_ts" But if you use S070WV20 lcd7 screen, you don’t need to change.
-
"bpi-bootsel /usr/lib/u-boot/bananapi/bpi-m64/u-boot-with-dtb-bpi-m64-lcd7-8k.img.gz"
-
reboot
¶ Easy to buy
| OEM&ODM, please contact: [email protected] |
