Banana Pi BPI-M7 with Rockchip RK3588, 8/16/32G,RAM 64/128G eMMC,wifi6 support . 2x2.5G port ,1xHDMIout ,2x USB3.0,2xTYPE-C,2x MIPI CSI interface and 1x MIPI DSI interface, 1x M.2 KEY M interface,40 PIN GPIO ,Mini size just 92x62mm.
Rockchip RK3588 design Banana Pi BPI-M7 AI SBC design Rockchip RK3576 deisgn Banana Pi BPI-M5 Pro AI SBC design Rockchip RK3588 design Banana Pi BPI-AIM7 Core board fully compatible with Jetson Nano/TX2 NX Rockchip RK3588 design Banana Pi BPI-W3 LGA core board kit Rockchip RK3588 design Banana Pi BPI-LM7 LGA core board Rockchip RK3588 design BPI-RK3588 core board and kit Introduction Core boards |
Generally, BPI-M7 is applied for various applications,such as, ARM PCs, edge computing, cloud servers, AI, cloud computing, virtual/augmented reality, blockchain, smart NVRs and more.
8K video encoding/decoding support
Abundant interfaces support
Dual 2.5G Ethernet support
WiFi 6 support
BT 5 support
Multiple video outputs support
Multiple operating systems support
Generally, BPI-M7 is applied for various applications,such as, ARM PCs, edge computing, cloud servers, AI, cloud computing, virtual/augmented reality, blockchain, smart NVRs and more.
With the powerful ecosystem and variety of extension modules, Banana Pi can help users easily go from ideas to prototype to mass production, making it an ideal creative platform for makers, dreamers and hobbyists. |
SoC: Rockchip RK3588
CPU: 4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz, 8nm
GPU: ARM Mali-G610 MP4
NPU: Up to 6 TOPS (INT8), supports INT4/INT8/INT16 mixed computing
VPU/Codec:
Hardware Decode: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
Hardware Encode: 8K@30fps H.265 / H.264
RAM: 8GB/16GB/32GB (max 32GB) 64bit LPDDR4/LPDDR4x, default 8GB LPDDR4x
Storage: 64GB/128GB eMMC, default 64GB eMMC
Operating Voltage: Wide input voltage, 5V to 20V (±5% tolerance)
Operating temperature: 0°C ~ 80°C
OS:
Official: Android 12.0, Debian 11, Buildroot
3rd party: Armbian, Ubuntu 20.04, Ubuntu 22.04, Kylin OS
PCB: 12-layer
Weight: 46.6g
Size: 92mm × 62mm
There are two identical Type-C ports on Sige7,but only the Type-C (PD Only) port is for power input. |
HardWare Specification of Banana Pi BPI-M7 | |
---|---|
SOC |
RockChip RK3588 |
CPU |
RK3588 Quad-Core Cortex-A76@ 2.4GHz+Quad-CoreCortex-A55@ 1.8GHz,8nm process |
GPU |
GPU Mali-G610 MP4 (4x256KB L2 Cache) Supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1 |
NPU |
6 TOPS@INT8(3 NPU core) |
Supports INT4/INT8/INT16 mixed computing |
|
Supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN, Android NN, etc |
|
VPU/Codec |
Hardware Decode: 8K@60fps H.265/VP9/AVS2、 8K@30fps H.264 AVC/MVC、 4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8 |
Hardware Encode:8K@30fps H.265 / H.264 |
|
ISP |
Integrated 48MP ISP with HDR&3DNR |
RAM |
8GB/16GB/32GB(max 32GB )64bit LPDDR4/LPDDR4x,default 8GB LPDDR4x |
Flash |
32GB/64GB/128GB eMMC,default 64GB eMMC,Supports MicroSD card expansion |
PCIe |
1x M.2 Key M (PCIe 3.0 4-lanes). Expandable SSD support for 2280/2260/2242/2230 M.2 SSD cards, default 2280 |
Networking |
2x 2.5G Ethernet |
Onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5 (AP6275P) |
|
Video Out |
1x HDMI 2.1, supports 8K@60fps |
1x MIPI DSI up to 4K@60fps |
|
1x DP 1.4 up to 8K@30fps |
|
Video In |
2x 2-lane MIPI CSI, up to 2.5Gbps per lane |
Audio |
1x HDMI audio out |
1x HP audio out |
|
1x Type-C 3.1 (DP1.4) audio out |
|
USB |
1x USB 3.0 (USB 3.1 Gen 1), equivalent to USB 3.2 Gen 1/USB 3.0, up to 5Gbps |
1x USB Type-C 3.1(DP1.4/OTG) |
|
1x USB 2.0 High(480Mbps)/Full(12Mbps)/Low-Speed(1.5Mbps) modes |
|
40-pin |
Fully compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules |
Supports UART/SPI/I2C/I2S/PWM/ADC/5V Power/3.3V Power |
|
Other |
1x 5V fan interface |
1x battery connector for low power RTC chip HYM8563TS |
|
2x LEDs - blue LED blinks on system start, red LED user controllable |
|
Power Input |
USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A |
Buttons |
1x PWRON button for sleep/wake,1x Reset button for reboot,1x Maskrom button for maskrom burn-in mode |
OS Support |
Official: :Android 12.0,Debian11,Buildroot |
3rd Party:Armbian,Ubuntu 20.04,Ubuntu22.04,Kylin OS |
|
Dimensions |
92 mm x 62mm |
Operating temperature |
0℃ ~ 80℃ |
40 GPIO define of Banana Pi BPI-M7 | |||||
---|---|---|---|---|---|
GPIO number |
function |
Pin |
Pin |
function |
GPIO number |
+3.3V |
1 |
2 |
+5.0V |
||
139 |
I2S1_SDO2_M0 / I2C7_SDA_M3 / UART8_CTSN_M0 / PWM15_IR_M1 / CAN1_TX_M1 / GPIO4_B3 / |
3 |
4 |
+5.0V |
|
138 |
I2S1_SDO1_M0 / I2C7_SCL_M3 / UART8_RTSN_M0 / PWM14_M1 / CAN1_RX_M1 / GPIO4_B2 |
5 |
6 |
GND |
|
115 |
SPI1_CS1_M1 / I2C8_SDA_M4 / UART7_CTSN_M1 / PWM15_IR_M0 / GPIO3_C3 |
7 |
8 |
GPIO0_B5 / UART2_TX_M0/ I2C1_SCL_M0 / I2S1_MCLK_M1 / JTAG_TCK_M2 |
13 |
GND |
9 |
10 |
GPIO0_B6 /UART2_RX_M0/ I2C1_SDA_M0 / I2S1_SCLK_M1 / JTAG_TMS_M2 |
14 |
|
113 |
SPI1_CLK_M1 / UART7_RX_M1 / GPIO3_C1 |
11 |
12 |
GPIO3_B5 / CAN1_RX_M0 / PWM12_M0 /UART3_TX_M1 / I2S2_SCLK_M1 |
109 |
111 |
SPI1_MOSI_M1 / I2C3_SCL_M1 / GPIO3_B7 |
13 |
14 |
GND |
|
112 |
SPI1_MISO_M1 / I2C3_SDA_M1 / UART7_TX_M1 / GPIO3_C0 |
15 |
16 |
GPIO3_A4 / SPI4_CS1_M1 / I2S3_SDI / UART8_RTSN_M1 |
100 |
+3.3V |
17 |
18 |
GPIO4_C4 / PWM5_M2 / SPI3_MISO_M0 |
148 |
|
42 |
SPI0_MOSI_M2 / UART4_RX_M2 / GPIO1_B2 |
19 |
20 |
GND |
|
41 |
SPI0_MISO_M2 / GPIO1_B1 |
21 |
22 |
SARADC_IN4 |
|
43 |
SPI0_CLK_M2 / UART4_TX_M2 / GPIO1_B3 |
23 |
24 |
GPIO1_B4 / UART7_RX_M2 /SPI0_CS0_M2 |
44 |
GND |
25 |
26 |
GPIO1_B5 / UART7_TX_M2 / SPI0_CS1_M2 |
45 |
|
150 |
SPI3_CLK_M0 / I2C0_SDA_M1 / PWM7_IR_M3 / GPIO4_C6 |
27 |
28 |
GPIO4_C5 / PWM6_M2 / I2C0_SCL_M1 / |
|
63 |
UART1_CTSN_M1 / PWM15_IR_M3 / GPIO1_D7 |
29 |
30 |
GND |
|
47 |
SPDIF_TX_M0 / UART1_RX_M1 / PWM13_M2 / GPIO1_B7 |
31 |
32 |
GPIO3_C2 / PWM14_M0 / UART7_RTSN_M1 / I2C8_SCL_M4 / SPI1_CS0_M1 |
114 |
103 |
PWM8_M0 / GPIO3_A7 |
33 |
34 |
GND |
|
110 |
I2S2_LRCK_M1 / UART3_RX_M1 / PWM13_M0 / CAN1_TX_M0 / GPIO3_B6 |
35 |
36 |
GPIO3_B1 / PWM2_M1 / UART2_TX_M2 |
105 |
0 |
REFCLK_OUT / GPIO0_A0 |
37 |
38 |
GPIO3_B2 /PWM3_IR_M1 / UART2_RX_M2 / I2S2_SDI_M1 |
106 |
GND |
39 |
40 |
GPIO3_B3 / UART2_RTSN / I2S2_SDO_M1 |
107 |
0.5mm FPC connector
MIPI CSI0 define of Banana Pi BPI-M7 | ||
---|---|---|
Pin |
MIPI-CSI |
description |
1,4,7,10,13,16,24,25,26,27,32,33 |
GND |
Power Ground & Signal Ground |
2 |
MIPI_CSI0_RX_D3N MIPI RX |
Lane3 iuput N |
3 |
MIPI_CSI0_RX_D3P MIPI RX |
Lane3 iuput P |
5 |
MIPI_CSI0_RX_D2N MIPI RX |
Lane2 iuput N |
6 |
MIPI_CSI0_RX_D2P MIPI RX |
Lane2 iuput P |
8 |
MIPI_CSI0_RX_CLK1N MIPI RX |
Clock iuput N |
9 |
MIPI_CSI0_RX_CLK1P MIPI RX |
Clock iuput P |
11 |
MIPI_CSI0_RX_D1N MIPI RX |
Lane1 iuput N |
12 |
MIPI_CSI0_RX_D1P MIPI RX |
Lane1 iuput P |
14 |
MIPI_CSI0_RX_D0N MIPI RX |
Lane0 iuput N |
15 |
MIPI_CSI0_RX_D0P MIPI RX |
Lane0 iuput P |
17 |
MIPI_CSI0_RX_CLK0N MIPI RX |
Clock iuput N |
18 |
MIPI_CSI0_RX_CLK0P MIPI RX |
Clock iuput P |
19 |
MIPI_VSYNC |
|
20 |
MIPI_CAM3_CLKOUT |
1.8V, CLock ouput for Sensor |
21 |
MIPI_HSYNC |
|
22 |
MIPI_CAM1_CLKOUT |
1.8V, CLock ouput for Sensor |
23 |
MIPI_CSI0_PDN0_H(GPIO1_B0) |
1.8V, GPIO |
24 |
I2C3_SCL_M0_MIPI |
1.8V, I2C Clock, pulled up to 1.8V with 2.2K on Sige7 |
25 |
I2C3_SDA_M0_MIPI |
1.8V, I2C Clock, pulled up to 1.8V with 2.2K on Sige7 |
26 |
MIPI_CSI0_PDN1_H(GPIO1_A7) |
1.8V, GPIO |
27 |
CM_RST_L(GPIO4_A0) |
3.3V, GPIO |
28,29 |
VCC_RX |
3.3V Power ouput |
30,31 |
VCC_5V0 |
5V Power ouput |
0.5mm FPC connector
MIPI CSI1 GPIO define of Banana Pi BPI-M7 | ||
---|---|---|
Pin |
MIPI-CSI |
description |
1,4,7,10,13,16,24,25,26,27,32,33 |
GND |
Power Ground & Signal Ground |
2 |
MIPI_CSI1_RX_D3N MIPI RX |
Lane3 iuput N |
3 |
MIPI_CSI1_RX_D3P MIPI RX |
Lane3 iuput P |
5 |
MIPI_CSI1_RX_D2N MIPI RX |
Lane2 iuput N |
6 |
MIPI_CSI1_RX_D2P MIPI RX |
Lane2 iuput P |
8 |
MIPI_CSI1_RX_CLK1N MIPI RX |
Clock iuput N |
9 |
MIPI_CSI1_RX_CLK1P MIPI RX |
Clock iuput P |
11 |
MIPI_CSI1_RX_D1N MIPI RX |
Lane1 iuput N |
12 |
MIPI_CSI1_RX_D1P MIPI RX |
Lane1 iuput P |
14 |
MIPI_CSI1_RX_D0N MIPI RX |
Lane0 iuput N |
15 |
MIPI_CSI1_RX_D0P MIPI RX |
Lane0 iuput P |
17 |
MIPI_CSI1_RX_CLK0N MIPI RX |
Clock iuput N |
18 |
MIPI_CSI1_RX_CLK0P MIPI RX |
Clock iuput P |
19 |
MIPI_VSYNC |
|
20 |
MIPI_CAM3_CLKOUT / GPIO1_B7 |
1.8V, CLock ouput for Sensor / GPIO |
21 |
MIPI_HSYNC |
|
22 |
MIPI_CAM0_CLKOUT |
1.8V, CLock ouput for Sensor |
23 |
MIPI_CSI1_PDN0_H(GPIO1_B0) |
1.8V, GPIO |
24 |
I2C3_SCL_M0_MIPI |
1.8V, I2C Clock, pulled up to 1.8V with 2.2K on Sige7 |
25 |
I2C3_SDA_M0_MIPI |
1.8V, I2C Clock, pulled up to 1.8V with 2.2K on Sige7 |
26 |
MIPI_CSI0_PDN1_H(GPIO1_A7) |
1.8V, GPIO |
27 |
CM2_RST_L(GPIO4_A0) |
3.3V, GPIO |
28,29 |
VCC_RX |
3.3V Power ouput |
30,31 |
VCC_5V0 |
5V Power ouput |
0.5mm FPC connector (J23)
MIPI CDI GPIO define of Banana Pi BPI-M7 | ||
---|---|---|
Pin |
MIPI-DSI |
description |
1,4,7,10,13,16,27,33,34 |
GND |
Power and Signal Ground |
2 |
MIPI_DPHY1_TX_D0N MIPI1 |
TX Lane0 ouput N |
3 |
MIPI_DPHY1_TX_D0P MIPI1 |
TX Lane0 ouput P |
5 |
MIPI_DPHY1_TX_D1N MIPI1 |
TX Lane1 ouput N |
6 |
MIPI_DPHY1_TX_D1P MIPI1 |
TX Lane1 ouput P |
8 |
MIPI_DPHY1_TX_CLKN MIPI1 |
TX Clock ouput N |
9 |
MIPI_DPHY1_TX_CLKP MIPI1 |
TX Clock ouput P |
11 |
MIPI_DPHY1_TX_D2N MIPI1 |
TX Lane2 ouput N |
12 |
MIPI_DPHY1_TX_D2P MIPI1 |
TX Lane2 ouput P |
14 |
MIPI_DPHY1_TX_D3N MIPI1 |
TX Lane3 ouput N |
15 |
MIPI_DPHY1_TX_D3P MIPI1 |
TX Lane3 ouput P |
17 |
LCD_PWM (PWM2_M2/GPIO4_C2) |
1.8V, GPIO/PWM |
18,19 |
VCC3V3_LCD |
3.3V Power ouput |
20 |
LCD_RESET (GPIO2_C1) |
1.8V, GPIO |
21 |
/NC No Connection |
|
22 |
LCD_BL_EN (GPIO3_A1) |
3.3V, GPIO |
23 |
I2C6_SCL_M0 |
1.8V, I2C Clock, pulled up to 1.8V with 2.2K on Sige7 |
24 |
I2C6_SDA_M0 |
1.8V, I2C Data, pulled up to 1.8V with 2.2K on Sige7 |
25 |
TP_INT (GPIO0_D3) |
1.8V, GPIO |
26 |
TP_RST (GPIO0_C6) |
1.8V, GPIO |
28,29 |
VCC5V0_LCD |
5V Power ouput |
31,32 |
VCC_1V8 |
1.8V Power ouput |
0.8mm connector(CN32)
Fan GPIO define of Banana Pi BPI-M7 | ||
---|---|---|
1 |
VCC_5V0 |
5V Power ouput |
2 |
GND |
GND |
3 |
PWM |
PWM cotrol |

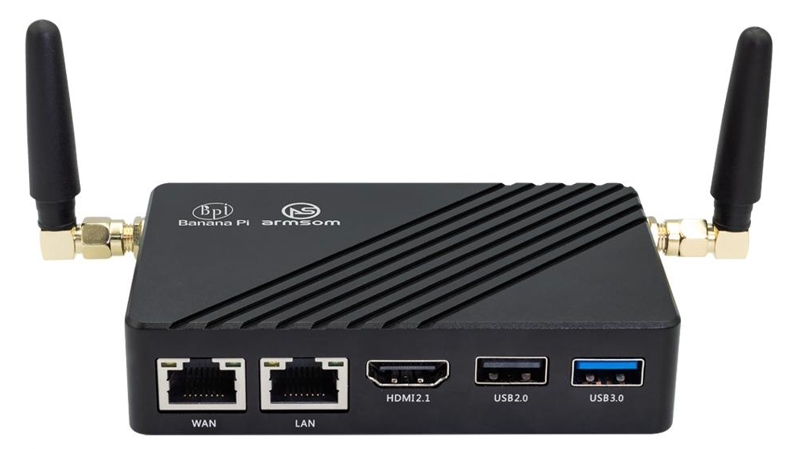

Banana Pi BPI-M7 RK3588 SBC Case installation instructions : https://www.youtube.com/watch?v=BC4aT8gFSso |
BPI-M7 RK3588 open source SBC Housing complete installation video : https://www.youtube.com/watch?v=bz0q__CHOV8 |
Easy to buy:
SINOVOIP Aliexpress Shop: https://www.aliexpress.com/item/3256806710600835.html?gatewayAdapt=4itemAdapt
Bipai Aliexpress Shop: https://www.aliexpress.com/item/3256806710610210.html?gatewayAdapt=4itemAdapt
Taobao Shop: https://item.taobao.com/item.htm?spm=a1z10.5-c-s.w4002-25059194413.15.58975332Dwfq1z&id=788159474877
Bananna Pi BPI-M7 10 HD screen test https://www.youtube.com/watch?v=lR-c1Dw8qF0 |
Easy to buy:
SINOVOIP Aliexpress Shop: https://www.aliexpress.com/item/3256806704464561.html?gatewayAdapt=4itemAdapt
Bipai Aliexpress Shop: https://www.aliexpress.com/item/3256806704337207.html?gatewayAdapt=4itemAdapt
Taobao Shop: https://item.taobao.com/item.htm?ft=t&id=787591056231
ITEM | SPECIFICATION/CONDITION |
---|---|
Bearing Type |
Hydraulic |
Rating Voltage |
DC 5V |
Rated Voltage |
2.5~5.5 VDC |
Start-Up Voltage |
2.5 VDC (Temp 25°C) |
Rated Current |
310 mA (Max 340 mA) |
Rated Speed |
10000 RPM ±10% |
Air Flow |
2.0 CFM (Min 1.80 CFM) |
0.056 m³/MIN (Min 0.051 m³/MIN) |
|
Static Pressure |
26.75 mm-H2O (Min 21.67 mm-H2O) |
1.05 inch-H2O (Min 0.85 inch-H2O) |
|
Noise Level |
54 dB(A) (Max 56.5 dB(A)) |
Protection Type |
|
Resistance Protected |
YES |
Reverse Connect Protection |
|
Auto Start |
NO |
Tachometer Output |
|
Lock Rotor Alarm Output |
|
Pulse Width Modulation |
YES |
Signal Feedback |
|
Thermal Speed Controlled |
NO |
Connection Lead Type |
UL10064 AWG#32, 105±5mm outside the frame, Red (Positive), Black (Negative), Blue (PWM Speed Control) |
Housing |
JST 04SUR-32S OR EQUIVALENT (Blue, Black, Red) |
Label |
DC5V-0.45A |
Pin Terminal |
NO |
BPI-M7 github source code: https://github.com/ArmSoM/armsom-build |
BPI-M7 kernel code: https://github.com/ArmSoM/linux-rockchip |
BPI-M7 uboot code : https://github.com/ArmSoM/u-boot |
openwrt(istoreos) : https://github.com/istoreos/istoreos |
RKNN-LLM Code repository: https://github.com/ArmSoM/rknn-llm |
BPI-M7 Component diagram |
Baidu Cloud: https://pan.baidu.com/s/1Klh1xt_2Qkd8ZKZ6EIbEbg?pwd=8888 (pincode:8888)
BPI-M7 2D CAD |
Baidu Cloud: https://pan.baidu.com/s/1spHZGhDMC4TW9G9HTei7rA?pwd=8888 (pincode:8888)
BPI-M7 Schematic |
Baidu Cloud: https://pan.baidu.com/s/17_2BTwBnIsmeCV5V7xNXRA?pwd=8888 (pincode:8888)
Rockchip RK3588 datasheet : |
Baidu cloud: https://pan.baidu.com/s/1GeskKfLFwjgmz0pgt7sICg?pwd=8888 (pincode:8888)
BPI-M7 GPU and CPU performance test: https://www.youtube.com/watch?v=C4ofIZLixpM |
BPI-M7 Rockchip RK3588 open source SBC run istoreos demo: https://www.youtube.com/watch?v=I2SSCT1Xj_U |
BPI-M7 SBC ubuntu20.04 Linux system adaptation is complete: https://www.youtube.com/watch?v=60XQlSF3_20&t=10s |
BPI-M7 how o burn image video : https://www.youtube.com/watch?v=80RULZRRM58 |
Banana Pi BPI-M7 vs. Raspberry Pi 5: The Ultimate Single-Board Battle – Who Reigns Supreme? https://youtube.com/watch?v=Cw91DFgMFQQ |
How to use RKLLM AI function: Banana Pi BPI-M7 RKLLM Development |
Banana Pi BPI-M7 review : https://taoofmac.com/space/blog/2024/06/16/1800 |
Ready for a game-changer in SBCs? BPI-M7 might be it.This SBC Puts Raspberry Pi 5 to Shame https://itsfoss.com/arosom-sige7-review/ |
Android 12 image |
Baidu Cloud: https://pan.baidu.com/s/1EmZ6jG7ufHKkadB4vcFwjw?pwd=8888 (pincode:8888)
ubuntu-22.04.3-preinstalled-desktop-arm64-bpi-m7_armsom-sige7.img-20240131 |
Baidu Cloud: https://pan.baidu.com/s/1qsXOSuaA14ODvFhetaLGIw?pwd=8888 (pincode:8888)
Account/Password: ubuntu/ubuntu
You need to connect to HDMI and create it yourself after startup.
ubuntu-22.04.3-preinstalled-server-arm64-bpi-m7_armsom-sige7.img-20240131 |
Baidu Cloud: https://pan.baidu.com/s/1RlTTgdbZdv5mqCy7iWi8Yw?pwd=8888 (pincode:8888)
Account/Password: ubuntu/ubuntu
joshua-ubuntu-rockchip-download: https://joshua-riek.github.io/ubuntu-rockchip-download/boards/armsom-sige7.html
BPI-M7_armsom-sige7-debian-bullseye-xfce4-arm64-20240129 |
Baidu Cloud: https://pan.baidu.com/s/1ZLoUfPHYP9GF7aJ5uGEpcw?pwd=8888 (pincode:8888)
Armbian official https://www.armbian.com/bananapi-m7/ (Linux 6.1.y & 6.8.y) (Bookworm CLI, minimal, Jammy Gnome, Cinammon, i3, KDE Neon, KDE Plasma) |
Armbian-unofficial_24.5.0-trunk_BPI-M7_Armsom-sige7_jammy_legacy_5.10.160_gnome_desktop.img |
Baidu cloud: https://pan.baidu.com/s/1s4OqPrIIL2SR5df06cNE2g?pwd=8888 (pincode:8888)
NOTE:Armsom armbian image
SINOVOIP Aliexpressshop: https://www.aliexpress.com/item/1005006504845998.html?spm |
Bipai Aliexpress shop: https://www.aliexpress.com/item/1005006504967822.html?spm |
Taobao shop: https://item.taobao.com/item.htm?id=765236561383&spm=a1z10.5-c-s.w4002-25059194413.11.76fe5332n69l2T |
OEM&ODM, please contact: [email protected] |
Easy to Buy BPI-M7 Aluminum case
SINOVOIP Aliexpressshop: https://www.aliexpress.com/item/3256806710600835.html?spm=5261.promotion_single_products.table.1.540015d1B8IueK&gatewayAdapt=4itemAdapt |
Bipai Aliexpress shop: https://www.aliexpress.com/item/3256806710610210.html?gatewayAdapt=4itemAdapt |
Taobao shop: |
Easy to Buy BPI-M7 Display 10 HD
SINOVOIP Aliexpress Shop: https://www.aliexpress.com/item/3256806704464561.html?spm=5261.promotion_single_products.table.1.59f615d18cx22j&gatewayAdapt=4itemAdapt |
